US$ 0.2 - 1
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KND double push button waterproof switch
Model Number:
double push button waterproof switch XB2-BL
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Flat Momentary Push Button Switch XB2-BAUS$ 0.3 - 1MOQ: 10 Pieces -
Rotary Switch,2 or 3 Position Selector Key Switch B2-BG.copper or Silver ContactUS$ 0.2 - 1MOQ: 10 Pieces
-
Resistance-type, 220v 110v 24v 6.3v 22mm Led Button Indicator B2-BVUS$ 0.2 - 10MOQ: 10 Pieces
-
Flat Momentary 6.3v 24V 110V 220V 380V Led Push Button Switch XB2-EWUS$ 0.2 - 1MOQ: 10 Pieces
-
Resistance-type, 220v Led Button Indicator B2-BVUS$ 0.2 - 10MOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
KND double push button waterproof switch
Model Number
double push button waterproof switch XB2-BL
Protection Level
IP40,IP65
Max. Current
15A
Max. Voltage
380V
Specifications
1. double push button waterproof switch2. CCC,CE ,ISO9001:2008,IAF,UKAS
3. certified as Yellow Supplier by CHINT
Description

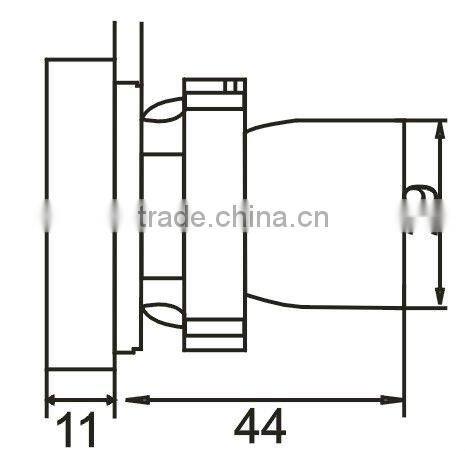

These are our company's double push button waterproof switch models in the picture , you can add X before the double push button waterproof switch models. If you want one double push button waterproof switch for sample ,please contact us .thank you.
| Technical Parameters | |||||
| Nominal insulation voltage Ui(V) | 380V | ||||
| Rated current lth(A) | 10A | ||||
| Rated operational voltage ue(v) | 380 | 250 | 240 | 125 | |
| Rated operationalcurrent le(A) | AC-15 | 2.5 | 3 | ||
| DC-13 | 0.27 | 0.55 | |||
| Environment Features | |
| Match a standard | CB14048 5-2008,IEC 60947-5-1 |
| Ambient temperature | -25°c- +55°c |
| Vibration resistance | ≤ 500HZ , amplitude about 1.0mm |
| Shock resistance | ≥10g |
| Protection level | IP40,IP65 |
| Contact Features | |
| Contact action | NO or NC |
| Contact resistance | ≤ 50mQ |
| Mechanical life | ≥1000000 |
| Electrical durability | AC ≥100000 |
| Short-circuit protection | RT16-10A |
| Elucidation | Contact Type | Reference | ||
| | | 1NO+1NC | B2-BL8325 | |
| 1NO+1NC | B2-BL8425 | ||
| 1 The finger of comfort press to press | |||||
| position and switch to turn peration | ||||||
| 2 The function identify | ||||||
| 3 The auto aonnect ground | ||||||
| 4 Defend the finger get an electric | ||||||
| shock a design | ||||||
| Plate chrome metals a head and install a base | ||||||
| The quakeproof bolt carry son | ||||||
| Hard ,credibility ,as long as | ||||||
| 3000000time machine life span | ||||||
| As long as 50000 hours of the service life | ||||||
| of the LED indicator | ||||||
| ||||||
| Button head -touch some base a construction | ||||||
| The button head hold antomatic is in open the | ||||||
| bore | ||||||
| The button head revolve certain angle,card go | ||||||
| into touch some base | ||||||
| 2metal bolt fix quake proof | ||||||
| The open type connect line to carry and have | ||||||
| never need to prepare loose bolt | ||||||
| Electricity function | ||||||
| Most can pack 1-6 pay to touch some mold piece | ||||||
Our products have waterproof function
Our push button switch use the fireproof material which can protact it from burning
Our push button switch screw is done by environmental protection plating,after the special technology,it is better to stand wear and tear
The push button switch contact is done by silver alloy ,which is riveting full-automatic and the working life is more than one hundred thousand times.
