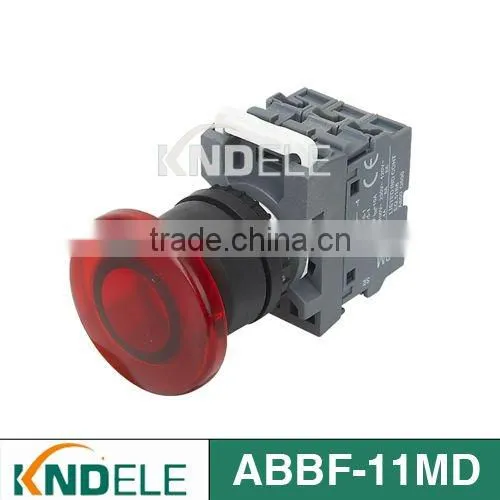

22mm LED lamp mushroom push button switch silver contacts ABBF-11MD

Specifications

22mm LED lamp mushroom push button switch
IP65
This series includes a complete range of push button switch

Description

           Zhejiang Kenaida push button CO.,LTD is a professional push button and  indicator manufacturer,Through years of painstaking operation and development , we had own more than 30 series of push button and accessories , and researched 1-2 series of new products.



 Feature

 Easy to Assemble

 22mm, 25mm mounting diameter

 Choice of Plastic or Metallic Bezels

Colour: R G Y B W BL

Please indicate contact request. (Default contact is 1NO+1NC)

This series includes a complete range of push button switch, extended push button, illuminated
push button, maintained push button, Mushroom push button, emergency stop button, selector
switch, key switch, dual push button, and etc.



Application

Used to either close or open an electrical circuit. Used in various applications such as electric power,
telecommunication, machinery, marine, textile, printing, miningindustrial equipment , and etc.



Working Environment

Ambient air temperature -25°c~ +40°c

Altitude: ≤2000m

Relative air humidity: ≤90%

Pollution degree: class 3

Protection degree: IP65



5. Main Technical Parameter

Rated value of switch: AC-15  36V/10A  110V/10A  220V/5A  380V/2.7A  660V/1.8A

                                        DC-13  24V/4A  48V/4A  110V/2A  220V/1A  440V/0.6A

Conventional thermal current:  1th  10A

Contact resistance:  ≤50mΩ

Insulation resistance:  ≥10mΩ

Mechanical durability:

common push-button≥100×104 times;  selector button ≥30×104 times.

                        Key push-button≥5×104 times;  Emergency push-button≥5×104 times.





PACKAGING

1 If the quantity is big enough ,we can do the packaging according to your requirement and in your brand .There is no extra charge for you.

2 Each product is sealed by polythelene bag .It can be always in good condition no matter how long it is in stock.

3 Every box also is sealed by polythelene bag,protecting the goods from water.Even though it is shipped by sea.

4 The goods are using standard packaging.



EXPORTING

1 Our customers are all around the world and the quantity demand is large.After the payment ,the samples will be sent ASAP.

2 After confirming the payment ,the samples will be sent by DHL,UPS,FEDEX and so on .

3 We can help your agent which in china to deal with the exporting process.

4 The goods also can be exproting by your trading company .

5 You can contact our sale department for more details
