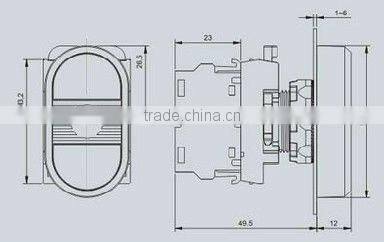

Help CenterDual Electrical Push Button Switch Silver Contacts ABBF-11R
Related Products
-
Emergency Stop Push Button Switch With Big Actuator Silver Contacts ABBF-11ZSNegotiableMOQ: 10 Pieces -
Illuminated Rotary 3 Position Switch Silver Contacts ABBF-11XDNegotiableMOQ: 10 Pieces
-
Flat Momentary Push Button Reset Switch LA42P-11GNegotiableMOQ: 10 Pieces
-
110V Flat Momentary Turn Push Button Switch NO+NC LA42P-11DNegotiableMOQ: 10 Pieces
-
Mushroom Emergency Stop Push Button Switch NO+NC LA42P-11ZSNegotiableMOQ: 10 Pieces
Specifications
double electrical push button switchIP65
This series includes a complete range of push button switch
Description
Zhejiang Kenaida push button CO.,LTD is a professional push button and indicator manufacturer,Through years of painstaking operation and development , we had own more than 30 series of push button and accessories , and researched 1-2 series of new products.
Feature
Easy to Assemble
22mm, 25mm mounting diameter
Choice of Plastic or Metallic Bezels
Colour: R G Y B W BL
Please indicate contact request. (Default contact is 1NO+1NC)

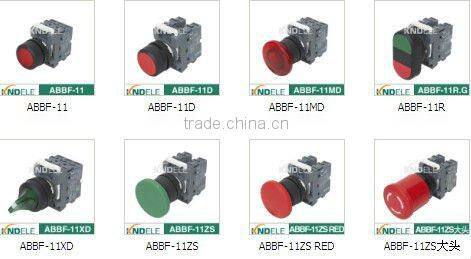

This series includes a complete range of push button switch, extended push button, illuminated
push button, maintained push button, Mushroom push button, emergency stop button, selector
switch, key switch, dual push button, and etc.
Application
Used to either close or open an electrical circuit. Used in various applications such as electric power,
telecommunication, machinery, marine, textile, printing, miningindustrial equipment , and etc.
Working Environment
Ambient air temperature -25°c~ +40°c
Altitude: ≤2000m
Relative air humidity: ≤90%
Pollution degree: class 3
Protection degree: IP65
5. Main Technical Parameter
Rated value of switch: AC-15 36V/10A 110V/10A 220V/5A 380V/2.7A 660V/1.8A
DC-13 24V/4A 48V/4A 110V/2A 220V/1A 440V/0.6A
Conventional thermal current: 1th 10A
Contact resistance: ≤50mΩ
Insulation resistance: ≥10mΩ
Mechanical durability:
common push-button≥100×104 times; selector button ≥30×104 times.
Key push-button≥5×104 times; Emergency push-button≥5×104 times.
PACKAGING
1 If the quantity is big enough ,we can do the packaging according to your requirement and in your brand .There is no extra charge for you.
2 Each product is sealed by polythelene bag .It can be always in good condition no matter how long it is in stock.
3 Every box also is sealed by polythelene bag,protecting the goods from water.Even though it is shipped by sea.
4 The goods are using standard packaging.
EXPORTING
1 Our customers are all around the world and the quantity demand is large.After the payment ,the samples will be sent ASAP.
2 After confirming the payment ,the samples will be sent by DHL,UPS,FEDEX and so on .
3 We can help your agent which in china to deal with the exporting process.
4 The goods also can be exproting by your trading company .
5 You can contact our sale department for more details
