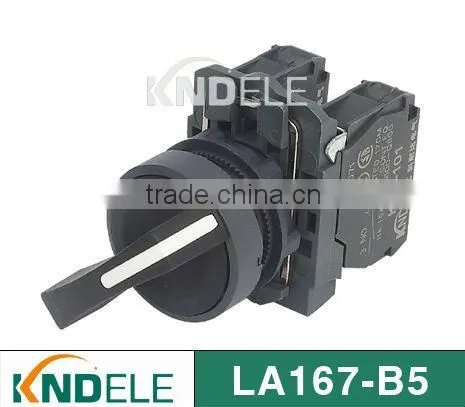

Rotary Switch, 2 or 3 Position Selector Switch With Long Handle,silver Contact XB5-AJ
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KND
Model Number:
XB5-AJ
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mushroom Emergency Stop Push Button Switch. Silver Contact XB5-ASNegotiableMOQ: 10 Pieces -
Cross Switch Monolever Switch Industrial Joystick Controller LA167-B2-PA24NegotiableMOQ: 10 Pieces
-
Cross Switch Monolever Switch Industrial Joystick Controller B2-PA14NegotiableMOQ: 10 Pieces
-
Cross Switch Monolever Switch Industrial Cross Master Switch B2-PA22NegotiableMOQ: 10 Pieces
-
Cross Switch Monolever Switch Industrial Joystick Controller LA167-B2-PA12NegotiableMOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
KND
Model Number
XB5-AJ
Max. Current
Other
Max. Voltage
Other
Mechanical Life
Other
Specifications
1. contact type:NO ,2NO, NO+NC2. plastic series
3. black
4. good quality
Description
These are our company's models in the picture , you can add X before the models.
| Technical Parameters | |||||
| Nominal insulation voltage Ui(V) | 380V | ||||
| Rated current lth(A) | 10A | ||||
| Rated operational voltage ue(v) | 380 | 250 | 240 | 125 | |
| Rated operationalcurrent le(A) | AC-15 | 2.5 | 3 | ||
| DC-13 | 0.27 | 0.55 | |||
| Environment Features | |
| Match a standard | CB14048 5-2008,IEC 60947-5-1 |
| Ambient temperature | -25°c- +55°c |
| Vibration resistance | ≤ 500HZ , amplitude about 1.0mm |
| Shock resistance | ≥10g |
| Protection level | IP40,IP65 |
| Contact Features | |
| Contact action | NO or NC |
| Contact resistance | ≤ 50mQ |
| Mechanical life | ≥1000000 |
| Electrical durability | AC ≥100000 |
| Short-circuit protection | RT16-10A |
| Elucidation | Position | Contact type | Reference | ||
| 2 target | | 1NO | B5-AJ | |
| 1NO+1NC | B5-AJ | ||||
| 2 form return | 1NO | B5-AJ | |||
| 1NO+1NC | B5-AJ | ||||
| 3 target | 2NO | B5-AJ | |||
| 3 form return | 2NO | B5-AJ | |||
| 1 The finger of comfort press to press | |||||
| position and switch to turn peration | ||||||
| 2 The function identify | ||||||
| 3 The auto aonnect ground | ||||||
| 4 Defend the finger get an electric | ||||||
| shock a design | ||||||
| Plate chrome metals a head and install a base | ||||||
| The quakeproof bolt carry son | ||||||
| Hard ,credibility ,as long as | ||||||
| 3000000time machine life span | ||||||
| As long as 50000 hours of the service life | ||||||
| of the LED indicator | ||||||
| ||||||
| Button head -touch some base a construction | ||||||
| The button head hold antomatic is in open the | ||||||
| bore | ||||||
| The button head revolve certain angle,card go | ||||||
| into touch some base | ||||||
| 2metal bolt fix quake proof | ||||||
| The anto connect ground | ||||||
| The open type connect line to carry and have | ||||||
| never need to prepare loose bolt | ||||||
| Electricity function | ||||||
| Most can pack 1-6 pay to touch some mold piece | ||||||
PACKAGING
1 If the quantity is big enough ,we can do the packaging according to your requirement and in your brand .There is no extra charge for you.
2 Each product is sealed by polythelene bag .It can be always in good condition no matter how long it is in stock.
3 Every box also is sealed by polythelene bag,protecting the goods from water.Even though it is shipped by sea.
4 The goods are using standard packaging.
