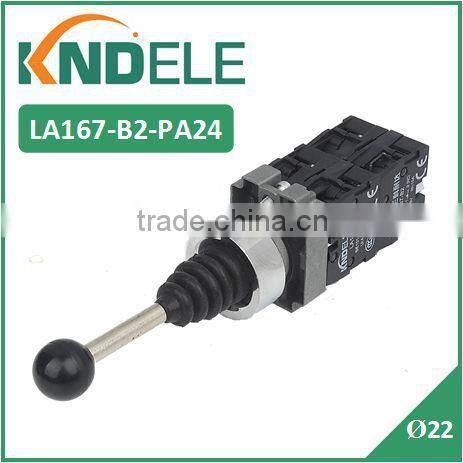

cross switch monolever switch industrial joystick controller LA167-B2-PA24
- 500000 Piece / Pieces per Month
- Shanghai or Ningbo
-
Side press sinking board switch, game controller, light touch switch, handle button 3 * 4 * 3.5, side press smiling face switch
-
Original C&K genuine PTS647SK38SMTR2 LFS 4.5x4.5x3.8-250GF SMT switch
-
Original C&K genuine PTS645SK43SMTR92 LFS 6X6X4.3H 260GF SMT switch
-
Original C&K genuine PTS641TK25SMTR2LFS 6.2x6.2x2.5 five pin 250GF SMT switch
-
USB3.0 two-way switch usb converter
-
GO SWITCH switch
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | KND | Model Number: | LA167-B2-PA24 |
| Protection Level: | IP65 | Max. Current: | 10A | Max. Voltage: | 380V |
Product Description
Packing & Delivery
Packing: standard exporting packaging or according to customer's request
Delivery detail: 7 days after payment or it depands on the quantity
Description
Kenaida cross switch joystick controller LA167-B2-PA24
It is widely used in industry, such as machine tools as well as the automation facility.
Characters
1.Mounting diameter: Ø22mm
2.Position: 4
3.Operation: spring return
4.Certification: CE, CCC
5.Contact: silver
Cutline
| Elucidation | Descripition | Contact Type | Model No. | |
| Lock | 2NO | B2-PA12 | |
| Spring return | 2NO | B2-PA22 | ||
| Lock | 2NO+2NC | B2-PA14 | ||
| Spring return | 2NO+2NC | B2-PA24 | ||
| 4NO | C402 | |||
| 4NO | C4022 | |||
| 2NO | C201 | |||
| 2NO | C2011 | |||
| Key | 4NO | KKD-FW14 | ||
| auto-reset | 2NO | KKD-FW24 | ||
Dimension diagram
Technical Parameters
| Technical Parameters | |||||
| Nominal insulation voltage Ui(V) | 380V | ||||
| Rated current lth(A) | 10A | ||||
| Rated operational voltage ue(v) | 380 | 250 | 240 | 125 | |
| Rated operationalcurrent le(A) | AC-15 | 2.5 | 3 | ||
| DC-13 | 0.27 | 0.55 | |||
| Environment Features | |
| Match a standard | CB14048 5-2008,IEC 60947-5-1 |
| Ambient temperature | -25°c- +55°c |
| Vibration resistance | ≤ 500HZ , amplitude about 1.0mm |
| Shock resistance | ≥10g |
| Protection level | IP40,IP65 |
| Contact Features | |
| Contact action | NO or NC |
| Contact resistance | ≤ 50mΩ |
| Mechanical life | ≥1,000,000 |
| Electrical durability | AC ≥100,000 |
| Short-circuit protection | RT16-10A |
