PVC wire extruding machine is used for the insulation of wire and cable
with PVC.
2.CONSISTING COMPONENTS of wire extruding machine

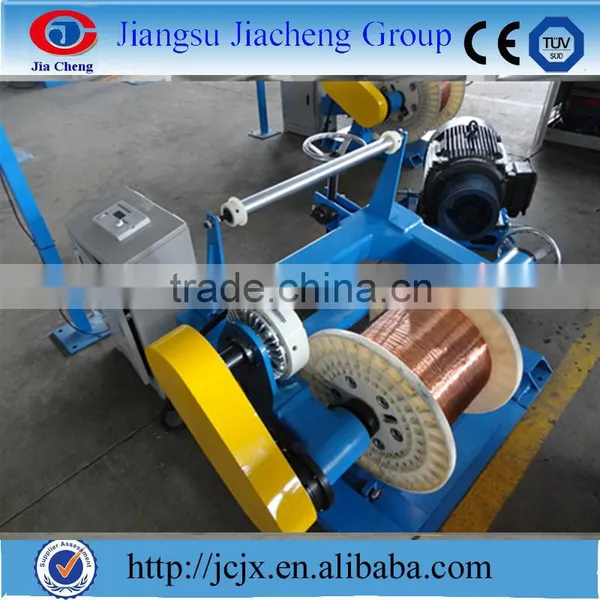

1,Φ630non-shaft rack for pay-off 2.straightening table 3.dryer 4.suction
5. Φ30 main machine 6.electric cabinet 7.forepart sink
8.wire’s measure and control instrument 9.high speed printer 10.fixed sink
11.haul-off machine 12.9 meters accumulate rack 13.power frequency spark machine
14 counter table 15.double-shaft take-up machine
3. Technical parameter of wire extruding machine
Machine model |
JCJX-30 |
Screw diameter |
Ø30 |
L/D ratio |
25:1 |
Rotation speed(m/min) |
20-110 |
PVC extrusion capacity(kg/h) |
25 |
LDPE extrusion capacity(kg/h) |
16 |
PP extrusion capacity(kg/h) |
13 |
Main-machine power(KW) |
5.5 |
Finished wire dia.(mm) |
0.2-1 |
Line speed(m/min) |
10-650 |
Pay-off power(kw) |
2.2 |
Pay-off bobbin(mm) |
400-630 |
Haul-off unit |
Capstan type |
Accumulate length(m) |
220 |
Take-up bobbin dia.(mm) |
400-630 |
Electrical control |
PLC |
4.Wordwild markets of wire extruding machine
We are one of the top 10 manufacturers of producing wire and cable machinery in China,we export to India,Iran,Pakistan,Vietnam,Malaysia,Kenya,Syria,Brazil,Egypt,Bangladesh Burma and so on.
