Specifications
PET Laser Cutting Machinery1.Coherent / Synrad Lasers
2.High precision, high efficiency
3.Ball screw
4.Servo motor
PET Laser Cutting Machinery
JMSJG-8550 Laser Cutting Machine
Application
Applicable Materials: Cutting Non-metal materials such as PC Film (Polycarbonate Film), Membrane Panels, PET, PS, ET, Acrylic, Wood, Leather, Paper, etc.
Applicable Industries: Non-metal materials processing industries, such as Advertising, Crafts, Furniture, Membrane Panels, Models, etc.
Features
1) With steel girder structure, resistance to deformation ability, stable and durable performance.
2) Precision ball screw driving system and servo motor system ensure high cutting precision.
3) Coherent / Synrad CO2 RF metal lasers, high quality laser beam, stable power and long working life. Low use-cost, maintenance-free and high efficiency.
4) Zinc-iron honeycomb working table (Strip panel working table optional), with funneling exhaust system, a very good air suction system. Complete exhaust and filtering of cutting emissions possible.
5) Smart nesting function enhances utilization rate of processing material.
6) 5 inches LCD CNC system, online and offline control optional, easy to use.
|
Main Technical Parameter | |
Laser Type: |
Coherent / Synrad CO2 RF metal laser tube |
Laser Power: |
30W / 55W (Air Cooling) / 70W (Water Cooling) |
Working Area: |
850mm×500mm |
Working Table: |
Zinc-iron honeycomb working table |
Cutting Speed: |
Adjustable |
Repeating Positioning Accuracy: |
±0.1mm |
Cooling System: |
Constant temperature water chiller |
Motion System: |
Servo motor, Ball screw driving system, Offline motion control system |
Power supply: |
AC110V-220V 50/60Hz |
Format Support: |
AI, BMP, PLT, DXF, DST, etc. |
Standard collocation: |
Mini air compressor, 550W exhaust system |
Optional collocation: |
50W CO2 DC glass laser tube, Strip panel working table |
|
Working size and laser power can be customized according to requirement. | |
PC Film Cutting
Membrane Panel Cutting
ET Cutting

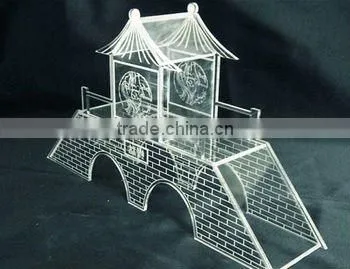

Thin Acrylic Cutting

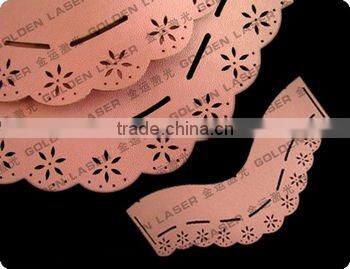

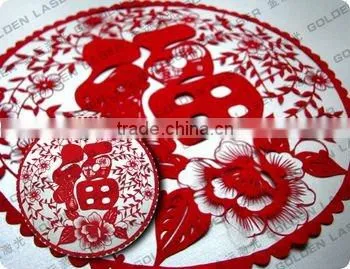

Paper Craft Cutting
Leather Cutting

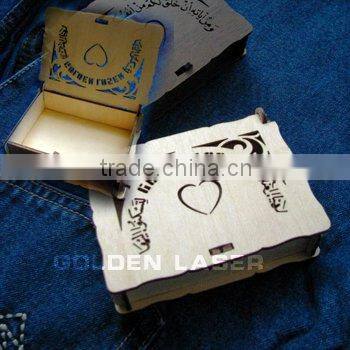

Wood Cutting
