Specifications
Paper Card Board Cutter with Laser1.high precision laser cut
2.high cutting speed
3.high flexibility
4.highly economical
Paper Card Board Cutter with Laser
|
Laser Cutting and Engraving Machine | ||||
| ||||
|
Laser Cutting Machine Main configuration | ||||
| ||||
|
Perfectly cut, engraved and marked with CO2 lasers
| ||||
The Outstanding Laser Cutting Advantages Over Traditional Cutting Tools: | ||||
| ||||
Machine Features | ||||
|
1. CE Certified. 2. GOLDEN LASER Patent: Double core laser processing system. Double combined laser heads work alternately. Stable running with separate laser tube/laser power supply makes longer working life of the machine. 3. Front and back run-through design for large materials processing. 4. Precise cutting and engraving, high speed and easy operation. 5. Automatic up and down working table, automatic focus system, ensuring the best focusing and processing effect. 6. With rotary attachment, it can achieve fine engraving for various non-metal cylindrical and tubular materials. 7. Suitable for engraving and cutting a variety of non-metal materials. | ||||
Application | ||||
|
Applicable Materials: Wood, Acrylic, Plywood, MDF, Glass, Plastic, Acryl, PMMA, Perspex, Plexiglas, Plexiglass, Organic Glass, ABS, Paper, Paperboard, Cardboard, Leather, Marble, Bamboo, Balsa, Rubber Sheet, etc. Applicable Industries: Advertising, Signs, Signage, Sign Letters, Advertising Letters, Gifts & Crafts, Promotional Items, Plaques, Trophies, Awards, Precise Ornaments, Models, Architectural Models, etc. | ||||
Technical Parameter | ||||
Model NO. |
JGSH-10060 |
JGSH-13070 |
JGSH-12560 |
JGSH-13090 |
Laser Type |
CO2 DC glass laser tube / CO2 RF metal laser tube |
|||
Working Area |
1000mm×600mm |
1300mm×700mm |
1250mm×600mm |
1300mm×900mm |
Single Head |
65W×1 |
80W×1 |
80W×1 |
80W×1 / 100W×1 |
Double Head |
65W×2 |
80W×2 |
80W×2 |
80W×2 |
80W (Cutting), |
80W (Cutting), |
|||
Working Table |
Zinc-iron honeycomb working table / Strip panel working table |
|||
Fixed working table |
Electric up and down working table |
|||
Repeating Location Accuracy |
±0.1mm |
|||
Motion System |
Step motor / Servo motor |
|||
Cooling System |
Water cooling and protection system |
|||
Power Supply |
AC110V-220V 50/60Hz |
|||
Format Support |
AI, BMP, PLT, DXF, DST, etc. |
|||
Standard collocation |
Mini air compressor, 550W exhaust system |
|||
Optional collocation |
Rotary attachment, |
|||
Working Area and laser power can be customized according to requirement. | ||||

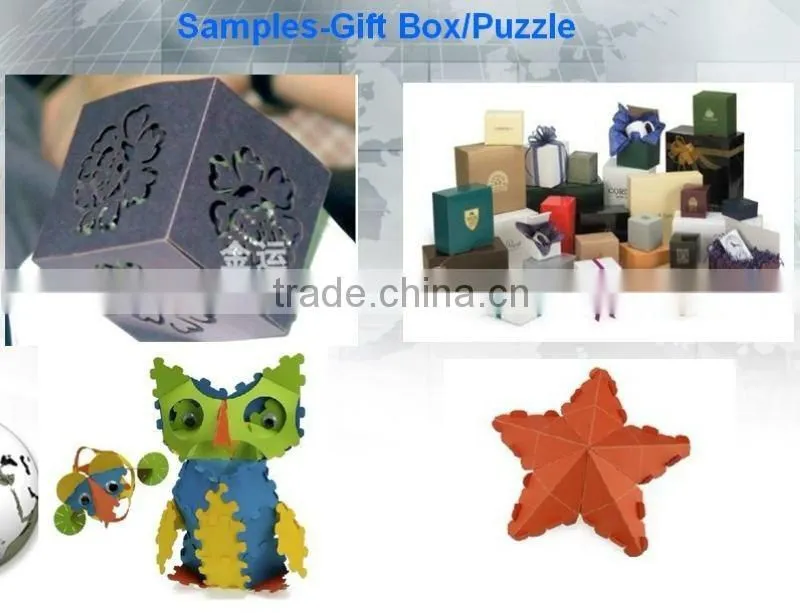

Laser Cutting/Engraving Samples:
Golden Laser Exhibitions Worldwide:

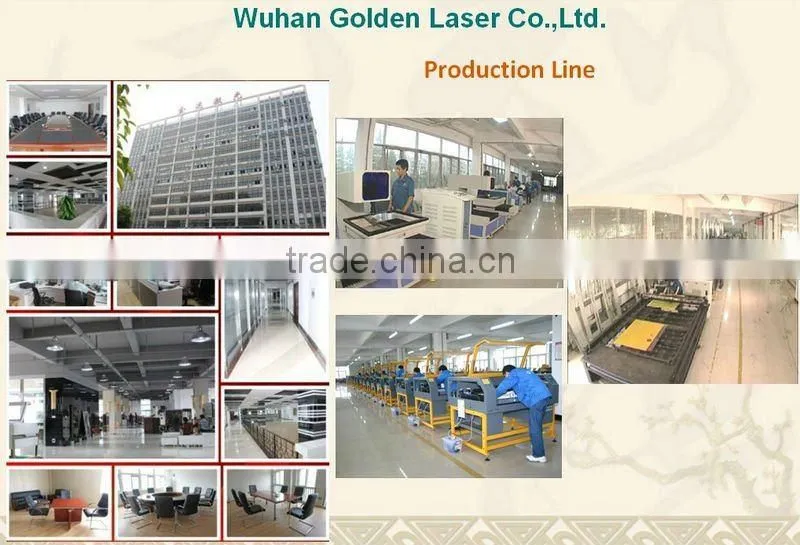

Golden Laser Overviews:
