CO2 Laser Jigsaw Puzzle Cutting Machine

Laser Cutting and Engraving Machine

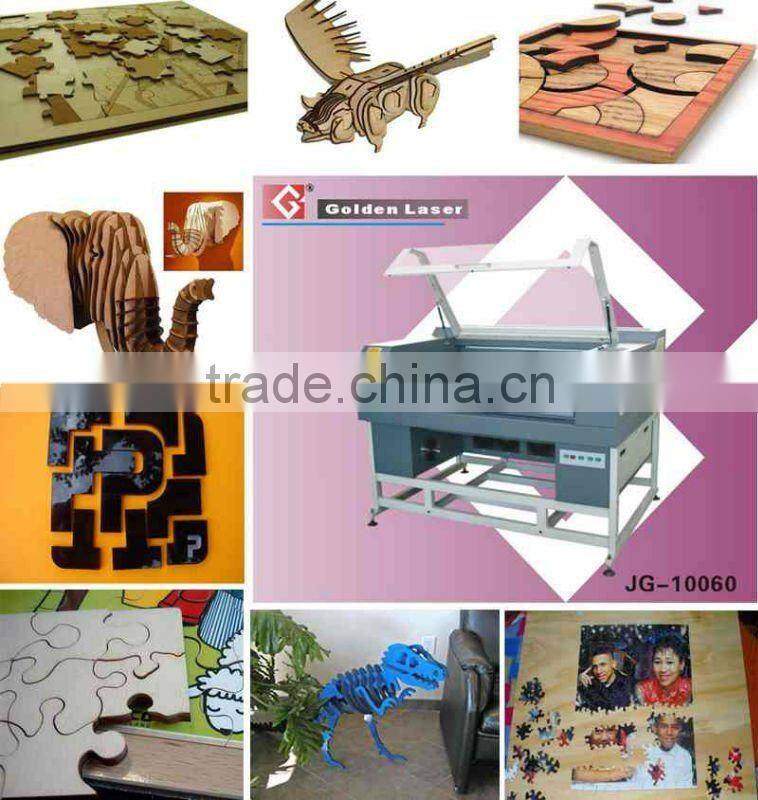

Machine Photo

Laser Cutting Advantages:

• The surfaces remain crack-free and do not show signs of bruise by clamping
• Smooth and precise cutting edges
• High repeatability and accuracy
• Freely selectable contours
• No chips, therefore no cleaning of the machine surrounding necessary
• Laser cutting of extremely fine contours and practically radius-free inner contours
• Contactless processing, therefore no stressing or damaging of the material – no clamping necessary
• Uneven materials can be easily processed without quality loss due to tactile focus tracking
• Laser cutting and laser engraving of different material thicknesses and combinations in one process step.

Machine Features:

1. CE Certified.

2. GOLDEN LASER Patent: Double core laser processing system. Double combined laser heads work alternately. Stable running with separate laser tube/laser power supply makes longer working life of the machine.

3. Front and back run-through design for large materials processing.

4. Precise cutting and engraving, high speed and easy operation.

5. Automatic up and down working table, automatic focus system, ensuring the best focusing and processing effect.

6. With rotary attachment, it can achieve fine engraving for various non-metal cylindrical and tubular materials.

7. Suitable for engraving and cutting a variety of non-metal materials.

Application:

Applicable Materials: Wood, Acrylic, Plywood, MDF, Glass, Plastic, Acryl, PMMA, Perspex, Plexiglas, Plexiglass, Organic Glass, ABS, Paper, Paperboard, Cardboard, Leather, Marble, Bamboo, Balsa, Rubber Sheet, etc.

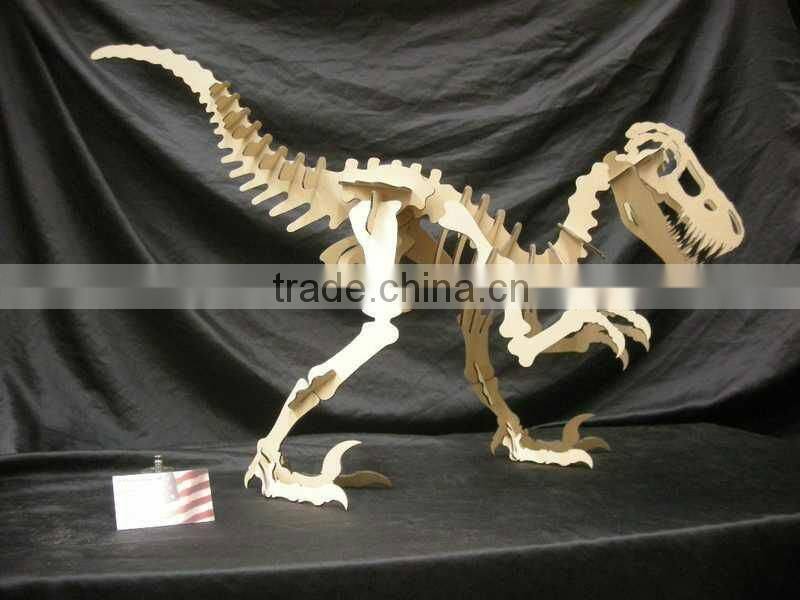

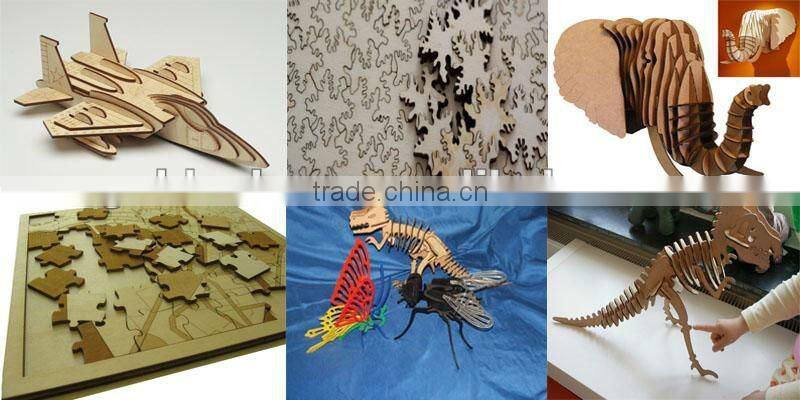

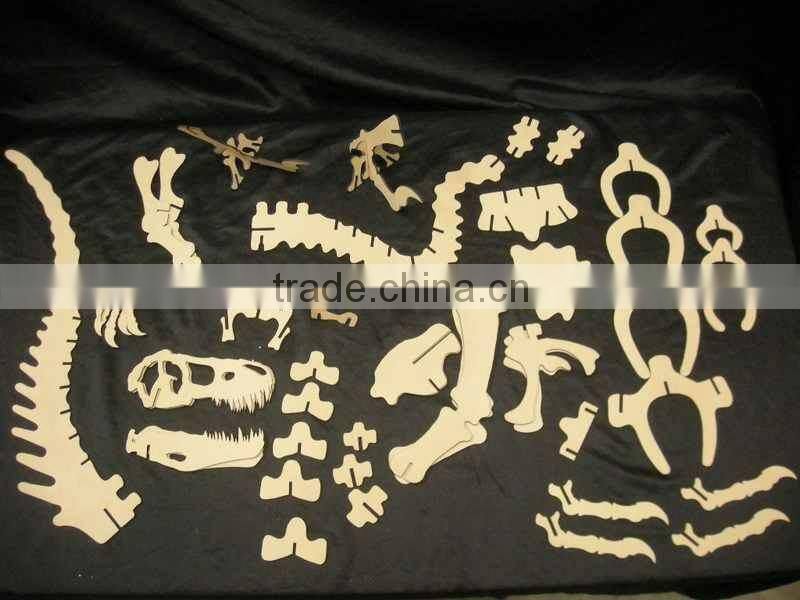

Applicable Industries: 2D/3D Jigsaw Puzzle, Advertising, Signs, Signage, Sign Letters, Advertising Letters, Gifts & Crafts, Promotional Items, Plaques, Trophies, Awards, Precise Ornaments, Models, Architectural Models, etc.

Technical Parameter:

Model NO.

JGSH-10060

JGSH-13070

JGSH-12560

JGSH-13090

Laser Type

CO2 DC glass laser tube / CO2 RF metal laser tube

Working Area

1000mm×600mm

1300mm×700mm

1250mm×600mm

1300mm×900mm

Single Head

65W×1

80W×1

80W×1

80W×1 / 100W×1

Double Head

65W×2

80W×2

80W×2

80W×2

80W (Cutting),
50W (Engraving)

80W (Cutting),
50W (Engraving)

Working Table

Zinc-iron honeycomb working table / Strip panel working table

Fixed working table

Electric up and down working table
(Up and down distance: 0-150mm )

Repeating Location Accuracy

±0.1mm

Motion System

Step motor / Servo motor

Cooling System

Water cooling and protection system

Power Supply

AC110V-220V  50/60Hz

Format Support

AI, BMP, PLT, DXF, DST, etc.

Standard collocation

Mini air compressor, 550W exhaust system

Optional collocation

Rotary attachment,
Auto focus system,
Constant temperature water chiller

Working Area and laser power can be customized according to requirement.
