Large Laser Cutting Machine for Acrylic Letters
US$ 3,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Laser Type:
CO2
Place of Origin:
Hubei, China
Brand Name:
Golden Laser
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrylic CO2 Laser System With High PrecisionUS$ 3,000 - 8,000MOQ: 1 Set -
Acrylic Laser System Engraving CuttingUS$ 3,000 - 8,000MOQ: 1 Set
-
Dual Core Laser Machine for Acrylic, Wood, PlasticUS$ 3,000 - 8,000MOQ: 1 Set
-
Plastic/Cardboard/Wood Jigsaw Puzzle Laser CutterUS$ 3,000 - 8,000MOQ: 1 Set
-
Jigsaw Puzzle Laser Die Cutting MachineUS$ 3,000 - 8,000MOQ: 1 Set
Laser Type
CO2
Place of Origin
Hubei, China
Brand Name
Golden Laser
Model Number
laser cutting machine for acrylic letters
Condition
New
Specifications
Laser Cutting Machine for Acrylic Letters1.size 1300X2500mm
2.cutting pmma, plexiglas, perspex
3.polished cutting edge
4.CE
Laser Cutting Machine for Acrylic Letters
Laser cutting, Laser engraving and Laser marking of PMMA, Acrylics, Plexiglas
- Can be perfectly cut, engraved and marked with CO2 lasers
- Polished cutting edges even in filigree contours without rework
- Both extruded and casted PMMA can be processed
- Processing with protective cover possible
- Chipless laser cutting and engraving of plexiglas
- Neither tool wear nor tool change necessary in comparison to routing, drilling or sawing
- No clamping or fixing of acrylics necessary
- High repeatability and consistent quality

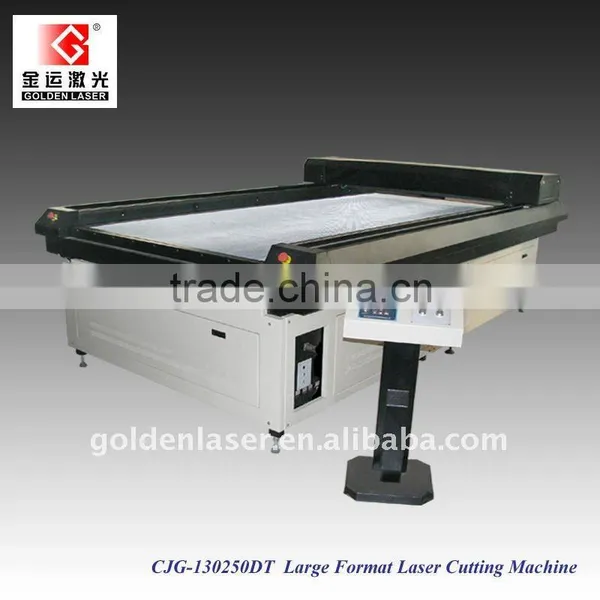

Product Name: Large Format Laser Cutting Machine
- Model No.: CJG-130250DT
- Working Area: 1300mm×2500mm
- Motion System: Servo motor
- Laser Power:
- (1) 80W / 100W / 130W CO2 glass laser tube
- (2) 100W / 150W CO2 RF metal laser tube (Coherent / Synrad)
- Working Table : Zinc-iron honeycomb working table / Strip panel working table
- Cutting Speed: 20m/min (depending on materials, pattern, thickness)
- Power Supply: AC110V-220V 50/60Hz
- Control Method: Offline control
- Repeating Location Accuracy: ±0.1mm
- Format Support: AI, BMP, PLT, DXF, DST, etc.
Main Function: Cutting and Engraving
Application: This laser engraving and cutting machine is widely used in wide format engraving and cutting acrylic, wood board, model board and other nonmetal materials of advertising and decoration, aeromodelling, signs & signage, craftwork industry, etc.
Materials that can be Cut/Engraved:
This laser cutter can cut/engrave on most nonmetal materials, such as wood board, plywood, MDF, acrylic, plastic, Plexiglas, PMMA, plexiglass, Perspex. balsa, bamboo, cardboard, paper, marble, rubber, organic glass, glass and crystal, leather, etc.
Product Highlights:
- This laser cutting machine adopts special structure and controlling system. Kerf is small, cutting edge is smooth, which effectively meet high precision cutting requirement.
- The software supports CorelDraw and others graphics manipulation programs. The original photos can be output directly, which can avoid the photos being out of shape and the data being incorrect.
- Simple optical path design without depletion, ensures unanimous power output on the working table and every fine product.
- Imported optical mirrors, high-temperature endurable, anti-abrasive, small diameter of focalize facula; ensure higher cutting ability compared with the machine of the same laser power.
- Standard machine is equipped with high quality 80W / 100W / 130W CO2 glass laser tube made in China with fine cutting effect and advantage of price. The laser cutting machine uses a beam of light as the cutting/engraving tool, so no part of the machinery actually touches the material being cut/engraved. You don't need a special system to hold down your material. The engraved words and graphs do not fade, exist permanently and can avoid being forged effectively.
- USB data connector: data communication can be completed very fast, it doesn't occupy computer resource when engraving. You can save multiple files at the same time.
- This laser cutting machine is equipped with strip panel working table, which can avoid producing defective products due to the reflection when cutting acrylic and wood, it also makes the finished products fell into drawer. This working table is more suitable for cutting board.
Prompt & Good After-sale Service:
1. One year guarantee for the whole set of machines, not including normal replacement of wearing parts.
2. 24 hours technical support by email or calling. When it is necessary, we will send technician to the customer side to solve the problem.
3. User-friendly English manual and CD for machine using and maintaining.
4. Free lifetime upgrading of self-developed English software.
