Specifications
Acrylic CO2 Laser System with High Precision1.Dual core system
2.High speed
3.Automatic up-down table
4.Rotary attachment
Acrylic CO2 Laser System with High Precision
Laser Cutting Engraving Machine
Application
Applicable Materials: Wood, Acrylic, Plywood, MDF, Glass, Plastic, Acryl, PMMA, Perspex, Plexiglas, Plexiglass, Organic Glass, PVC, Paper, Paperboard, Cardboard, Leather, Marble, Bamboo, Balsa, Rubber Sheet, etc.
Applicable Industries: Advertising, Signs, Gifts & Crafts, Promotional Items, Plaques, Trophies, Awards, Precise Ornaments, Models, Architectural Models, etc.

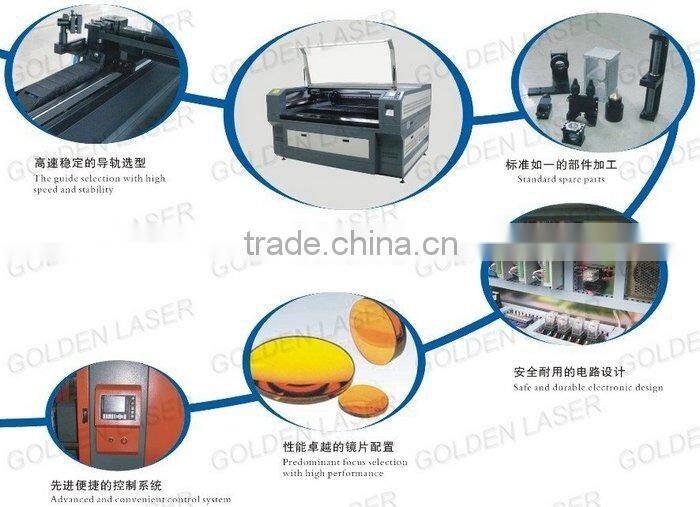

Features
1. CE Certified.
2. GOLDEN LASER Patent: Double core laser processing system. Double combined laser heads work alternately. Stable running with separate laser tube/laser power supply makes longer working life of the machine.
3. Front and back run-through design for large materials processing.
4. Precise cutting and engraving, high speed and easy operation.
5. Automatic up and down working table, automatic focus system, ensuring the best focusing and processing effect.
6. With rotary attachment, it can achieve fine engraving for various non-metal cylindrical and tubular materials.
7. Suitable for engraving and cutting a variety of non-metal materials.
Technical Parameter | ||||
Model NO. | JGSH-10060 | JGSH-13070 | JGSH-12560 | JGSH-13090 |
Laser Type | CO2 DC glass laser tube / CO2 RF metal laser tube | |||
Working Area | 1000mm×600mm | 1300mm×700mm | 1250mm×600mm | 1300mm×900mm |
Single Head | 65W×1 | 80W×1 | 80W×1 | 80W×1 / 100W×1 |
Double Head | 65W×2 | 80W×2 | 80W×2 | 80W×2 |
80W (Cutting), 50W (Engraving) | 80W (Cutting), 50W (Engraving) | |||
Working Table | Zinc-iron honeycomb working table / Strip panel working table | |||
Fixed working table | Electric up and down working table (Up and down distance: 0-150mm ) | |||
Repeating Location Accuracy | ±0.1mm | |||
Motion System | Step motor / Servo motor | |||
Cooling System | Water cooling and protection system | |||
Power Supply | AC110V-220V 50/60Hz | |||
Format Support | AI, BMP, PLT, DXF, DST, etc. | |||
Standard collocation | Mini air compressor, 550W exhaust system | |||
Optional collocation | Rotary attachment, Auto focus system, Constant temperature water chiller | |||
Working Area and laser power can be customized according to requirement.
(We also supply Large Format Laser Cutting Machines with working area 1300mmX2500mm, 1350mmX2000mm, etc.)
