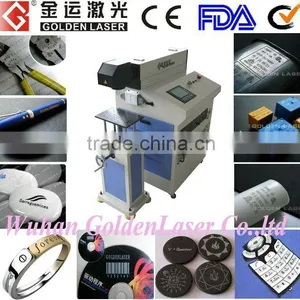

Laser Engraving Machine for Knife/Metal Tools

Wooden Case Package

Specifications

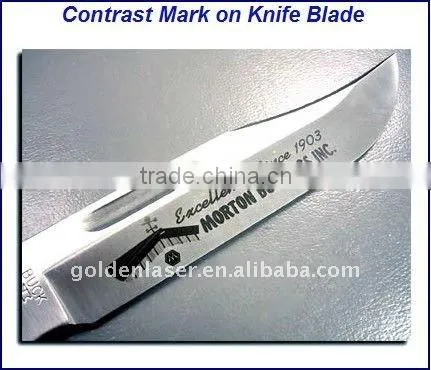

Laser Engraving on Knife
high speed fiber laser
10W/20W/30W/50W
engrave text, serial and part numbers,logos, bar codes,symbol

Laser Engraving Machine for Knife/Metal Tools



Laser engraving provides a permanent message on an in-process or finished components.

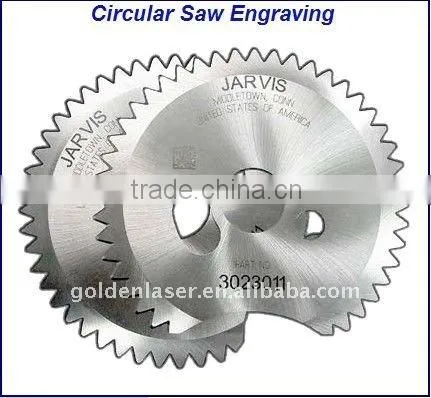

Our laser engraving machines can engrave text, serial and part numbers, company logos, bar codes, or 2D codes on all plain, painted, powder coated, anodized, or plated metal surfaces, whether they are flat sheets, curved surfaces, or cylinders.

Laser engraving also produces very high quality permanent mark on most plastic and metal materials. A character as small as 0.010 inch and as large as 12 inches can be laser etched with our laser engravers.

Laser marking is the favored marking method when permanency or aesthetics are desired. Laser marking is also favored when the part to be marked is too small or has too complex a shape to be marked with anything but laser marking.



Laser Marking and Engraving on Plastic: Plastic, Delrin and Ceramic laser engraving. Logos, Bar Code and serialization engraving.

Electronic Components: From serializing silicon wafers to laser engraving metal and plastic packaging for microelectronic circuits, GOLDEN LASER offers a complete marking solution for the electronics industry.

Medical Instruments: GOLDEN LASER’s medical engraving machines are popular with medical device manufacturers due to the clarity and permanency of the mark.

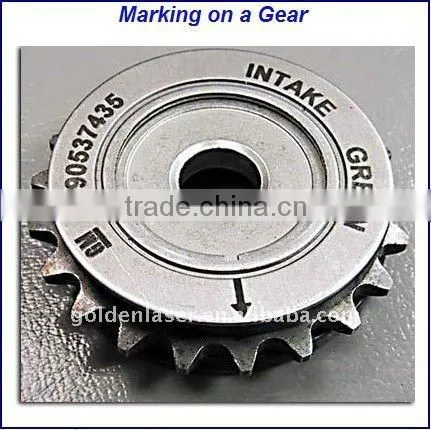

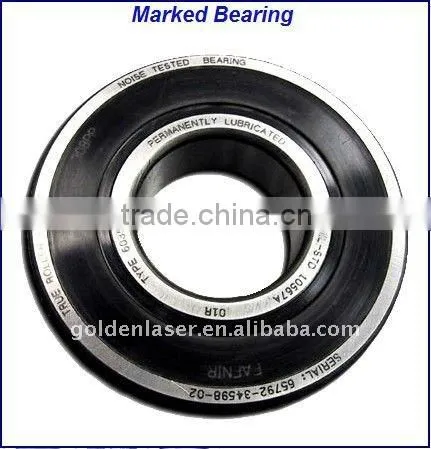

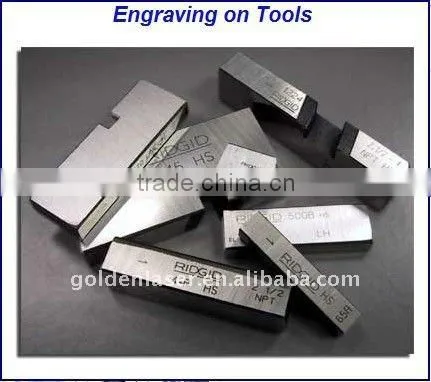

Industrial Components: For industrial applications, laser engraving is the favored marking method, offering permanency and the ability to etch small parts & complex shapes.

Promotional Items: GOLDEN LASER’ engraving/marking machines allow personalization and custom engraving of a wide spectrum of personalized promotional items at resolutions up to 800dpi. E.g. laser engraving personalized custom design, logo, letter and text on iPad, iPod & IPhone, USB flash disk, USB drive, Key chains,

Jewellery Laser Engraving:

Applications: Laser Engraving & Deep Engraving of Jewelery, Rings, Pendant. Laser Engrave on Gold, Platinum, Titanium, Silver & Stainless Steel.

Laser Engraving on the Inside & Outside of Jewellery Rings

Laser Engrave Jewellery Serial Numbers, Logos & Photos

Preview Position with Red Pointer on Jewellery before Engraving



Specifications

Imported fiber laser generator and high-speed galvanometer scanning system. Good beam quality, long working life (100,000 hours). Stable performance and maintenance-free.

With the features of High speed, high precision and high efficiency.

Precision, fine and permanent marks. Easy to use.

This model can achieve automatic arrangement and modification of text, logo, symbols ,images, graphics, bar code, two dimensional barcode, serial number automatically increasing, etc.

With a wide range of application.

[In appearance, there are integrated model and detached model for choice.]



Technical Parameter

Model No.	GDBGX-30
Laser generator	Fiber Laser
Laser power	30W
Standard marking area	70mm×70mm
Optional marking area	35mm×35mm, 110mm×110mm, 130mm×130mm, 175mm×175mm
Working table	Manuel up and down aluminium alloy working table
Marking speed	0-2000mm/s
Cooling system	Air cooling
Control system	Digital offline control
Galvo positioning accuracy	±0.01mm
Power supply	AC220V ± 5% / 50/60Hz
Format support	AI, BMP, PLT, DXF, DST, etc.
Optional	Rotary device for cylinder marking Auto focus for different thickness objects marking 10W Fiber laser 50W high pulsed power for deeper engraving
