Specifications
high speed laser engraving machine1)Co2 RF laser 500W
2)high speed Galvo laser
3)16s for one jean engrave
4)80000 jeans/mon

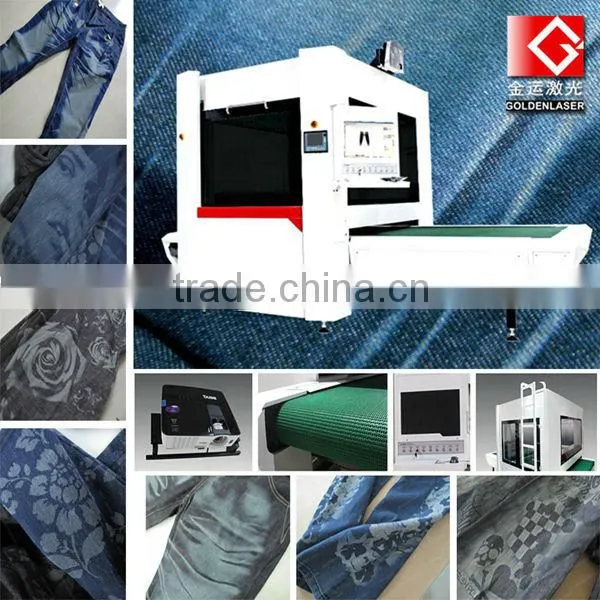

High Speed Laser Engraving Machine for Jeans
Laser Galvo Marking System - FAST FASHION AND ECOLOGICAL ENGRAVING FOR DENIM JEANS
WHY LASER FOR JEANS MARKING INDUSTRY?
Finishing 80,000 jeans per month
by our Galvo Laser Engraving Machine!!!
Compared with traditional WASHING WAY or LAUNDRY machine, laser engraving has its advantage to lead in the jeans industry development.
|
Design |
Procedure |
Process time |
Labor Cost |
Process Way |
Environment |
Laser engraving |
Any design |
Simple operation process |
4 seconds for whisker design |
One operator |
Any effect processed |
No pollution |
Chemical Washing |
Simple |
Complicated procedure |
Long time production |
Many workers |
Change different chemicals |
Chemical pollution |
TECHNICAL FEATURES
- Continuous process to improve the working efficiency
- Patented exhaust system for large working size engraving
- Professional and friendly interface, easy operation
- Stable RF metal laser tube, lower cost maintenance and higher efficiency
- Less chemical pollution
- Easy patterns and designs change way
- Safety and reliable with closed optical path

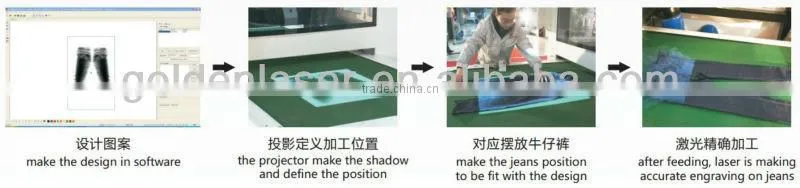

THE WORKING FLOW PROFILE
@Feeding station with the projector→3 axis dynamic galvanometer processing station→Loading station
@Feeding station with the projector: The operator put the jeans on the conveyor belt working table within the outline area of projector, press the foot switch, the machine will be feeding.
@3 axis dynamic galvanometer processing station: After feeding stop, the system automatically start processing the required design, waiting for the next feeding signal.
@Loading station: The finished engraving jeans will be loading through the conveyer belt, and loaded into container
High Speed Laser Engraving Machine for Jeans Features:
a. Compared with the traditional washing, laser process without chemical and less pollution;
b. With continuous feeding method, it overlaps the process and loading/unloading time, improves the working efficiency;
c. Adopts with CNC process, Easy patterns and designs change way and stable performance;
d. Equipped with high-power RF laser tube, it comes with more stable power, lower cost maintenance and higher efficiency;
e. Patented exhaust system ensures the exhaust effect of large working size engraving;
f. This system is safe and reliable with closed optical path;
g. Professionally designed out view, friendly interface, Easy Operation.

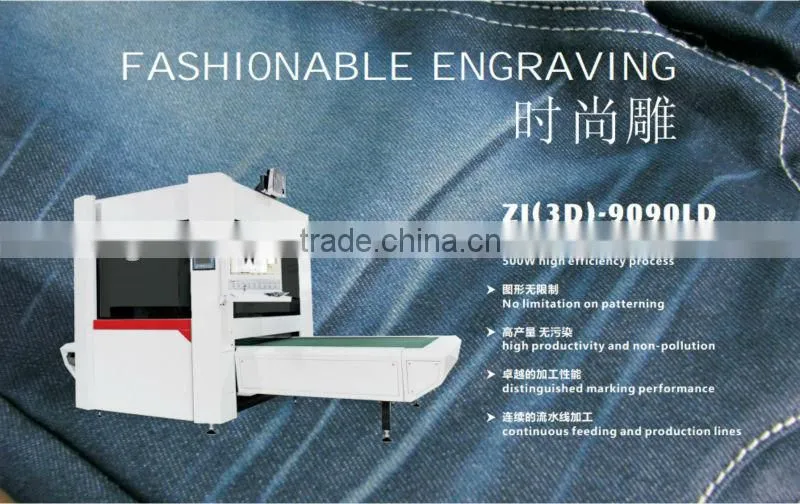

ZJ(3D)-9090LD Denim Jeans Laser Engraving Machine | |||
Laser Generator and Optic Parameters | |||
Laser Type |
CO2 RF metal laser |
Laser Power |
500W |
Laser Wavelength |
10.6 micro meters |
Galvo effective area |
900mmX900mm |
Galvo Processing Speed |
0-20000mm/s (defined as the process material and requirement) |
||
Software system | |||
Control software |
Golden Laser original software |
||
Software Format |
BMP, AI, DST, DXF, PLT, etc. |
||
Working table parameter | |||
Working table type |
Transport rubber conveyor belt |
||
Extend feed table area |
1100mm width X 1500mm length |
||
Conveyor speed |
0-600 mm/s |
Conveyor table motor |
Servo motor |

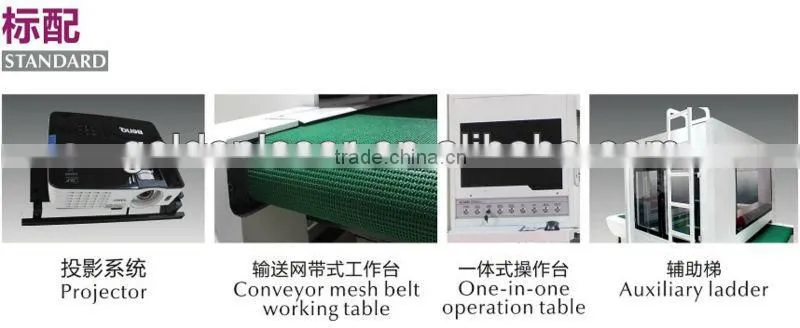

Assistant System | |||
Protection System |
Full protection with optic part structure |
||
Control System |
Golden Laser III control card |
||
Cooling System |
Constant temperature water chiller 5KW for laser machine |
||
Exhaust System |
Fixed Upper exhaust fans / Air blow fans |
||

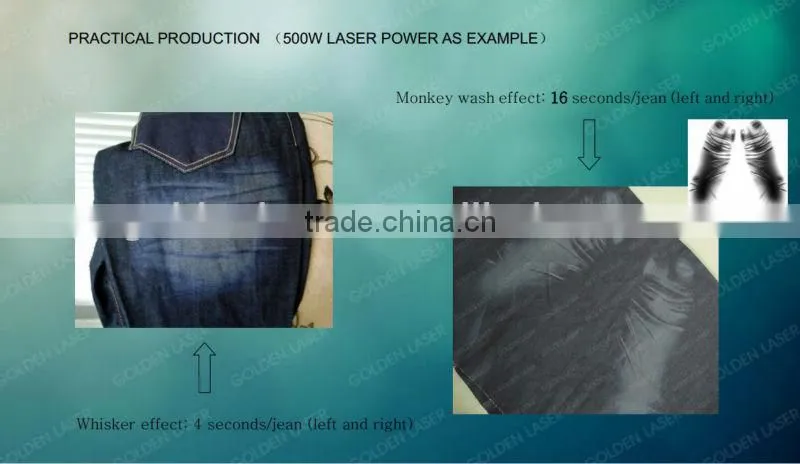

Production Parameters |
Laser Power |
Time for whisker design (front position of left and right) |
Time for monkey washing effect (front position of left and right) |
Productivity of monkey washing effect |
Advantage |
ZJ(3D)-9090LD |
500W |
4 seconds/jeans |
16 seconds/jeans |
81000 pcs/month (12hours/day) |
A line of more jeans on conveyer table for continuous production |
Note: The actual process time depends on the processed design, laser power, and software parameter setup, etc. | |||||

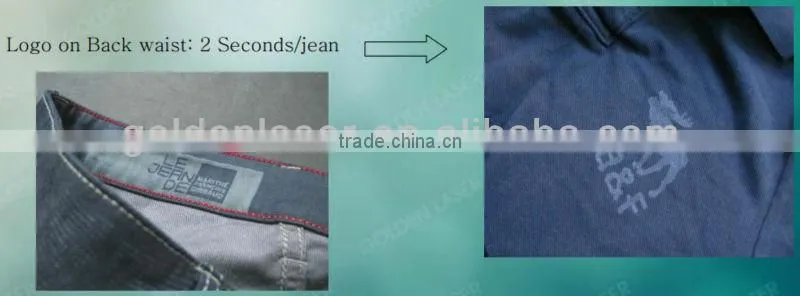

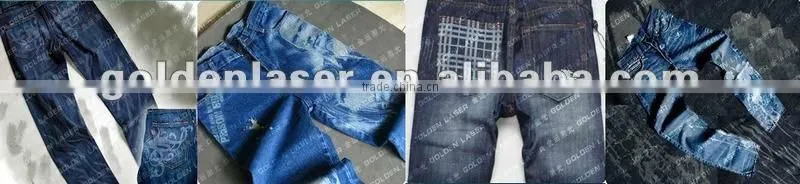

Jeans Laser Engraving Samples Gallery:
<< Golden Laser - Overview:
Golden Laser is a professional manufacturer of different types (CO2, YAG, and Fiber) laser cutting machine,laser engraving systems,laser marking systems,laser embroidery machines and laser welding machines. Laser machines applied in different industries - flexible textile fabric, garment & apparel, advertising & crafts, metal processing and printing & packing, etc. Whether you need a cost-effective machine or a more sophisticated automated solution, from the economical models to the large format processing systems, Golden Laser has professional advanced laser solution that meets your requirements.
Golden Laser Factory & Exhibitions |
|
|
Contact Info |
Ms. Yoyo Ding |
Wuhan Golden Laser Co., Ltd. |
Tel: 0086-15871714482 |
E-M-A-I-L: info(at) |
|
Site: / YouTube Channel: /user/Goldenlaservideo |
Demo Video of high speed laser engraving machine for jeans http://youtu.be/AT7xNQIAOj8
