Specifications
laser engraving textiles1.RF CO2 500W
2.roll to roll flying engraving
3.high speed Galvo
nveyor auto feeding
Laser engraving textiles of garment fabric laser engraving machine 1.6X1.6m
Laser Engraving and Cutting Machine Demo on YouTube - GOLDEN LASER
@ Roll to Roll Flying Fabric Laser Engraving Machine: http://youtu.be/nmH2xqlKA9M
@ Galvo Laser Engraving and Cutting Fabric, Leather: http://youtu.be/D0zXYUHrWSk
@ 500W Galvo Laser Engraving Machine for Leather: http://youtu.be/HsW4dzoHD8o
@ Denim Jeans Laser Engraving Machine: http://youtu.be/QfbM85Q05OA
@ Textile Fabric Flatbed Laser Cutting Machine: http://youtu.be/rN-a54VPIpQ
@ VisionCut Laser Cutting Sublimation Printing Textile: http://youtu.be/PyLwdtDORTQ
@ Mars Series CO2 Laser Cutting Machine: http://youtu.be/b_js8KrwGMM
Laser Engraving Machine

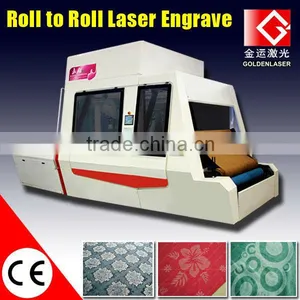

Roll to Roll High Speed Flying Laser Engraving Machine
ZJJF(3D)-160LD

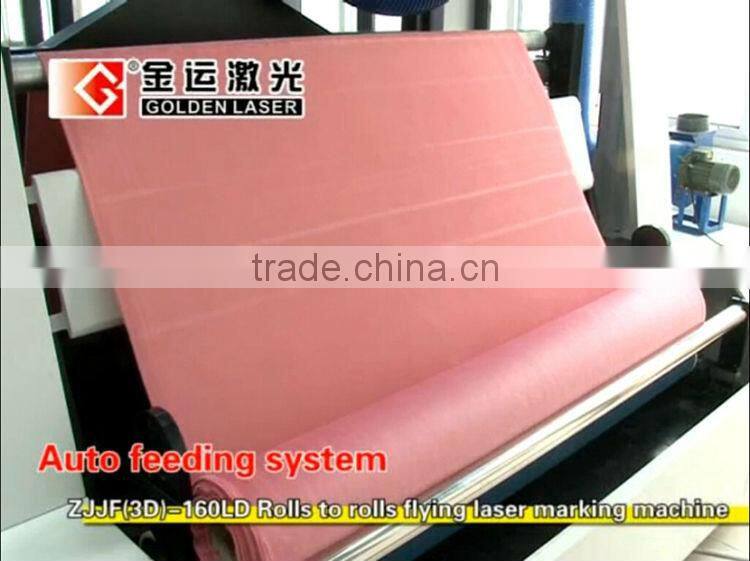

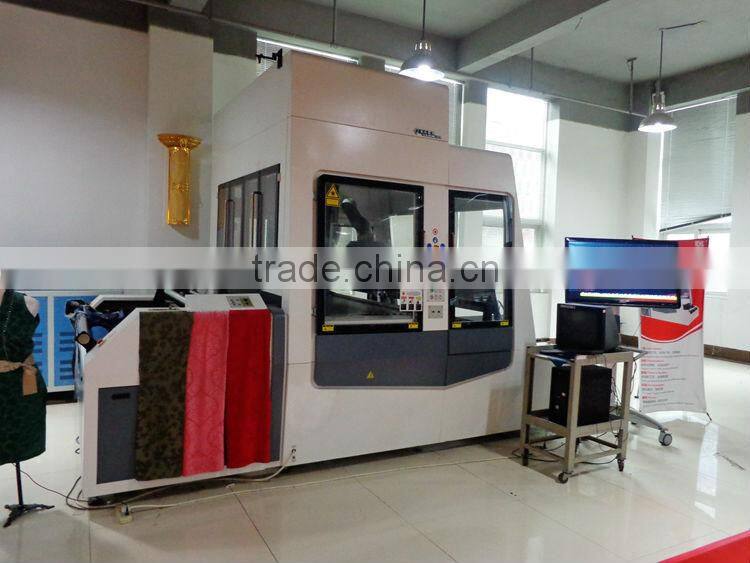

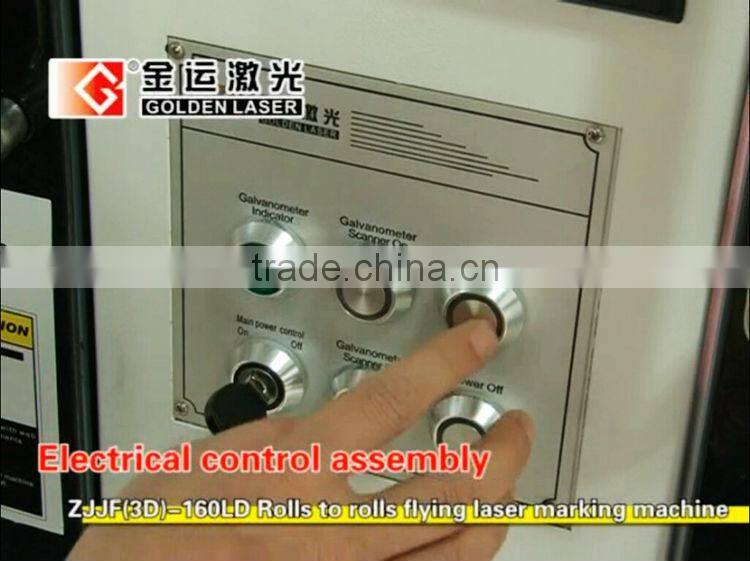

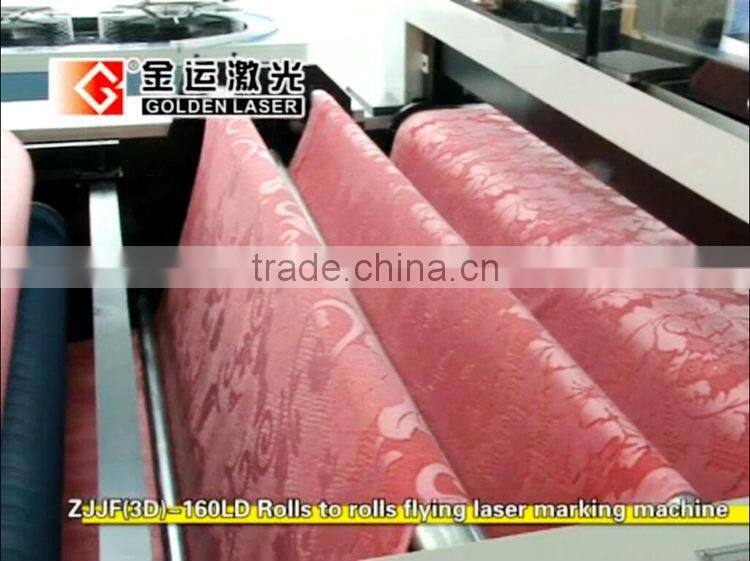

<A> Roll to Roll Laser Engraving Machine Photos
<B> Roll to Roll Laser Engraving Machine SOLUTION OF TEXTILES ENGRAVING
How to avoid homogeneous competition, how to enhance the added-value and improve profits, Golden Laser launched "Saturn" series of roll to roll fabric laser engraving solution.
·Combine high-tech laser and traditional dyeing industries to bring personalized fashion elements
·Flying laser engraving technology for roll fabric textiles
·Full automatic, Simple operating, Environmentally friendly
·High efficiency, high speed, high precision, high added-value and highly personalized process
"Saturn" series is especially developed for fabric and textile industry by Golden Laser
It adopts 3D dynamic galvanometer engraving technology and can do flying engraving on fabrics in rolls, which means engraving fabrics while moving the fabrics. There is no need of pausing and graphic nesting and it needs only one-time to finish engraving, punching, cutting and other integrated processing, thus achieving continuous and automatic processing fabrics in roll.
“Saturn” series laser engraving machine has the advantages of high speed, high accuracy, good processing effect, easy operation, high value-added. Compared with traditional dyeing, laser engraving has the advantages of no pollution, short process-cycle, easy and convenient for graphic making and modification. The images engraved are clear and three-dimensional and can fully demonstrate true nature of the fabric texture. It creates a now production technology and this is a innovative revolution for fabric industry.
At present, this individualized and fashionable processing technology has been successfully applied to home textile fabrics, garments, sofas, bedding, curtains and other industries, which are warmly welcomed by the market.
<C> Roll to Roll Laser Engraving Machine TECHNICAL FEATURES
·Fabric continuous engraving & hollowing, automatic operation
·Germany 3D dynamic focusing system
·Flying engraving technology
·Large area engraving up to 1.6mX1.6m area with one time process
·500W metal RF CO2 laser, high speed engraving
·Red light positioning device
<D> Roll to Roll Laser Engraving Machine Description
·For textile fabrics continuous engraving. Width of working table is up to 1600mm.
·Germany 3D dynamic Galvo system, finishing engraving, punching and cutting in one step.
·Adopting “on the fly” mode engraving technology, laser engraving while material moving, fabric no need to stop.
·Suitable for large format fabric engraving, greatly improving fabric processing quality and added-value.
·500W CO2 RF metal laser tube (standard configuration), fast processing speed and fine results.
·Red light positioning device ensures accurate material feeding.

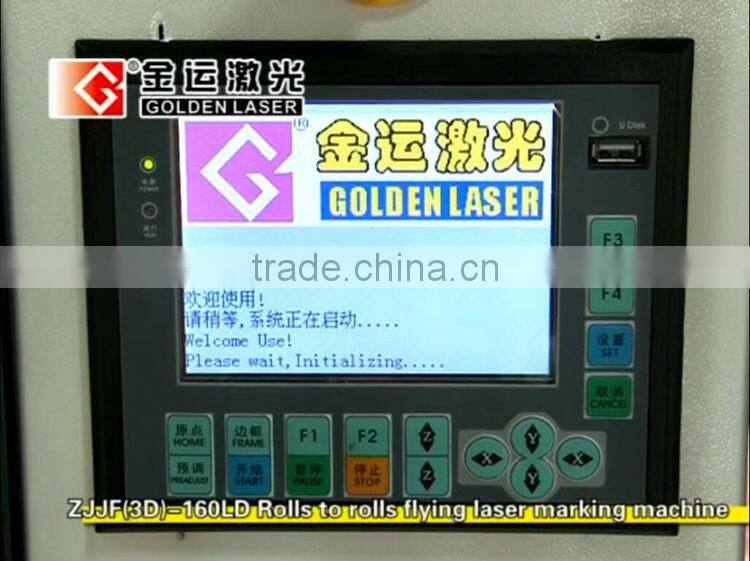

·5-inch LCD screen operating system. Supporting multiple modes of data transmission. Enabling offline or online operation.
<E> Roll to Roll Laser Engraving Machine Application
Suitable for engraving, marking cutting, punching, hollowing garment fabric, home textile, denim jeans, flannel fabric, suede fabric, cloth, woolen fabric, leather and more flexible textile fabric materials.
<F> Roll to Roll Laser Engraving Machine Technical Parameter
Laser types |
CO2 RF metal laser tube |
Laser power |
500W |
Engraving area |
1600mm ×not limitation with processing length |
Working table |
Engraving conveyor working table |
Working speed |
Adjustable |
|
Positioning accuracy |
± 0.1mm |
Motion system |
Offline mode servo motor control system, 5-inch LCD screen |
Cooling system |
Constant temperature water chiller |
Power supply |
AC380V± 5% 50HZ |
Format supported |
AI, BMP, PLT, DXF, DST etc. |
Standard collocation |
Auxiliary ladder equipment, fixed top exhaust suction system, red light positioning, roll to roll feeding, rewinding device, position correcting device |
Optional collocation |
CO2 RF metal laser tube(275W) |

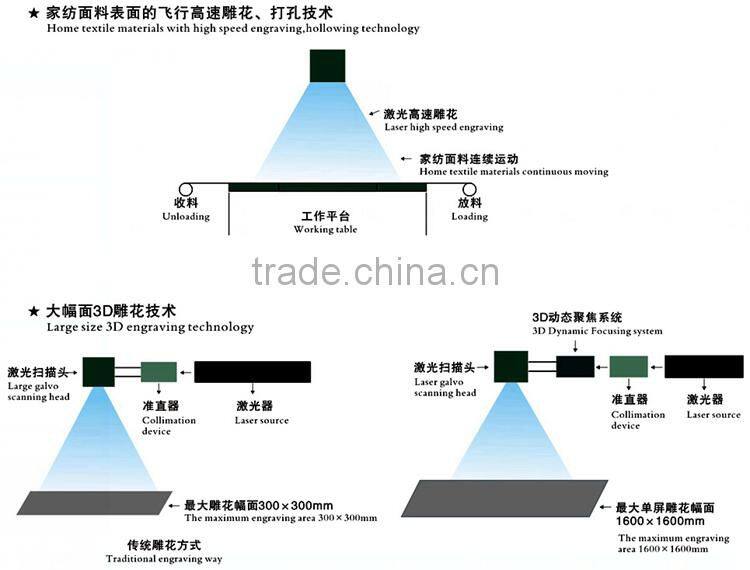

<G> Laser Engraving Machine, Golden Laser Flying Engraving Technology

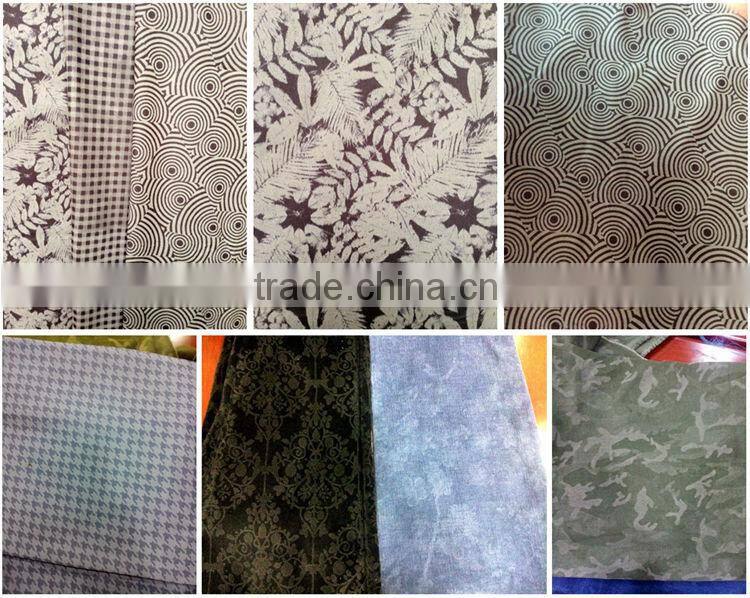

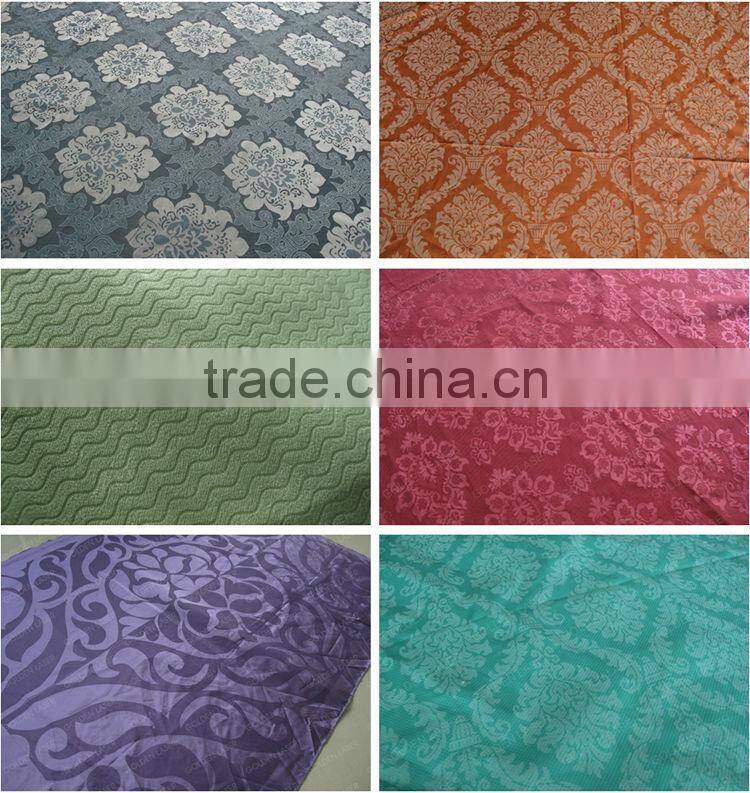

<H> Laser Engraving Fabric, Sample Gallery
