Specifications
laser cutting machine1,Laser power 100w~400w
2,Perfect cut metal,acrylic,wood,plexi glass
3,High precision
4,High quality

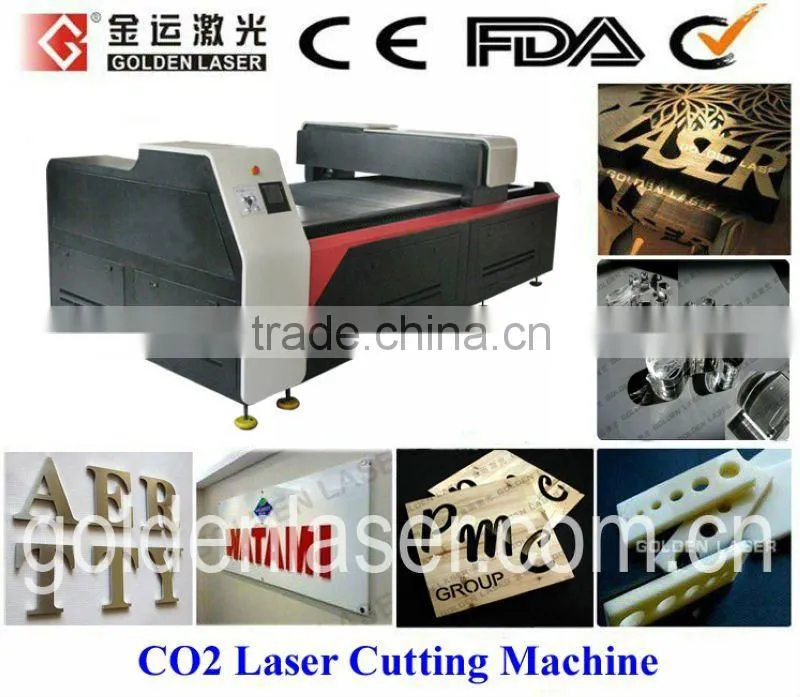

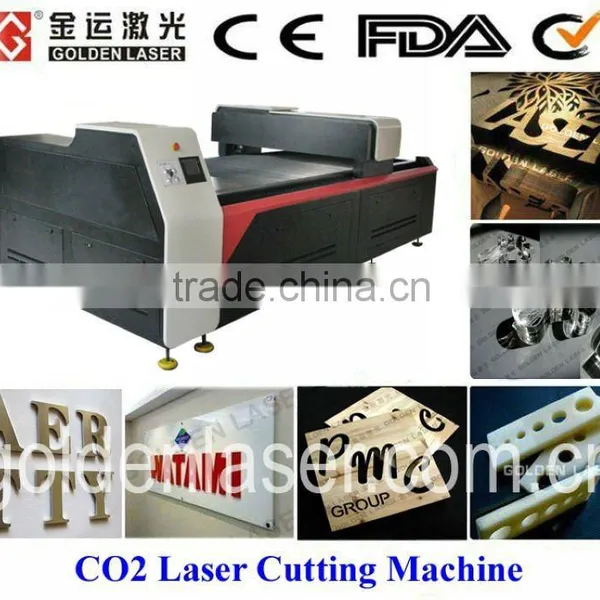

CO2 Laser Cutting Machine for Metal and Nonmetal
< If need laser cutting machine's price list,working video,pictures and more specifications,welcome contact Golden Laser by Leaving a message below. >
Laser Cutting Machine for Advertising Industry
Laser Flat cut letters and logos for interior & exterior signage are available in Acrylic, Plexiglass, Perspex, Stainless Steel, Aluminum, Bronze, Brass, Copper, etc. in many thicknesses and finishes.
Metal Material: mainly Satin aluminum, Brushed aluminum, Brass, Polished stainless steel, Brushed stainless steel. Thickness that our CO2 Laser can cut: 0.2mm~3mm. YAG Lasers can cut up to 8mm mild steel, 6mm stainless steel, 4mm aluminum and copper.
Acrylic lettering is a great choice for displaying your corporate letterings and logos. Our CO2 Lasers cam cut acrylic letters with polished edges, cut any Typeface, cut from any style selected. Our Laser Cut Acrylic Letter Styles: Flat Cut Acrylic Letters, Flat Cut Acrylic Letter With Vinyl Face, Crystal Acrylic Letters, etc.
(1) Laser Cutting Machine Main technical data:
Universal CO2 Laser Cutting Machine for Metal and Nonmetal | |||
Model No. |
JMSCJG-130250DT |
JMSCJG-130160DT |
JMSJG-13090DT |
Working Area |
1300mm×2500mm |
1300mm×1600mm |
1300mm×900mm |
Laser Type |
CO2 RF metal laser tube |
||
Laser Brand |
Coherent / Synrad / RECI |
||
Laser Power (Standard) |
400W |
400W |
150W |
Laser Power (Optional) |
100W, 150W, 200W, 300W CO2 RF Laser (Power above 150W, it is able to cut thin sheet metal) |
100W CO2 Glass Laser. 100W, 200W, 300W, 400W CO2 RF laser (Power above 150W, it is able to cut thin sheet metal) |
|
Working Table |
Strip panel working table |
||
Max Cutting Speed |
15m/min (depending on material’s thickness) |
||
Repeating Location Accuracy |
±0.1mm |
||
Motion System |
Servo motor, Ball screw driving system, LCD display numerical control system |
||
Cooling System |
Constant temperature water chiller |
||
Power Supply |
AC220V±5% / 50/60Hz |
||
Format Support |
AI, BMP, PLT, DXF, DST, etc. |
||
Standard |
Mini air compressor, Automatic control high pressure blow valve |
||
Optional |
Auto-focusing system |
||
Working size and laser power can be customized according to requirement. | |||
(2) Laser Cutting Machine Highlights:
- Large format working area with steel girder structure.
- Precision ball screw driving system and servo motor system ensure high cutting precision.
- Coherent / Synrad CO2 RF metal laser tube produces high quality laser beam, stable power and long working life. Low use-cost, maintenance-free and high efficiency.
- Strip panel working table reduces contacting area with work pieces, which ensures high quality cutting.
- Following exhaust system has good air suction performance, saving energy consumption.
- Smart nesting function enhances utilization rate of processing material.
- 5 inches LCD CNC system provides online and offline for your choice, easy to use.
- Wide application. Suitable for cutting metal and non-metal. It is a multi-purpose machine that can cut up to 30mm thick non-metal materials like acrylic and wood and also can cut up to 3mm thick metal sheets.
(3) Laser Cutting Machine Application:
Applicable Materials: Perfectly cutting metal and non-metal materials, such as stainless steel, mild steel, carbon steel, acrylic, wood, MDF, die board, plywood, veneer, plastic, Plexiglas, plexiglass, Perspex, PMMA, ABS, rubber, sponge, paper, cardboard, paperboard, cardstock, etc.
Applicable Industries: Sheet metal processing, advertising & signs, LED letters, decorative letters, advertising letters, metal sign letters, crafts, decoration, printing and packaging industry, modelling, furniture & floor manufacturing, Parquet, Marquetry and those which are in need of cutting both metal and non-metal materials.
(4) Laser Cutting Machine GoldenLaser’s Software Presentation:
a. Our software is compatible with BMP, AI, PLT, DST, DXF formats;
b. Seamless connection process for different designs from CorelDraw, AutoCAD.
c. Offline control and large memory for data storing, realize the offline control and batch of
production work;
d. One computer control multi-machines for decreasing the invest costing and labor force;
e. 5 inches LCD display screen for easy and convenient operations.
(5) Advantages of GOLDEN LASER Solution for metal and solid materials:
- Cost efficiency by the application of low maintenance technologies and maintenance-free lasers
- Engrave and cut a wide variety of materials
- One machine cutting both metal and non-metal
- Faster speed and higher precision
- Global pioneer for dual core laser processing system
- Particular ultrasonic auto-focus system
- High efficiency engraving and cutting in one machine (two independent systems)
- High efficiency galvanometer engraving and cutting integrated technology
- International leading laser motion control system
- Auto-nesting
- Fast pattern digitizing
- Complete exhaust and filtering of cutting emissions possible
- Ergonomic loading and unloading system without time-consuming
[We also supply CO2 Laser Cutting Engraving Machines for flexible materials, YAG Laser Cutting and Marking Machines and Fiber Laser Cutting and Marking Machines.]
(6) Prompt & Good After-sale Service:
1. One year guarantee for the whole set of machines, not including normal replacement of wearing parts.
2. 24 hours technical support by email or calling. When it is necessary, we will send technician to the customer side to solve the problem.
3. User-friendly English manual and CD for machine using and maintaining.
4. Free lifetime upgrading of self-developed English software.

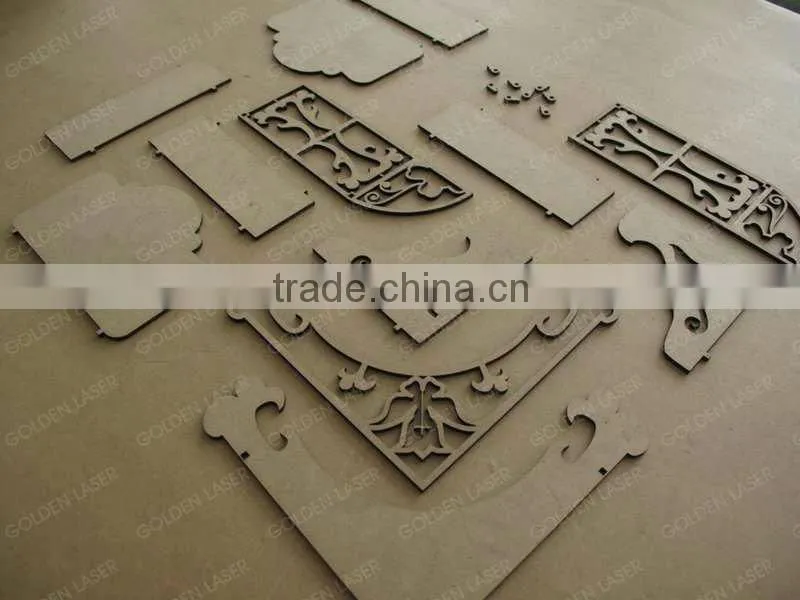

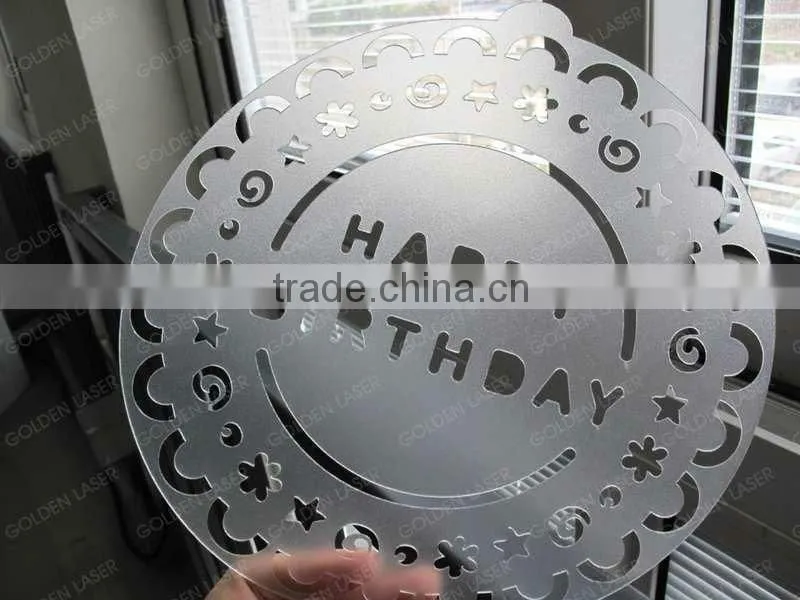

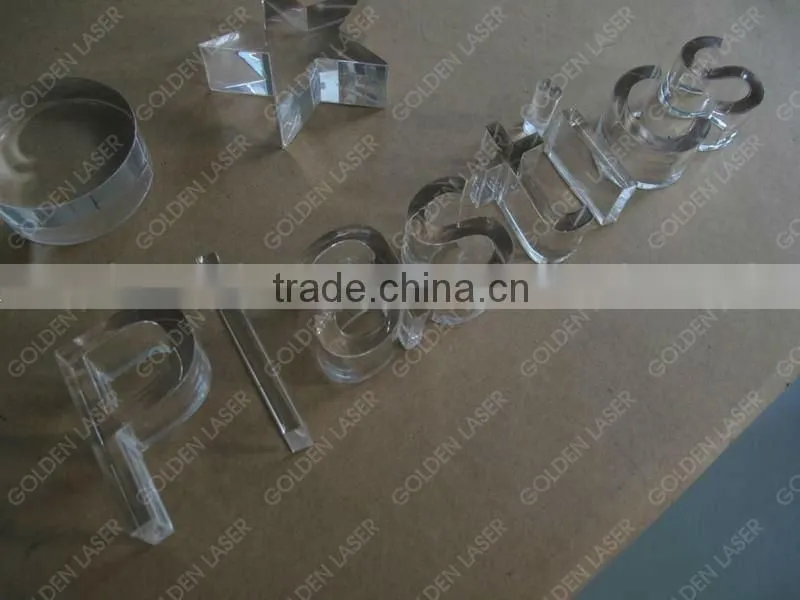

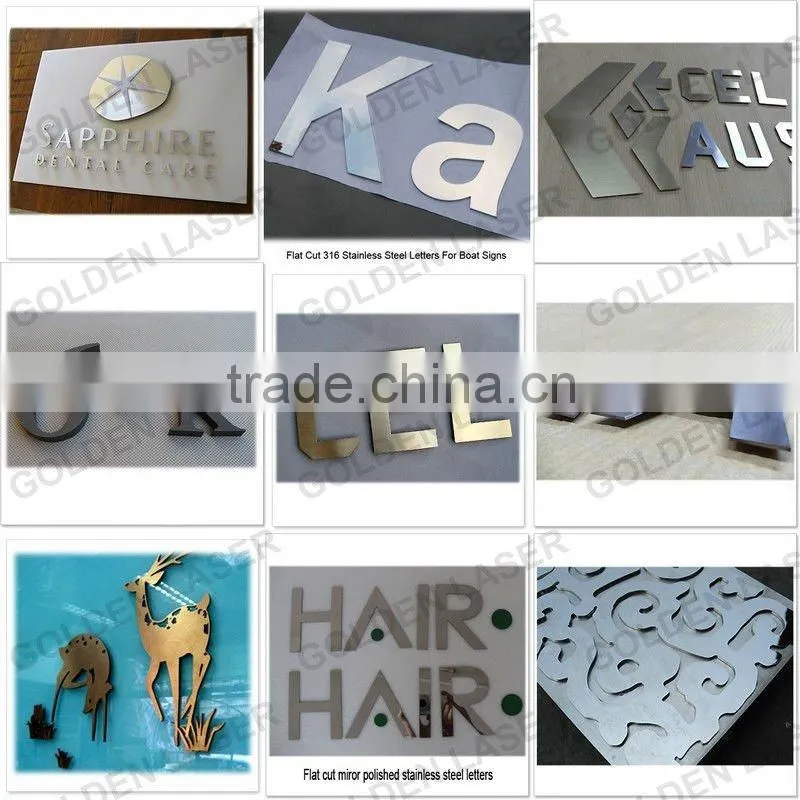

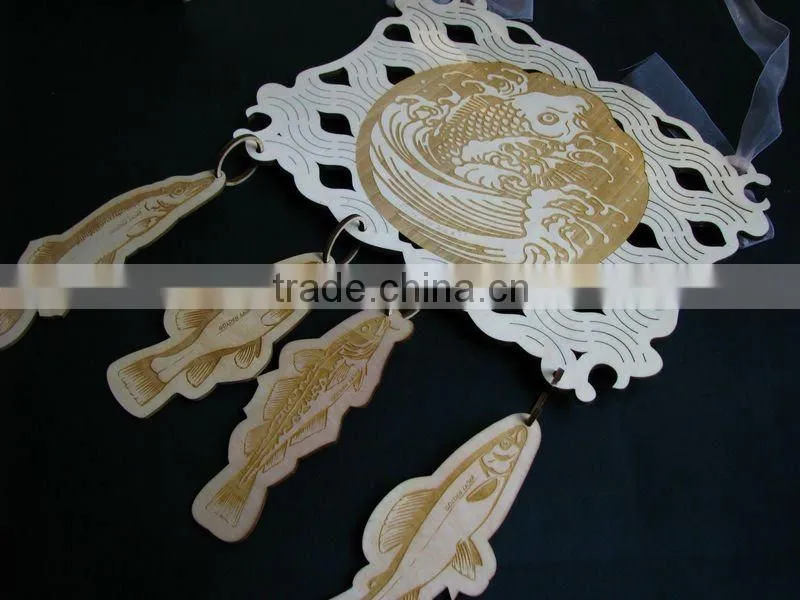

(7) Laser cutting metal and nonmetal, samples gallary:
Laser Cuting Machine Excellent Configuration:
Golden Laser Exhibitions Worldwide:
Golden Laser More Detailed Pictures:
About us:
Goldenlaser is a manufacturer of different types (CO2, YAG, and Fiber) laser cutting, engraving systems, suitable for different industries - flexible textile, solid advertising, metal processing and Printing & packing. Whether you need a cost-effective machine or a more sophisticated automated solution. From the economical models to the large format processing systems, GoldenLaser has the laser machine solution that meets your requirements.
Golden Laser Machines Application Scope:
- Toy, garment accessories, applique, non-woven cloth, shoes, home textile industries.
- Advertising& signs, craftwork, gift, greeting card, tag, model, foam industries.
- METAL WORKING,ELECTRONICS&CHIP INDUSTRIES.
- Garment cutting, pattern making& nesting industries.
- Embroidery, fabric engraving industries.
- Automobile interior, carpet, mat industries.
- Filter, inflatable, awing, outdoor productions, sailing, parachute industries.
- Printing & packaging, stamp & rubber, pressing roller engraving, corrugated paper industries.
Please advise us the following information, so that we can recommend you the most suitable model, right now, feel free to contact –Golden Laser!
1. What kind of machine do you need? Laser cutting or laser engraving or laser marking?
2. What materials do you need to process? The size and thickness?
3. What is your business scope? Are you an end user or distributor?
We will be very happy to help you in any way we can.
