sublimated dye textile cutter / laser cutting digital printing fabrics

Wooden Case Package

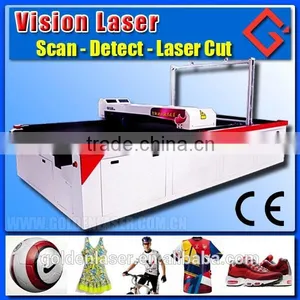

Large format printing fabric cutting machine/VisionCUT Laser Machine

Intelligent high-speed precise positioning visual system

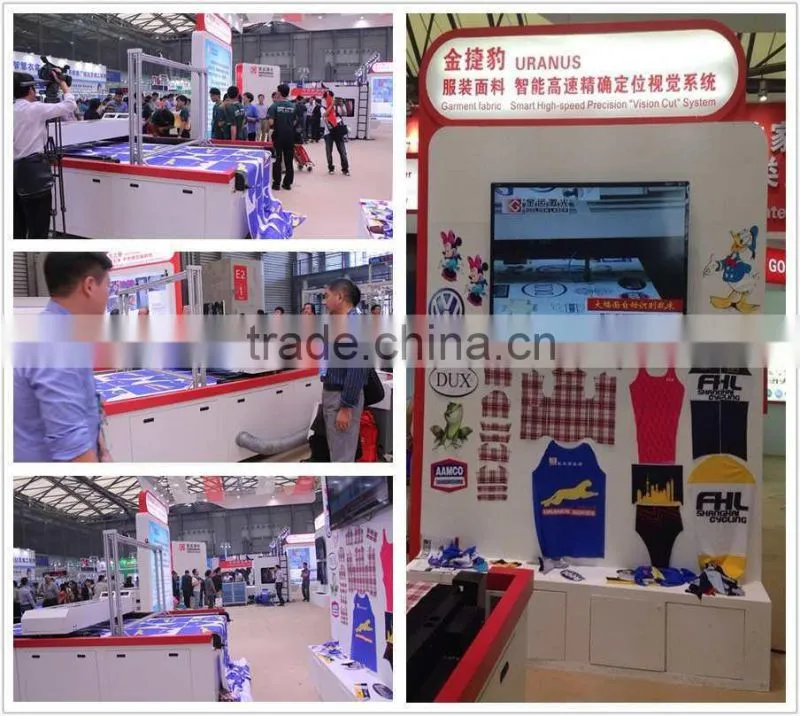

Vision Laser Cutting Machine on CISMA

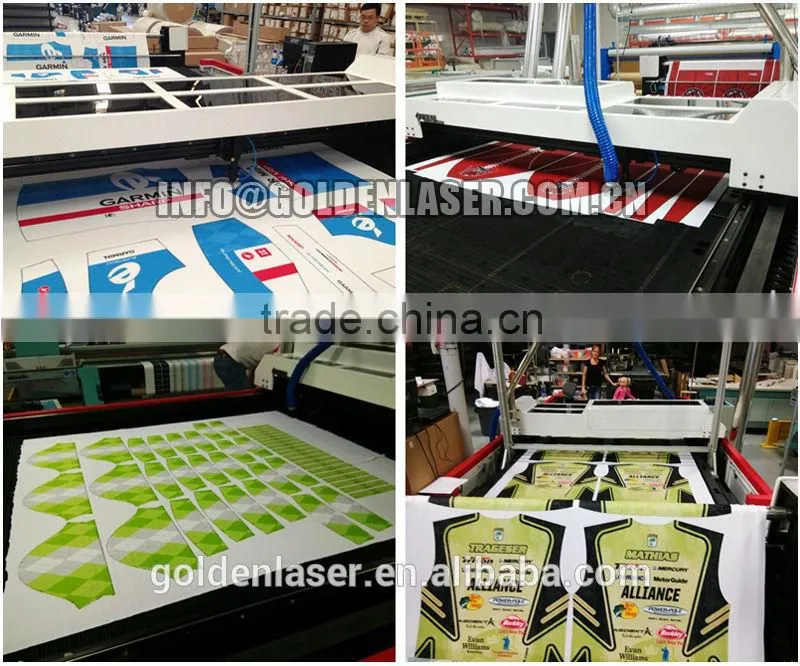

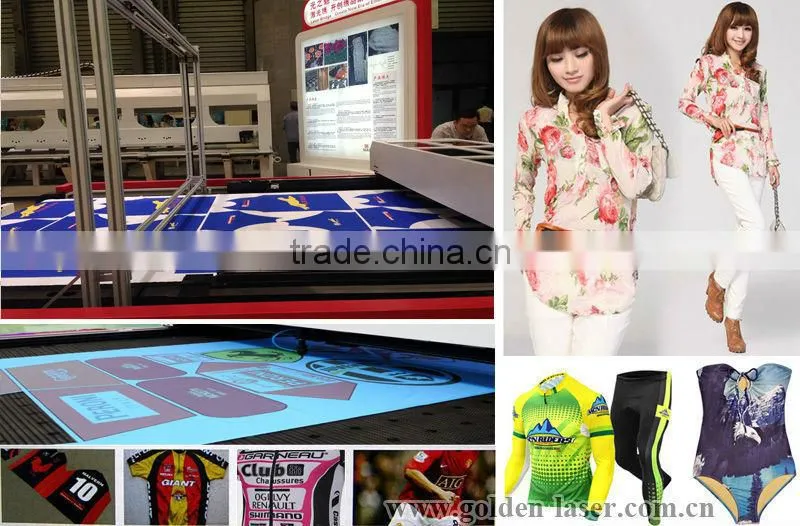

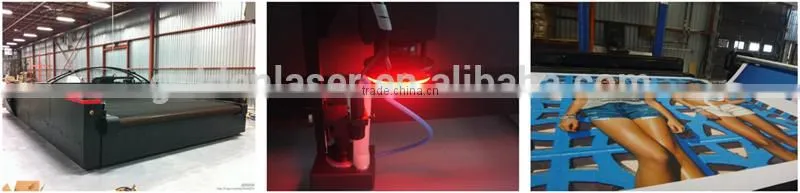

Vision Laser Cutting Machine in our Customers' Factories

Laser Cutting Printed Sublimation Fabric for Sportswear Swimwear Garment Banners Flags

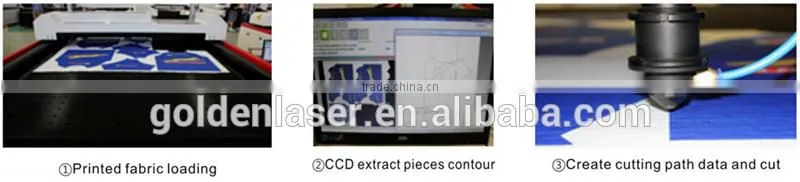

 1. Laser Cutting Machine - on the fly - large format recognition continuous cutting

This function is for patterned fabric precisely positioning and cutting. For example, through digital printing, various graphics printed on garment fabric. In the subsequent of positioning and cutting, material information extracted by the high-speed industrial camera (CCD), software smart identification closed outer contour graphics, then automatically generates the cutting path and finish cutting. Without the need for human intervention, it can achieve continuous recognition cutting of the entire roll printed fabrics.

I.e. by large format visual recognition system, the software automatically recognize the contour pattern of the garment, and then automatic contour cutting graphics, thus ensuring accurate cutting of the fabric.

Advantage of contour detection

• No required the original graphics files
• Directly detect roll printed fabrics
• Automatic without manual intervention
• Identification within 5 seconds on the whole cutting area

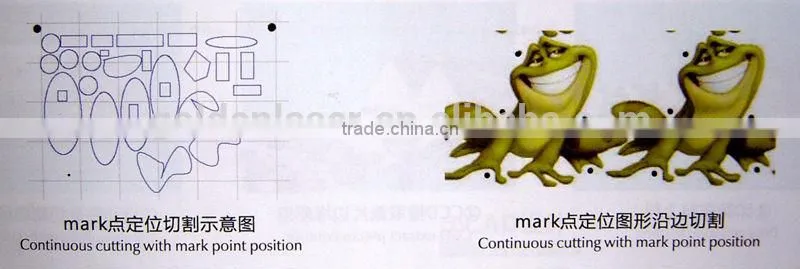

 2. Laser Cutting Machine - Printed Marks Cutting

This cutting technology is applicable to a variety of patterns and labels precision cutting. Especially suitable for automatic continuous printing clothing contour cutting. Marker point positioning cutting no pattern size or shape restrictions. Its positioning is only associated with two Marker points. After two Marker points to identify the location, entire format graphics can be precisely cut. (Note: arrangement rules must be the same for each format of the graphic. Automatic feeding continuous cutting, to be equipped with feeding system.)

Advantage of printed marks detection

• High precision
• Unlimited for the distance between printed pattern
• Unlimited for printing design and background color
• Compensation of processing material deformation

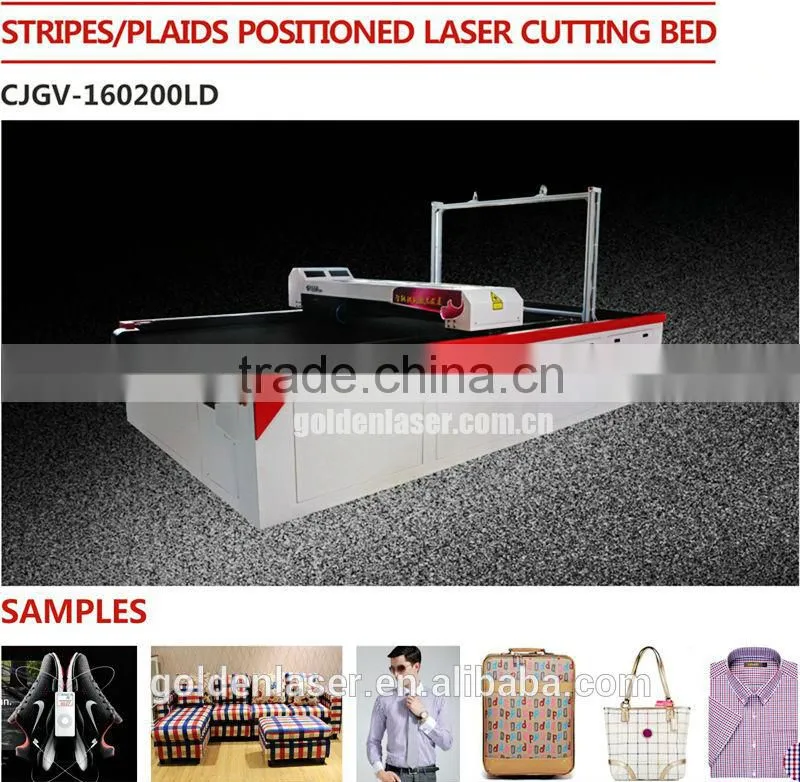

 3. Laser Cutting Machine - Strips and Plaids Cutting

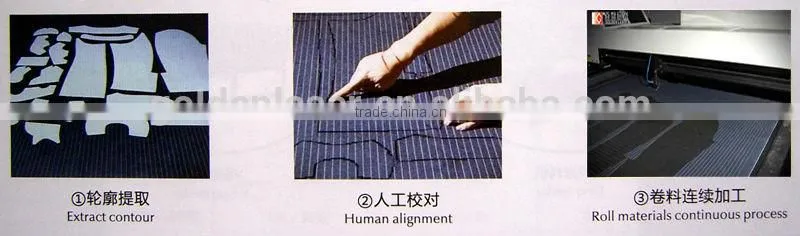

CCD camera, which is installed in the rear of the cutting bed, can recognize materials information such as stripes or plaids according to color contrast. The nesting system can perform automatic nesting according to the identified graphical information and cut pieces requirement. And can automatically adjust the pieces angle to avoid stripes or plaids distortion on the feeding process. After nesting, the projector would emit red light to mark the cutting lines on materials for calibration.

 4. Laser Cutting Machine - Square Cutting for Banners

If you only need to cut square and rectangle, if you don’t have high requirement about cutting precision, you can choose below system.

Work flow: small camera detect the printing marks and then laser cut the square/rectangle.

CJGV-160200LD+100AF Vision Laser Cutting Machine:  http://youtu.be/6s_t8G7UdNU

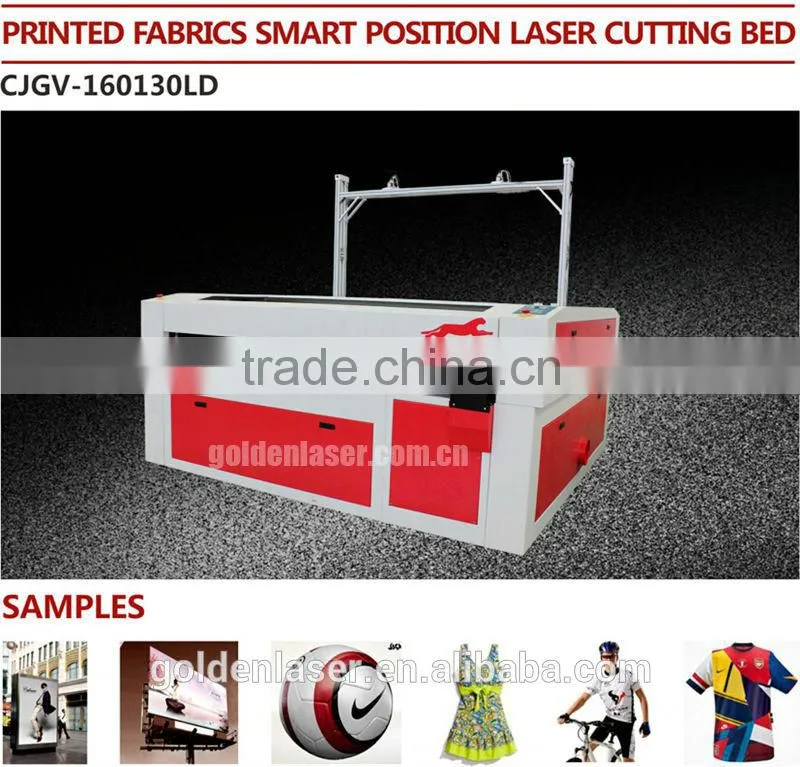

CJGV-160130LD+80AF Vision Laser Cutting Machine:  http://youtu.be/PyLwdtDORTQ

 Why Vision Laser Machine for Cutting Printed Fabric?

1. Faster. Laser cut speed reaches up to 400mm/s. Automated production process with conveyor and auto-feeding system.

2. Precise. High precision, smooth cutting edge, no fraying, no need to rework on cutting edges.

3. Clean. Non-contact laser process. No need to glue paper onto textile, avoiding manual pollutions during scissors cutting process.

4. Save time, save materials, and save labor cost.

5. All-round. Cut a variety of materials, like polyester, polymide, cotton, PVC, vinyl, etc.

6. High flexibility. Cut any kinds of shapes simultaneously.

 Vision Laser Cutting Machine Features

(1) Machine body adopts full steel welding structure. High reliability.

(2) Half flying optical path. High cutting speed, high efficiency.

(3) International top brand motion guide rail and belt. High performance.

(4) Vision system is equipped with high quality camera, LED lamp, control cabinet and encoder.

(5) Vision system has four functions:

      A. Automatic contour extraction;

      B. Printed Marks positioning cutting;

      C. Stripes and Plaids;

      D. Irregular fabric marker making

(6) Negative working platform ensures cutting material flat adsorption

(7) Top and bottom exhausting systems

 Vision Laser Cutting Applicable industries

• Sportswear, sports garment, swimwear, printed sublimation textile & apparel

• Strips & plaids clothing, suits, shirts, dresses

• Fabric with Repetitive Visual Motifs

• Arabesquitic luxury bags, suitcase, sofa upholstery

• Banners, flags, vinyl, polyester

 Laser Cutting Machine Main Technical Parameters

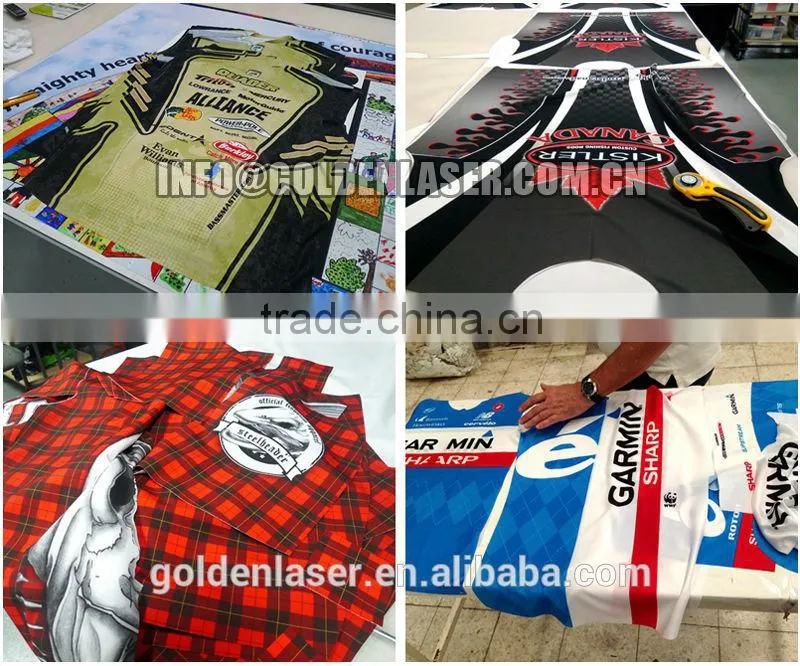

Laser Cutting Sublimation Fabric Sportswear and Printing Apparel

Contour cut is ideal for laser cutting sportswear in particular because of its ability to cut stretchy and easily distorted materials - exactly the type that you get with athletic clothing (e.g. cycling apparel, motorcycle apparel, team kits/jerseys, swimwear etc.).Once cut, synthetic textiles gain a sealed edge. Meaning that they will not fray, this is yet another excellent advantage over traditional textile cutting methods.

Laser Cutting Stripes and Plaid Fabrics for Garment, Sofa, Bag

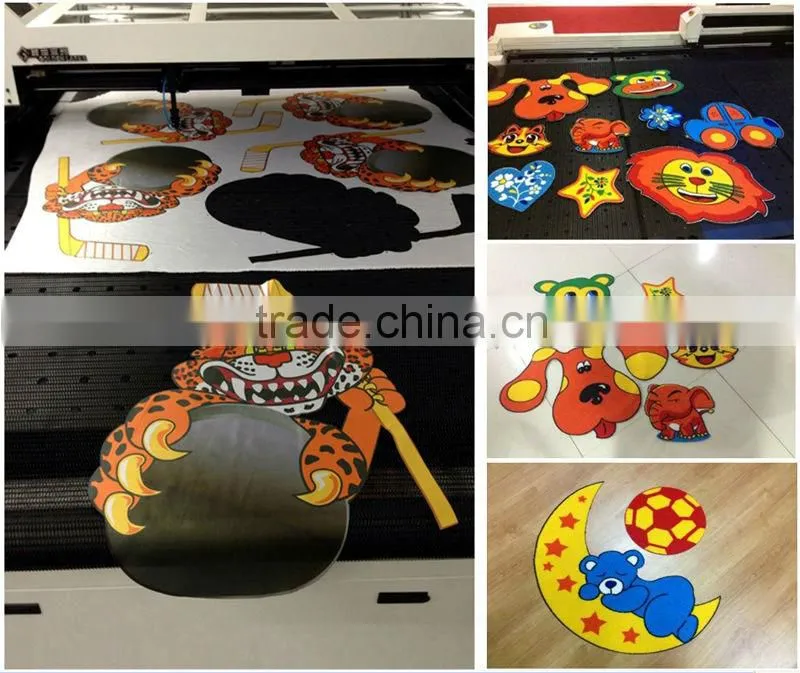

Laser Cutting Digital Printing Textile Fabric

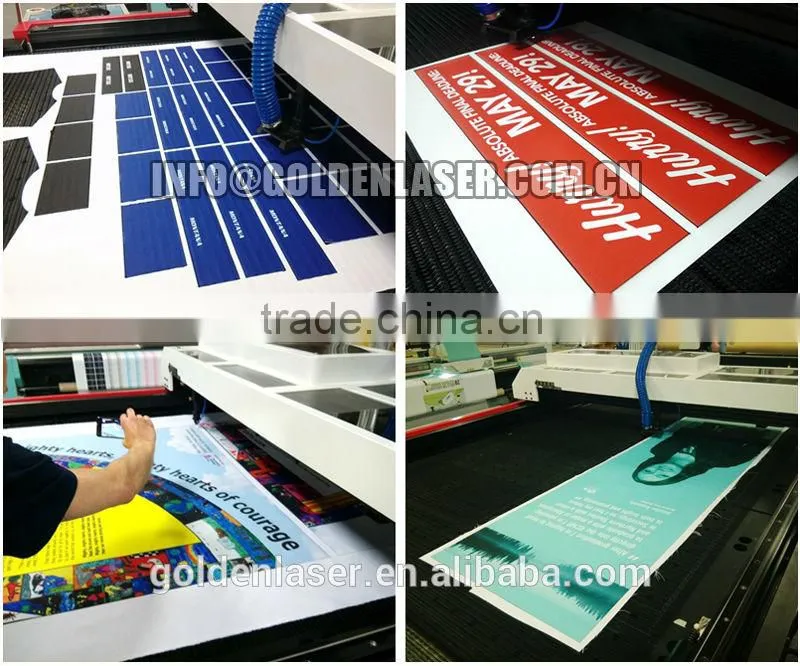

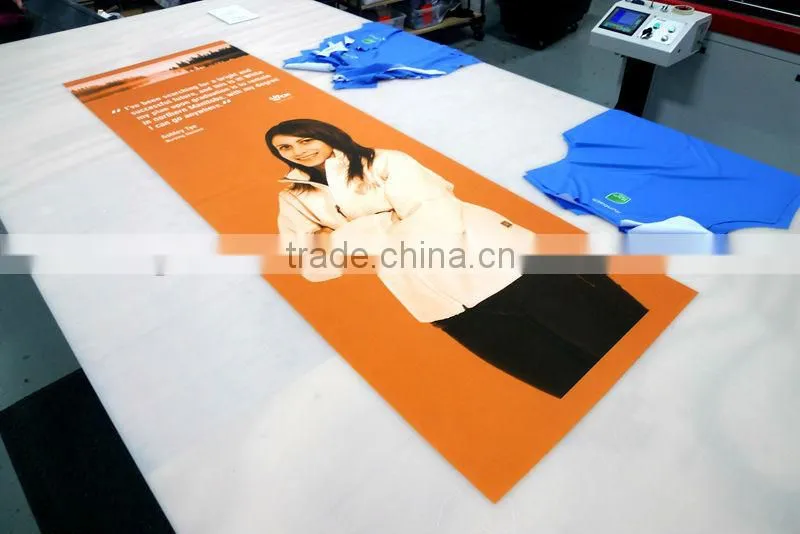

Laser Cutting Large-Scale Banners Flags

• Large Format Fabric Laser Cutting Machine:                    http://youtu.be/rN-a54VPIpQ
• Double Y-axis Laser Cutting Machine for Textile:             http://youtu.be/ed6tIzYwDyE
• Vision Laser Cutting Machine for Printed Fabric:             http://youtu.be/PyLwdtDORTQ
• CCD Laser Cutting Machine for Genuine Leather:          http://youtu.be/SJCW5ojFKK0
• Laser Cutting Machine for Garment Pattern:                     http://youtu.be/6KkLbSSrQ-Q
• Outdoor Products Tent Laser Cutting Machine:               http://youtu.be/lMX-7Gonc0g
• Galvo Laser Engraving Cutting Machine for Fabric:         http://youtu.be/D0zXYUHrWSk
• Flatbed Laser Cutting Machine for Filtration Fabric:        http://youtu.be/lYyumFfv_kA
• Mars Series Nonmetal Co2 Laser Cutting Machine:       http://youtu.be/b_js8KrwGMM

© Laser innovative application service platform

© Leading laser solution provider
© 15 years experience in laser industry
© Laser-World of Photonics Exhibitor since 2005
© Strict quality control and exclusive after-sales service team
© Providing customized laser machines for users and distributors globally

• Installation Service

Installation Services are available with all GOLDEN LASER machines. We dispatch technician to customer's factory for installation and preoperation of machines.

• Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
• Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
Machine warrenty is 1 year. We offer flexible extended warranties if needed.

      1, Are you interested in laser cutting machine? what material do you need to cut?
      2, Is that material in roll or in sheet? printed or not printed? You need contour cutting or normal cutting?
      3, What working size do you need?
      4, After cut, what will be the material used for? (application)
