Specifications
lazer engraving machine1.laser power:30W,50W,65W
2.engraving speed:0-72000mm/min
3.engraving cutting
4.rotary attachment
Co2 Lazer Engraving Machine for Acrylic,Wood,Double Color Sheet
Our precision manufactured lasers and laser systems deliver the highest possible laser engraving performance on a wide variety of materials including wood, glass, plastics, textiles and more. Laser engraving is a non-contact process that will not affect the integrity of the material. Accurately and quickly laser engrave intricate product designs or artwork from any graphics software program. Laser engraving can increase your productivity over traditional engraving methods. Golden Laser systems are flexible and can adapt to your business needs based on material size and production expectations.
Golden Laser Technical Advantages:
(1)Global Pioneer for Double Core Laser Processing System
Adopting leading optic principles, the world’s pioneer double core technology combined with computer theory and control system enable double system to shift perfectly, and thus doubles working efficiency, prolongs lifespan of laser machine, reduces the machine failure and ensures the stability and timeliness of processing.

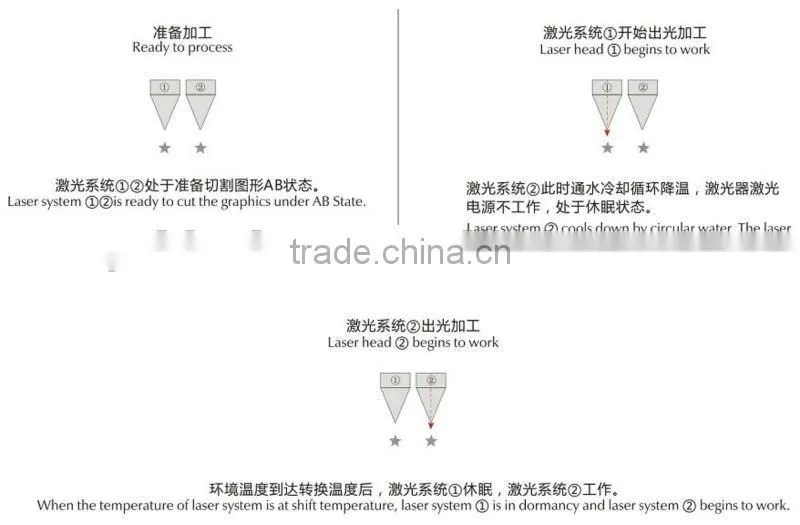

Laser system (1)(2) is automatically self-controlled according to temperature and working time. It ensures the two laser systems to stay in the best working conditions. The two systems can work alternatively - one system is working and the other is in dormancy. In this case, the lift span of the laser can be prolonged by more than 3~5 times.
When failed occurs in one of (1)(2) laser systems, the other system can proceed to work. The processing procedure will not be affected and the failure rate of laser machine will be sharply reduced.

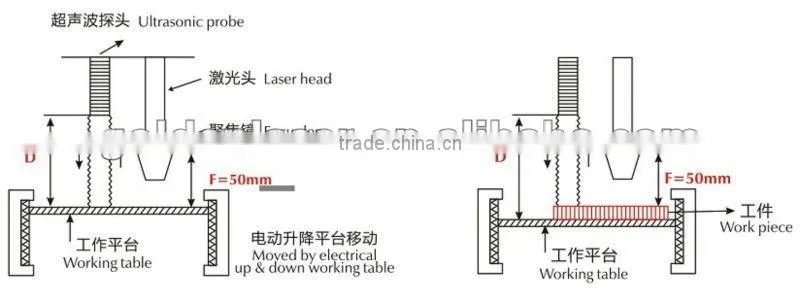

(2)Particular Ultrasonic Auto-focus System
Ultrasonic Auto-focus System solves the problems that inaccurate manual focusing, unflat work pieces and complex parameter adjustment. The machine integrates high precision of laser beam focus and high quality of the work pieces to be processed. Such feature can be mainly used for laser machines with electrical up&down working table.

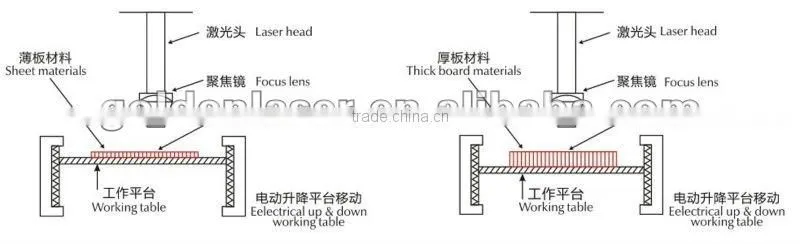

(3)User-friendly Up & Down Working Table
According to different thickness of materials, the working table can be adjusted up and down to ensure the best focus height, ensuring the best processing effects of materials with different thickness.
(4)Auto-nesting
This nesting technology is mainly for middle and small size cutting machine (optional). The nesting software can do smart nesting according to the cutting size of the graphics and the number the work pieces to be nested within the processing area. Compared with manual nesting, it can increase the utilization rate of the material to the maximum, greatly improving working efficiency and reducing time and production cost.

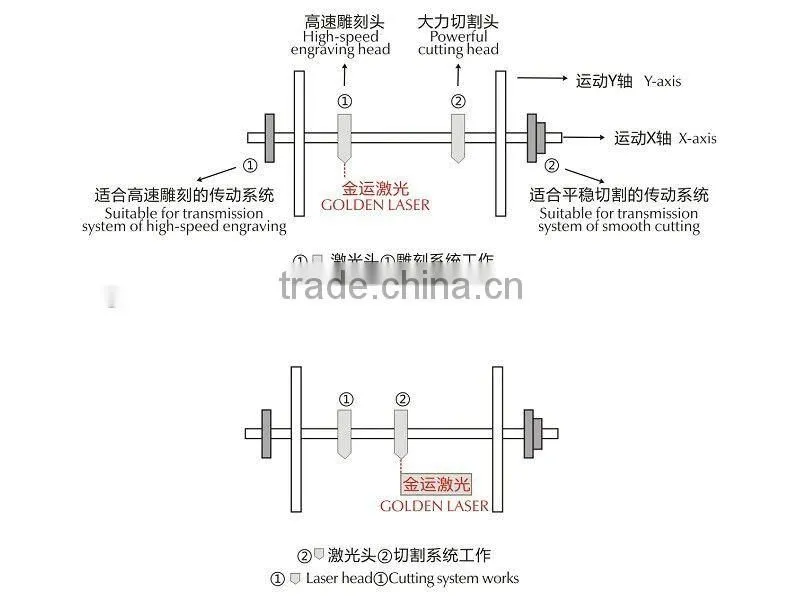

(5) High Efficiency Separated Engraving and Cutting System
In the aspect of processing technique, engraving and cutting have different technical requirements for laser and notion system. One laser processing system cannot ensure high speed and high precision engraving and smooth cutting. Golden Laser innovatively integrates two independent notion systems of cutting and engraving on one machine. It prolongs the service life of machine and greatly improves the processing area and processing quality.
<A>Recommended Model 1: JG-8550 Laser Engraving Machine
- Stable and durable structures, deformation resistance is strong.
- Synchronous belt transmission technology and semi-closed-loop structure, engraving with high precision and fast speed. (engraving speed up to 800-1000mm/s)
- Equipped with 30W RF metal laser. Output beam of high quality, excellent power stability, long life, low use-cost, maintenance-free, and high efficiency.
- With smarting nesting function, material utilization is higher.

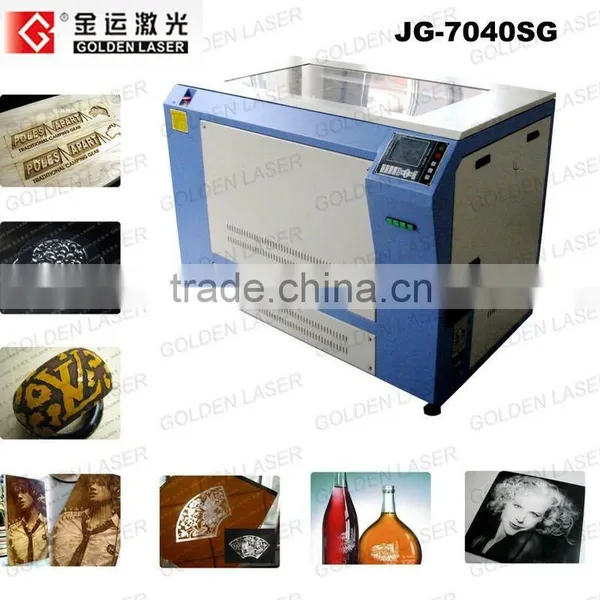

<B>Recommended Model 2:JG-7040SG Laser Engraving Machine
- Honeycomb and aluminous strip panel double-face working table is suitable for processing a variety of materials.
- Electric lift platform and auto-focusing, easy and flexible operation to meet different processing demand.
- Equipped with Rotary attachment for engraving cylindrical objects.
- Complete exhaust and filtering of cutting/engraving emissions possible.
<C>Laser Engraving Application:
Applicable Materials: Wood, Acrylic, Plywood, MDF, Leather, Glass, Plastic, Acryl, PMMA, Perspex, Plexiglas, Plexiglass, Marble, Granite Tile, ABS Double Color Board, Organic Glass, Paper, Paperboard, Cardboard, Marble, Bamboo, Balsa, Rubber Sheet, etc.
Applicable Industries: Advertising, Signs, Gifts & Crafts, Promotional Items, Plaques, Trophies, Awards, Precise Ornaments, Souvenirs, Models, Architectural Models, Furniture, etc.
<D>GoldenLaser’s Software Presentation:
a. Our software is compatible with BMP, AI, PLT, DST, DXF formats;
b. Seamless connection process for different designs from CorelDraw, AutoCAD, etc;
c. Offline control and large memory for data storing, realize the offline control and batch of production work;
d. One computer control multi-machines for decreasing the invest costing and labor force;
e. 5 inches LCD display screen for easy and convenient operations.
|
Technical Parameter | ||
Model NO. |
JG-7040SG |
JG-8550 |
Laser Type |
CO2 DC Glass Laser Tube |
CO2 RF Metal Laser Tube |
Laser Power |
50W |
30W |
Working Area |
700mm×400mm |
850mm×500mm |
Working Table |
Honeycomb and aluminous strip panel double-face working table (Automatic up and down distance: 0-150mm) |
Zinc-iron honeycomb working table |
Engraving Speed |
30000mm/min |
72000mm/min |
Repeating Location Accuracy |
±0.1mm |
|
Motion System |
Step Motor, Off-line motion control system, LCD screen |
Servo Motor, Off-line motion control system, LCD screen, Synchronous belt drive |
Cooling System |
Water cooling and protection system |
|
Power Supply |
AC110V-220V / 50/60Hz |
|
Format Support |
AI, BMP, PLT, DXF, DST, etc. |
|
Standard |
Mini air compressor, 550W exhaust fan |
|
Optional |
CO2 RF laser tube, Rotary attachment, Red light pointer, Constant temperature water chiller, Servo system |
65W CO2 glass laser tube, Strip panel working table |
|
Working size and laser power can be customized according to requirement. | ||
<E>Laser Engraving Samples:
Golden Laser Exhibitions Worldwide:

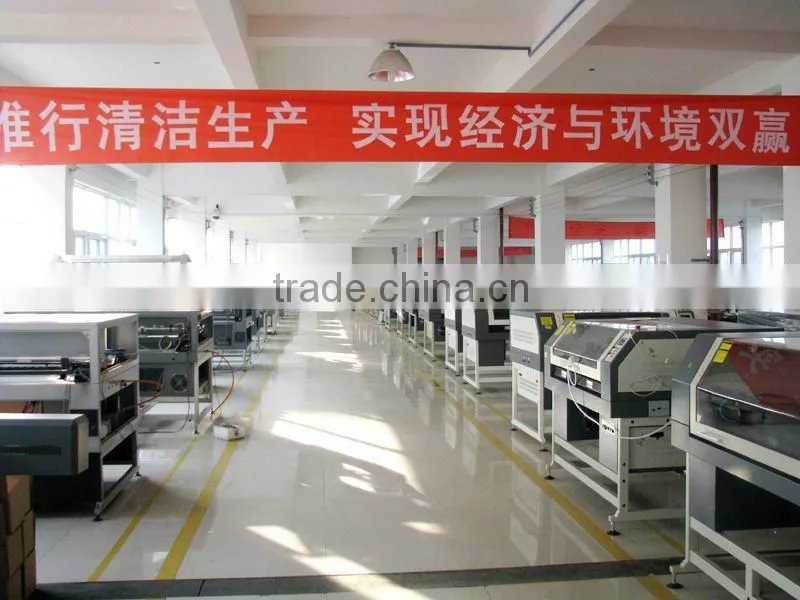

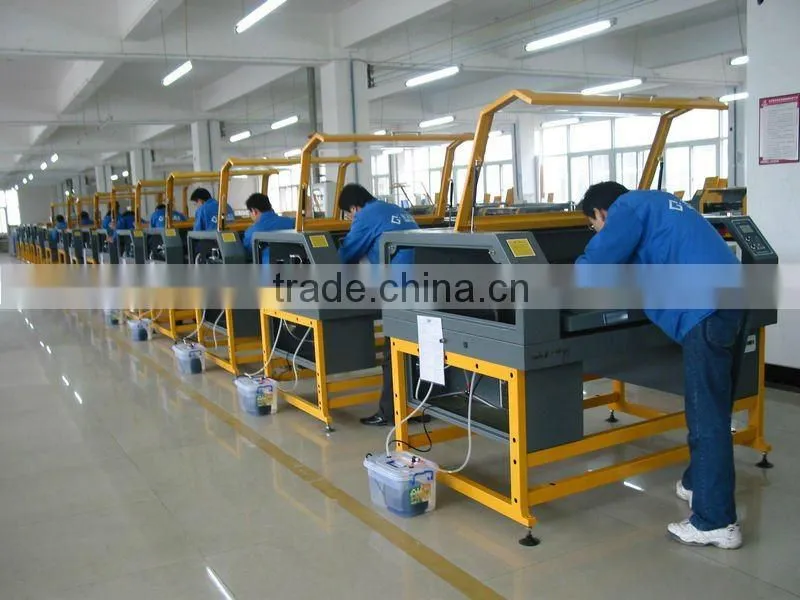

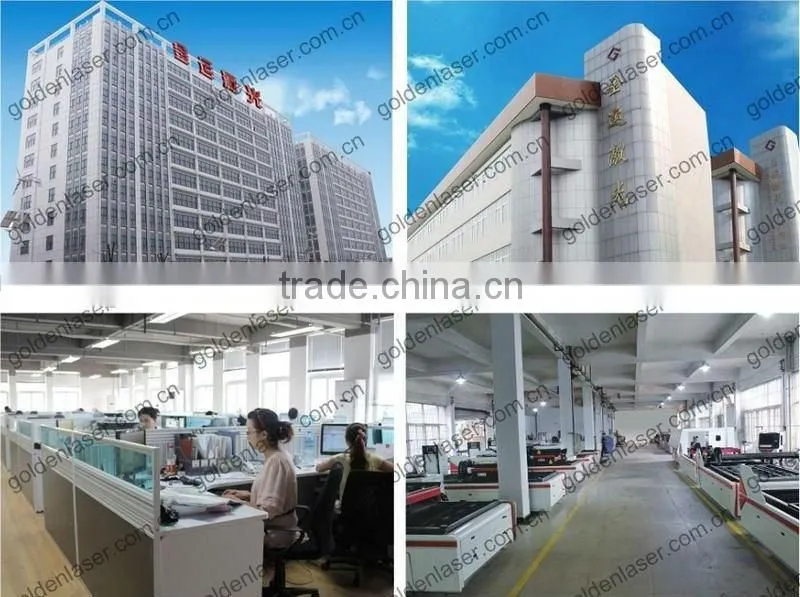

Golden Laser Factory Photos:
