Specifications
wood engraving machine laser1.dual head laser engraving cutting
2.auto up-down table
3.auto focus
4.rotary attachment
Wood Engraving Machine Laser

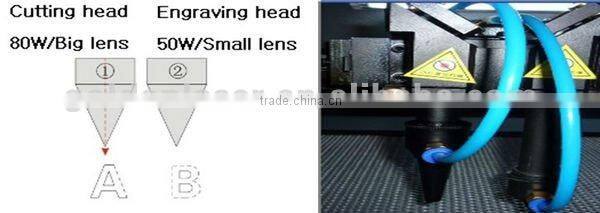

Cutting & Engraving. Goldenlaser patent: Double-core system (we also call it “twin system”)

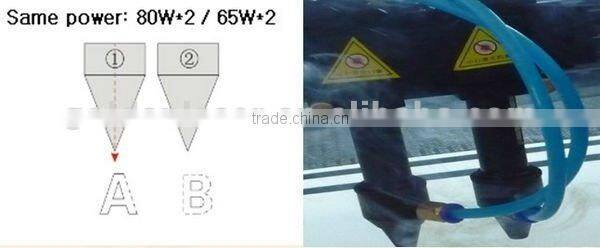

80WX2 / 65WX2 / 80W & 50W /130WX2 /130W & 50W
Twin laser head work alternatively according to temperature and working time
Prolong using life by two times, both laser system stay in the best condition all the time with precise laser beam
Laser Engraver Rotary device-working with up and down table
If you would like to engrave cylinder items such as cups, bottles, and etc…. You can choose the rotary device, together with the up and down working table, you can realize perfect engraving effect, easy operation and nice effect.

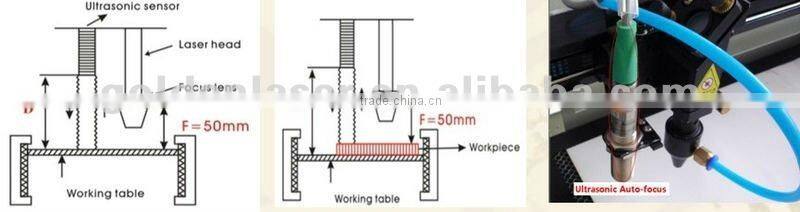

Laser Engraver Ultrasonic auto focus-For up and down table
The ultrasonic auto-focus system helps you to adjust the focus distance automatically, saves you a lot of time when you need to process different thickness of materials.
Laser Engraving Machine Technical Parameter:
Laser type: |
Sealed CO2 glass laser tube |
Working area: |
1250mmX600mm |
Work platform: |
Zinc-iron honeycomb working table (Automatic up and down distance: 0-150mm) |
Laser power: |
65W/80W/100W (for Cutting); 50W (for Engraving) |
Cutting Speed: |
0-48000mm/min |
Engraving Speed: |
0-64000mm/min |
Motion System: |
Offline step motor system |
Cooling System: |
Water cooling and protection system |
Auxiliary Devices: |
Mini air compressor, 550W exhaust systems |
Repeating positioning accuracy: |
±0.1mm |
Working voltage: |
AC220V±5% / 50Hz |
Controlling software: |
Original Golden Laser Software |
Graphic format supported: |
BMP,PLT,AI,DXF,DST,JPG,CDR,HPGL,PNG,DSB,GIF,MNG, TIF,TGA,PCX,JP2, JPC,PGX,RAS,PNM,SKA,RAW etc |
Optional configuration: |
Auto focus system, Rotary engraving system, Double core system, Strip panel working table, Constant temperature water chiller, Servo system |
Machine dimension: |
2.08*1.40*1.30m |
Packing dimension: |
2.18*1.48*1.50m |
Net weight: |
434kg |
Gross weight: |
525kg |
Packing: |
Plywood case |

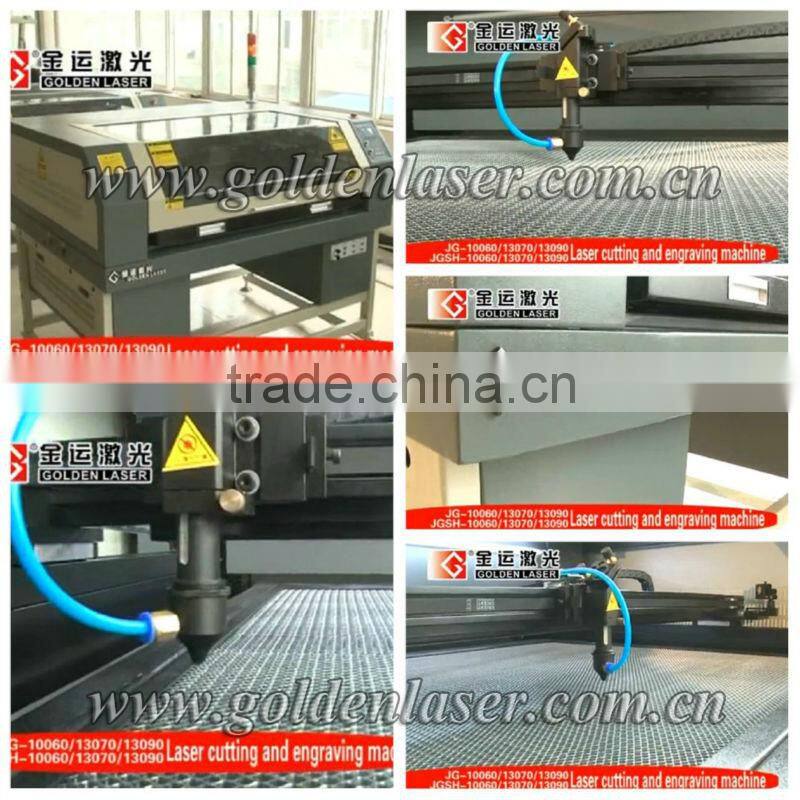

Related Models: |
JG-7040SG, 700x400mm, 30W/50W/65W |
JG-10060/JGSH-10060,1000X600mm, 65W | |
JG-13070/JGSH-13070, 1300X700mm, 50W/650W/80W/100W | |
JG-13090DT, 1300X900mm, 80W/100W/130W/150W | |
JG-13090SG/JGSH-13090SG, 1300X900mm, 65W/80W/100W/130W | |
CJG-130250DT, 1300X2500mm, 80W/100W/130W/150W/200W |
Laser Engraving Machine Specifications:
1.GOLDEN LASER Patent: Dual core laser processing system. Double combined laser heads work alternately. Stable running with separate laser tube/laser power supply makes longer working life of the machine.
2.Engraving and cutting systems can automatically distribute the two laser heads. Two laser heads can be freely switched to the other.
3.With automatic up and down working table, it is suitable for cutting and engraving different thickness materials. It greatly improves working efficiency and processing quality.
4.automatic focus system, ensuring the best focusing and processing effect.
5.Equipped with rotary attachment, it is suitable for engraving on cylindrical objects. Most suitable for engraving cutting double-color board, acrylic, wood, etc.
Laser Engraving Application:
Applicable Materials: Wood, Acrylic, Anodized Aluminum, Plywood, MDF, Veneer, Leather, Glass, Plastic, Acryl, PMMA, Perspex, Plexiglas, Plexiglass, ABS Double Color Board, Organic Glass, PVC, Paper, Paperboard, Cardboard, Marble, Bamboo, Balsa, Rubber Sheet, etc.
Applicable Industries: Advertising, Signs, Gifts & Crafts, Promotional Items, Plaques, Trophies, Awards, Precise Ornaments, Souvenirs, Nameplates, Models, Architectural Models, Furniture, etc.
Laser Engraving Cutting Samples:
Golden Laser Overview:
Golden Laser Exhibitions:
