Specifications
laser engraving cutting machine1.gantry X,Y axis cut
2.galvanometer laser engrave
3.for mdf,wood,acrylic,plastic,paper
4.CE
Laser engraving cutting machine
Detailed configuration:
A. Japan imported YASKAWA Servo motor and drive systems
B. GoldenLaser control system
C. South Korea patented high speed linear motion guide rail
D. Chinese, English LCD, humanized control panels
E. CO2 glass laser tube / CO2 RF metal laser tube
F. Optical system uses the world’s top USA II-VI laser optic lens
G. Fully enclosed professional cooling water circulation system
H. Complete exhaust and filtering systems of cutting emissions possible
I. Off-line control system. Easy to use. One computer controls multiple laser machines for cost saving.
Technical Parameter:
Model No.: |
JMSZJJG(3D)-130250DT |
Laser type: |
CO2 RF metal laser tube |
Working area: |
1300mmX2500mm |
Galvo Engraving Area (one time): |
450mmX450mm |
Working table: |
Strip panel working table |
Laser power: |
100W / 150W / 200W / 300W / 400W |
Processing speed: |
0-360000mm/min |
Motion System: |
Off-line Servo control system, Ball crew driving, LCD screen |
Cooling System: |
Constant temperature water-chiller |
Interface: |
Offline 2.0 USB control system, USB cable connection, internet cable connection and U disk copy |
Auxiliary equipments: |
Exhaust-fan, air-exhaust pipe, mini air compressor, Automatic control high pressure blower valves |
Repeating precision: |
±0.1mm |
Working voltage: |
AC220V±5% / 50Hz |
Controlling software: |
Original Golden Laser software |
Graphic format supported: |
BMP,PLT,AI,DXF,DST,JPG,CDR,HPGL,PNG,DSB,GIF,MNG, TIF,TGA,PCX,JP2, JPC,PGX,RAS,PNM,SKA,RAW etc |
Compatible software: |
Auto CAD, CorelDraw X2/X3/X4, Photoshop, etc |
Machine dimension: |
3.64*2.22*1.32m |
Packing dimension: |
3.72*2.30*1.50m |
Net weight: |
1050kg |
Gross weight: |
1210kg |
Related Models: |
JG-10060/JGSH-10060,1000X600mm, 65W |
JG-13070/JGSH-13070, 1300X700mm, 50W/650W/80W/100W | |
JGSH-12560SG, 1250X600mm, 65W/80W/100W cutting, 50W engraving | |
JG-13090DT, 1300X900mm, 80W/100W/130W/150W | |
JG-13090SG/JGSH-13090SG, 1300X900mm, 65W/80W/100W/130W | |
CJG-130250DT, 1300X2500mm, 80W/100W/130W/150W/200W |
Specifications:

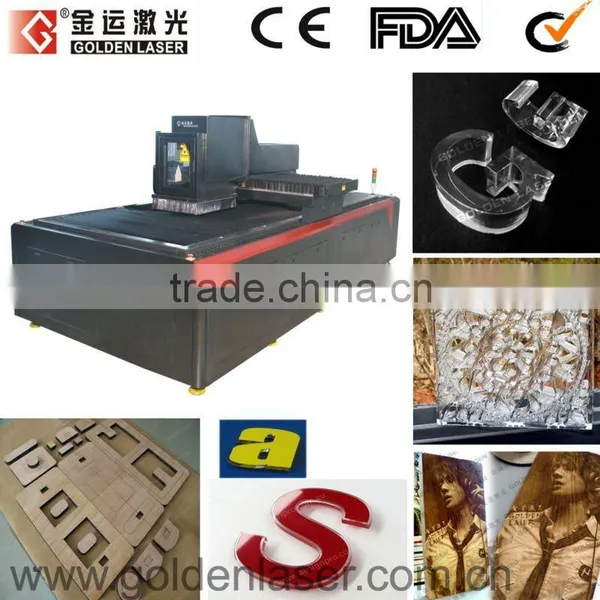

This laser machine combines two different laser functions together. X-Y Gantry system for large format and high precision cutting; Germany Galvo system for fast and precise engraving. Two systems only share one laser tube and can switch freely. Ball screw transmission ensures the two systems running stable. Galvanometer scanning system for very fast and large pattern engraving. Coherent or Synrad CO2 RF metal laser tube produces high quality laser beam, stable power and long working life. Low use-cost, maintenance-free and high efficiency.
Application:
Applicable Materials: Wood, Plywood, Bamboo, MDF, Balsa, Veneer Inlays, Acrylic, Acryl, PMMA, Perspex, Plexiglas, Plexiglass, Organic Glass, ABS, Double Color Board, Rubber Sheet, Plastic, Industrial Plastics (PP, PE, PET, PVC, ABS, PA, PS, PC, etc.), Paper, Corrugated Paper, Cardboard, Pressboard, Paperboard, Chipboard, Thin Sheet Metal, etc.
Applicable Industries: Advertising Industry, Advertising Signs, Advertising Letters, Nameplates, LED light guide panels (LGP), Printing & Packing Industry, Gifts & Crafts, Promotional Items, Plaques, Trophies, Awards, Bangles, Badges, Tags, Decorations, Souvenirs, Precise Ornaments, Models, Architectural Models, Furniture Marquetry, Parquet Floors, etc.
Laser Engraving Cutting Samples:
Golden Laser Exhibitions Worldwide:
Laser Engraving Cutting Machine for Sale!
