High quality HDMI Matrix 4 x 2 With EDID Control

Specifications

1. Features

   1.         Support display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz

   2.         3D HDMI 1.4a video format support.

   3.         3D video support including Frame packing for all 3D formats up to a 297MHz TMDS clock.

   4.         Supports deep color up to 48-bit per pixel.

   5.         HDCP 1.4 support (INPUT), HDCP v1.4a protocol compliant (OUTPUT).

   6.         Supports the reception of any audio data conforming to the HDMI specification 1.4 such ad L-PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR

   7.         Full colorimetry including sYCC601,Adobe RGB,Adobe YCC601,xvYCC extended gamut color

   8.         Operates for TMDS clock frequencies up to 300MHz

   9.         Supports EDID control via EDID Selector.




   Package

1. HDMI Matrix ------------------------------------------------------------------------------------ 1PCS

2. Adaptor ------------------------------------------------------------------------------------------- 1PCS

3. Operation Manual ------------------------------------------------------------------------------- 1PCS

4. Remote Controller---------------------------------------------------------------------------------1PCS







   Specifications

   1.         Frequency Bandwidth                2.97Gbps

   2.         Input Ports                         4 x HDMI Female input ports

   3.         Output Ports                        2 x HDMI Female output ports

   4.         Power Supply                       DC 5V 1A

   5.         ESD Protection Human Body Model:    ± 8kV (air-gap discharge)

   ± 4kV (contact discharge)

   6.         Dimensions (mm)                   85(W) X 192 (D) X 26 (H)

   7.         Weight(g)                          450

   8.         Operating Temperature                         0°C ~ 40°C / 32°F ~ 104°F

   9.         Storage Temperature                -20°C ~ 60°C / -4°F ~ 140°F

   10.       Relative Humidity                  20 ~ 90% RH (Non-condensing)

   11.       Power Consumption (Max)          5W




   Operation Controls and Functions

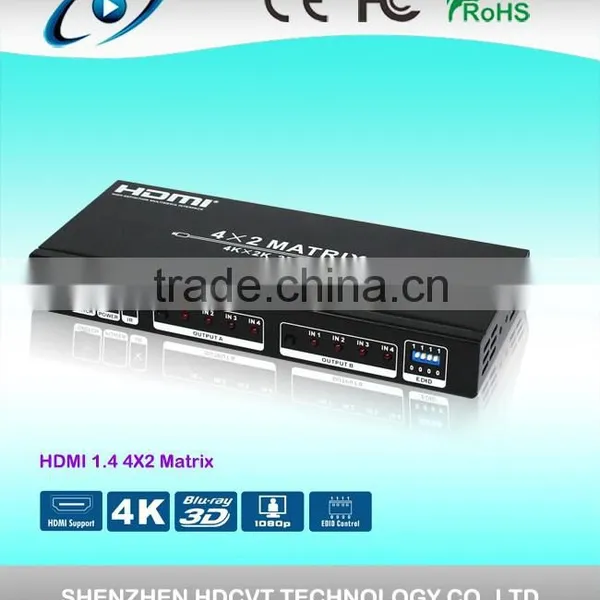

   Front Panel

1.       ON/OFF: Power on/off switch.

2.       POWER LED:This red LED illuminate when the device is connected with power supply.

3.       IR IN: Remote control signal receive.

4.       OUTPUT A: Press this button to select input sources to HDMI OUT A,and the LED will indicate the corresponding input source.

5.       OUTPUT B: Press this button to select input sources to HDMI OUT B,and the LED will indicate the corresponding input source.

Rear Panel

1. INPUT PORTS: LED1-4 illuminate when the HDMI signal plug in INPUT 1-4 port.

   INPUT 1-4 ports are where you connect the HDMI source.

2. OUTPUT PORTS: LED A-D illuminate when the TV plug inOUTPUT A-D ports.

    OUTPUT A-D ports are where you connect the HDTV or monitor with HDMI cable

3. RS232: This port can control the matrix via PC.

4. DC 12V: Plug the 12V DC power supply into the unit and connect the adaptor to AC wall outlet.



   EDID Selector: SelectHDMI output signal format via EDID Selector.

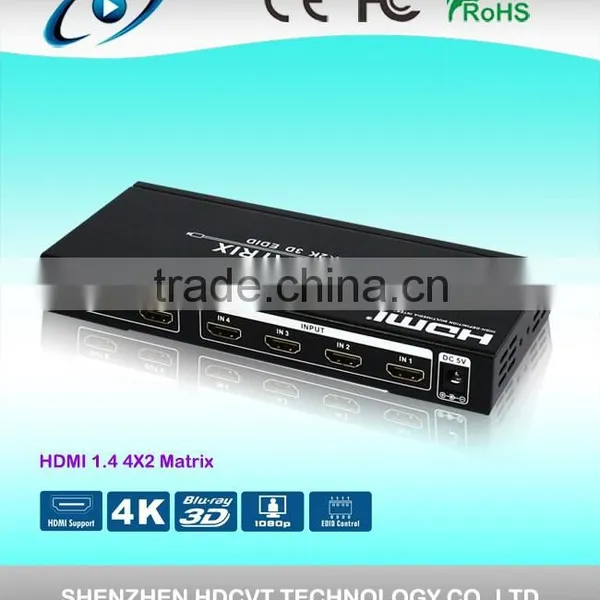

Rear Panel

1.         HDMI OUTPUT: These slots are where you connect the HDTV or monitor with HDMI cable.

2.         HDMI INPUT: These slots are where you connect the HDMI source output from DVD, PS3.

3.        DC IN: Plug the 5V DC power supply into the unit and connect the adaptor to AC wall outlet.

  Application Example

Remote control

OUTPUT A: Press IN1IN2IN3IN4 button will fast switch to select input source to HDMI OUTPUT A, and the LED will indicate the corresponding input source. Press LEFT/RIGHT button OUTPUT A will cycle from input IN1IN2IN3IN4.

OUTPUT B: Press IN1IN2IN3IN4 button will fast switch to select input source to HDMI OUTPUT B, and the LED will indicate the corresponding input source. Press LEFT/RIGHT button OUTPUT B will cycle from input IN1IN2IN3IN4.
