Home > Manufacturing & Processing Machinery > Rubber Machinery > Rubber Raw Material Machinery > Beltwin All in One CE Air Cooling Portable Lightweight Press for PVC PU Conveyor Belts

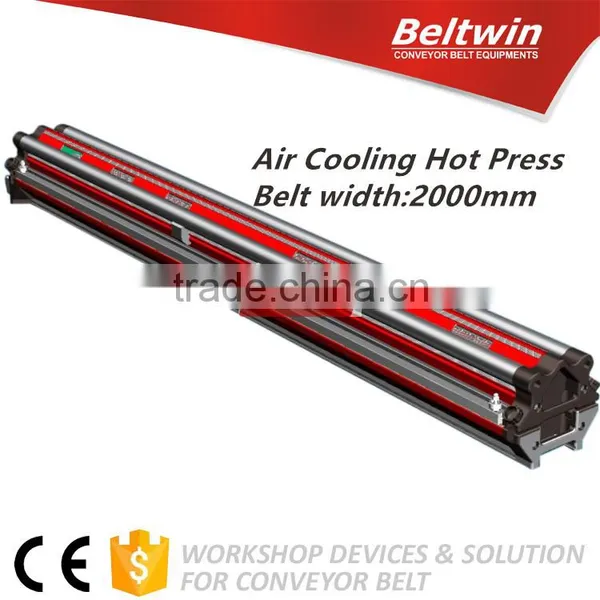

Beltwin All in One CE Air Cooling Portable Lightweight Press for PVC PU Conveyor Belts
US$ 7,000 - 10,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Vulcanizer
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Beltwin Stainless Steel Pvc pu Flat Belts Finger Joining MachineUS$ 2,000 - 20,000MOQ: 1 Unit -
2016 Beltwin New Aluminum Polyurethane Flat Belt Finger Punching MachineUS$ 1,000 - 5,000MOQ: 1 Unit
-
Beltwin OEM Spot Belt Repair Press for Rubber Conveyor Belt Width Under 1600mmUS$ 2,000 - 8,000MOQ: 1 Unit
-
2016 New Beltwin Sectional Vulcanizing Belt Press for Splicing Rubber BeltUS$ 3,000 - 30,000MOQ: 1 Piece
-
Beltwin 1200mm PVC PU Conveyor Belt Hot Heating Jointing PressUS$ 2,000 - 10,000MOQ: 1 Unit
Condition
New
Type
Vulcanizer
Place of Origin
Zhejiang, China
Brand Name
Beltwin
Model Number
PA 2000
Voltage
220V 230V 380V 400V 460V
Power(W)
16KW
Dimension(L*W*H)
2370x370x310mm
Weight
100KGS
Certification
CE
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
More Considerate; More Professional
Beltwin CE Air Cooling Portable Lightweight Press for PVC PU Conveyor Belts novitool fonmar Habasit flexco aero
All our services just go for you
Beltwin’s rich experience in conveyor belt vulcanizing industry
allows for higher technical requirements of customers
Specifications
The PA series air cooled press, have different els for width from 24″ (300 mm) to 84″ (2100 mm)
Used for PVC PU PVK belt etc. thermoplastic belt materials
- Fast Splicing: include heating time and cooling time, no more than 12 mins.
- All in one design: The press has an integrated air-cooling system and also air compresor inside. To ensures that the belt is quickly cooled down and auto press on, without water pump or aditional air compresor.
- Easy to use and assemble, how to operate pls freely to refer to below video.
- Reliable and automatic Temperature Control with time control (in one meter, also you can set by yourself). High quality Eurotherm controller.
- Air pressure controller (set the air pressure and display the current pressure), High quality SMC controller.
- Voltage: 220V or 380V, if special voltage pls freely to inform us.
Datasheet
| Model | 300 | 600 | 900 | 1200 | 1500 |
| Effective length | 305mm / 12″ | 610mm / 24″ | 914mm / 36″ | 1219 mm / 48″ | 1524 mm / 60″ |
| Effective width | 120mm / 4.7″ | 120mm / 4.7″ | 120mm / 4.7″ | 120 mm / 4.7″ | 120 mm / 4.7″ |
| Weight lower part | 11.5 kg | 18kg | 23kg | 28.5 kg | 32 kg |
| Weight upper part | 11.5kg | 12.5kg | 17kg | 25.5 kg | 30 kg |
| Total weight | 23kg | 32kg | 41kg | 54 kg | 62 kg |
| Overall Height | 505mm | 805mm | 1105mm | 225mm | 225mm |
| Max. pressure | 2 Bar / 28 PSI | 2 Bar / 28 PSI | 2 Bar / 28 PSI | 2 Bar / 28 PSI | 2 Bar / 28 PSI |
| Dimensions for transport (L x W x H) | 770x370x310mm | 1070x37x310mm | 1370x370x310mm | 1626*370*400mm | 1926*370*400mm |
| Weight for transport | 40 kg | 56 kg | 67 kg | 84 kg | 96 kg |
please freely to refer to our website:
Operation video:http://youtu.be/eHigdemHPk8

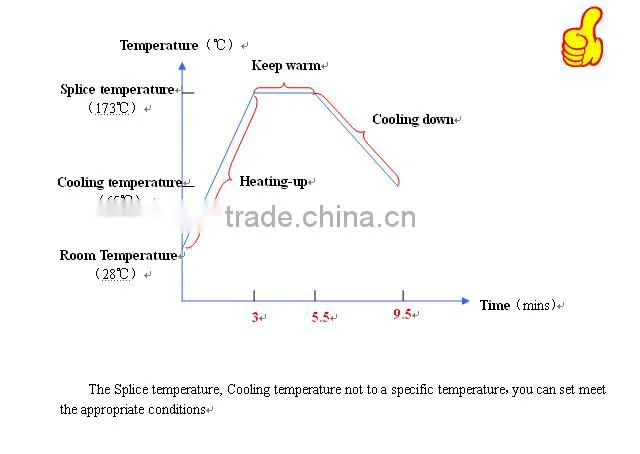

working process
Stronger type Vs Standard type
1.splice space : 150mm instead of 130mm
ure:around 2.3bars instead of 2bars
3.won't be bended in the middle body when work
Belt thickness can reach 10mm.
Certifications

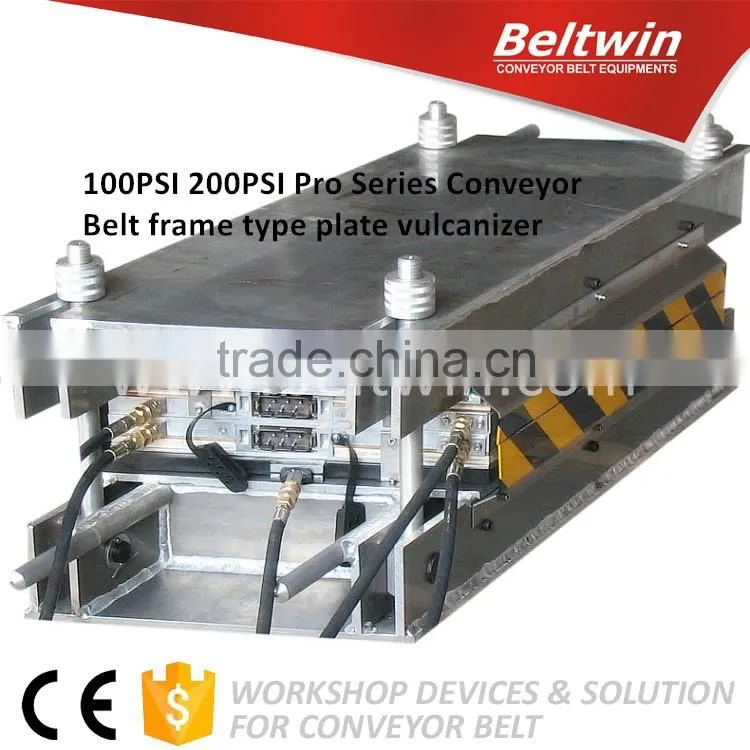

other machines
More Products as Following
|
|
|
Our Services
Sincerely Looking forward to your inquiry
Our products and service are worth of your serious consideration
Scan QRcode to get into FACEBOOK
More informaiton pls freely to visit our website:
