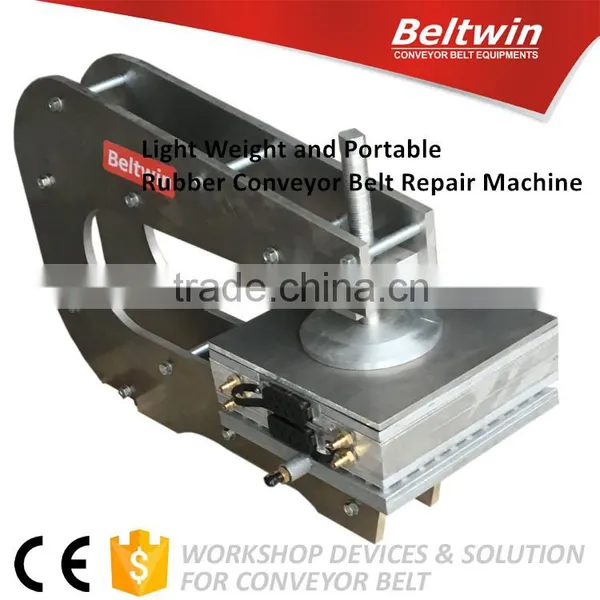

Beltwin OEM Spot belt Repair Press for Rubber Conveyor Belt width under 1600mm
1.Convertor Belt Repairs
2.Conveyor Belt Splicing on Steel Cord Belts
3.Conveyor Belt Splicing,Fabric Belts,PVC
4.Transmisiion Belts, Tangential Belt, Spindle Tape Splicing
1.Features of a Spot Repair Vulcanizer
1.Portable due to the low weight with two components
2.spot repairs on rubber conveyor belts
3. smaller controller, also with temperature & time automatic controler
4.Easier operation with aluminum alloy body
2.Specification
1.Pressure: 0.3~0.5Mpa
2.Power :1.6~1.7KW
3.Voltage: Single phase 220V or 380V
4.Heating platen dimension: 350*350mm, also suitable for broken size 250*250mm
(Almex SSP repair presses use 300*300mm heating platen)
When order or inquiry, pls note special requirements:
(FRENCH:Quand l'ordre ou de l'enquête, pls offrir informations ci-dessous)
(SPANISH:Cuando pedido o consulta, pls ofrece a continuación información)
Voltage /Pressure/ Temperature/ Heating platen dimension
( ACCPET OEM for special requirment )
Model |
DDQ-1 DDQ-2 |
DJQ |
DZQ |
Application |
For small holes |
For the side of the belt, long rips |
Multifunction, combined type used for small holes or long rips |
Conveyor Belt type |
Canvas, nylon, steel cord belt |
Canvas, nylon, steel cord belt |
Canvas, nylon, steel cord belt |
Repair Belt width |
650-2600 DDQ-1 used for wider than 1400mm DDQ-2 used for under 1400mm |
650-2600 |
650-2600 |
Max rips size (mm) |
250x250 |
100 (200) x 900 100 (200) x 1400 |
250x1380 |
Heating plate size (mm) |
350x350 |
160x1000 160x1500 |
350x1500 350x1000 |
Temperature range |
0~200°C |
0~200°C |
0~200°C |
Voltage |
380V or 220V or other special voltage |
380V or 220V or other special voltage |
380V or 220V or other special voltage |
Pressure |
0.4Mpa |
0.4Mpa |
0.4Mpa |
More informaiton pls freely to visit our website: m
2. Main Components

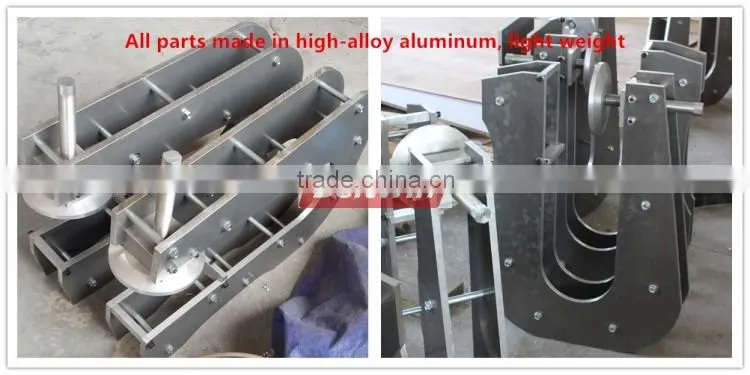

1.Speical profiles for machine body made of high-alloy aluminum

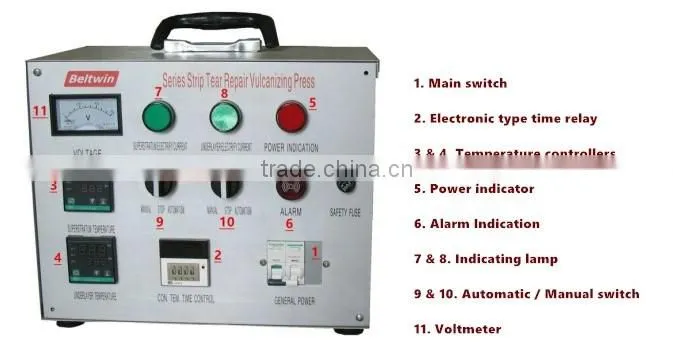

2. Auto Controller

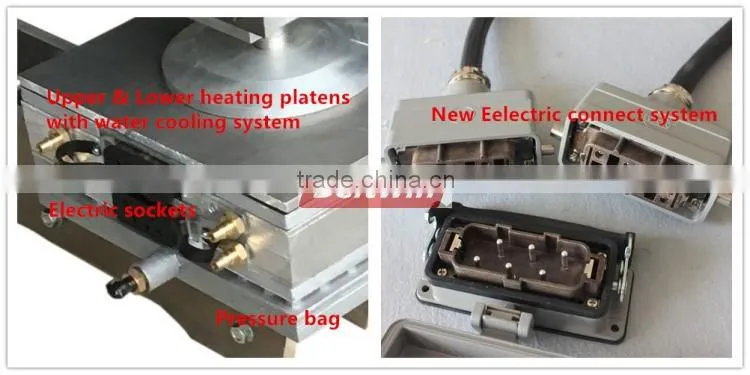

3.New Electric Connect System
3. Shipping records, air shipment and sea shipment bill of ladings

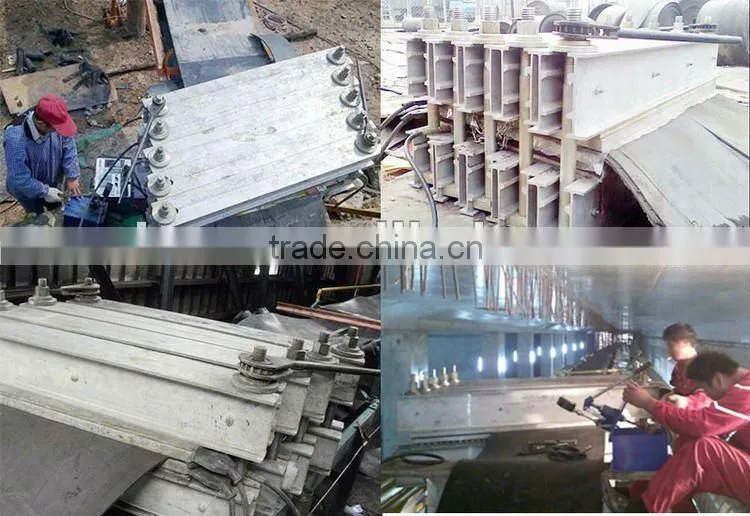

4.Photos from our Customers
|
|
|
|
Sincerely Looking forward to your inquiry
Our products and service are worth of your serious consideration
