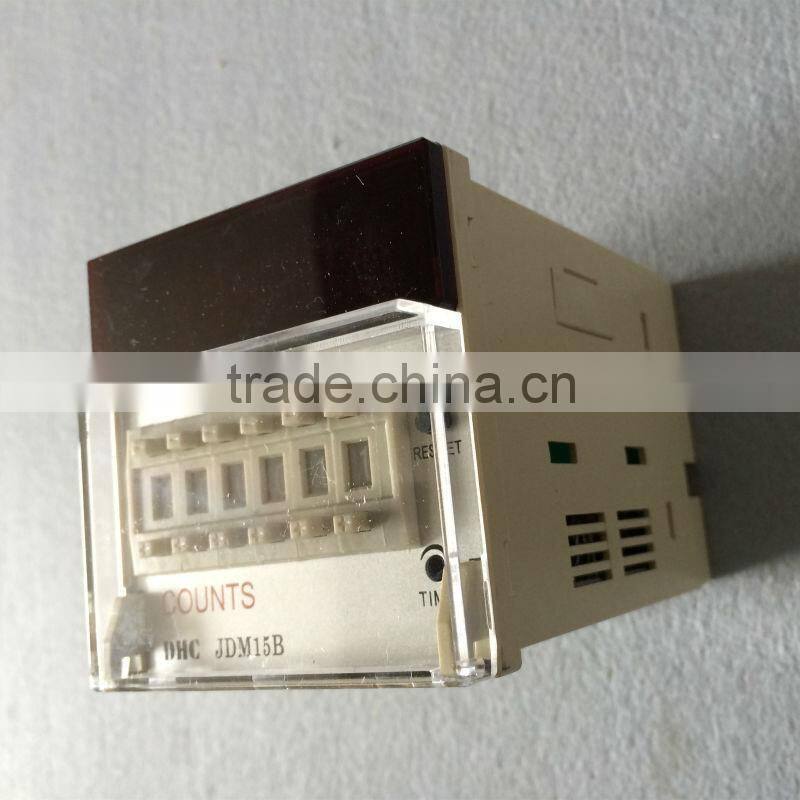

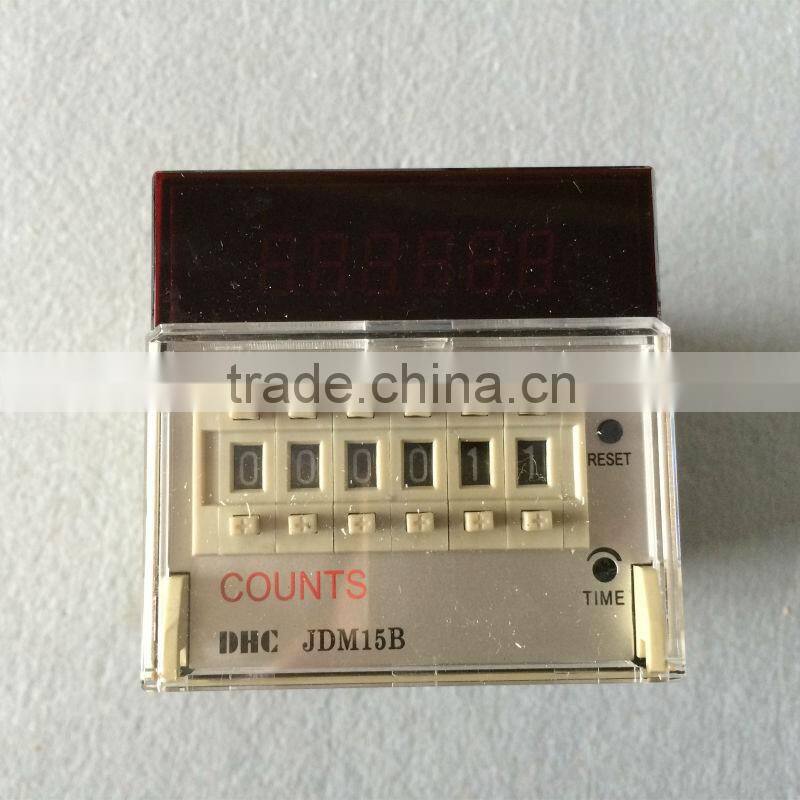

Help CenterJDM15B Temperature Control Unit
Related Products
-
JDM15B 6 Digit LED Display Digital Preset CounterUS$ 15 - 25MOQ: 10 Pieces -
Temperature Controller Digital-display Counter JDM15BUS$ 15 - 25MOQ: 10 Pieces
-
JSS48B Digital Din Rail Timer SwitchUS$ 15 - 25MOQ: 10 Pieces
-
JSS48B Preset Digital Time RelayUS$ 15 - 25MOQ: 10 Pieces
-
JSS48B Countdown Digital TimerUS$ 15 - 25MOQ: 10 Pieces
Specifications
1.6 digit LED2.5 choices of input modes and 3 choices of output modes
3.Max. counting speed:1000 counts per second
Features
·DIN-sized(72×72mm)
·0.4 Inch LED Display
·High speed response allows 1,000 counts per second
·INPUT models,UP /DOWN/ UP DOWN A, B, C.
·N, F, R, C output models.
·Memory backup
·Solid-state type:Open collector 30 VDC max 100mA max
Specification
·Power supply: AC/DC100~240V
·Count rang: 0~999999
·Counting speed: 16.7mS (30cps), 0.5 mS (1000cps)
·Memory backup ≥ 10 years
·Output transistor: 100Ma 30V
·INPUT SIGNALS: No voltage input: 4.7KΩ MAX
Volt INPUT: L=0~2V H=4~30V
·Contacts output: 2C 3A AC 250V (resistance load)
·External power supply: DC12V 100mA(max)
·Temperature: -10~40C
·Reset: MIN. pulse width for external reset;1~20ms, Manual reset, Power reset: 2s
·Panel cutout: 68×68mm
·Weight: 0.4kg

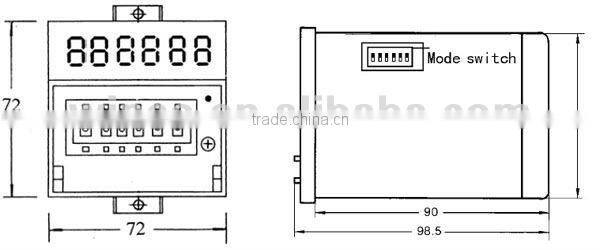

Dimension

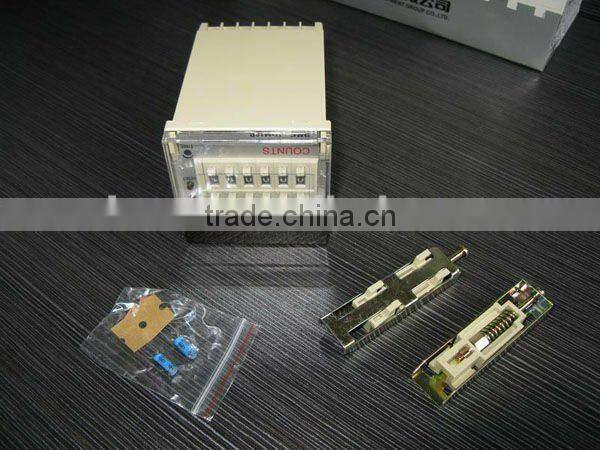

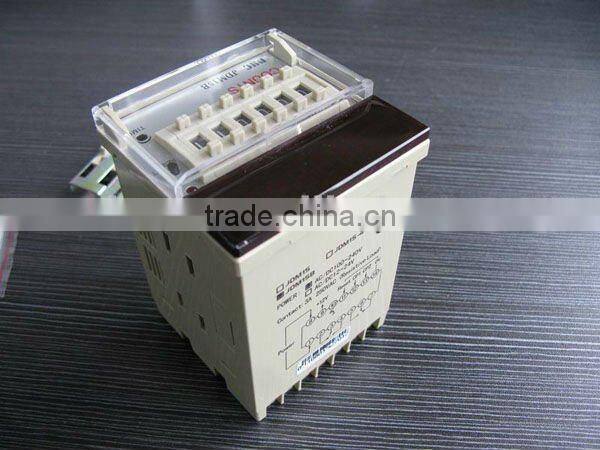

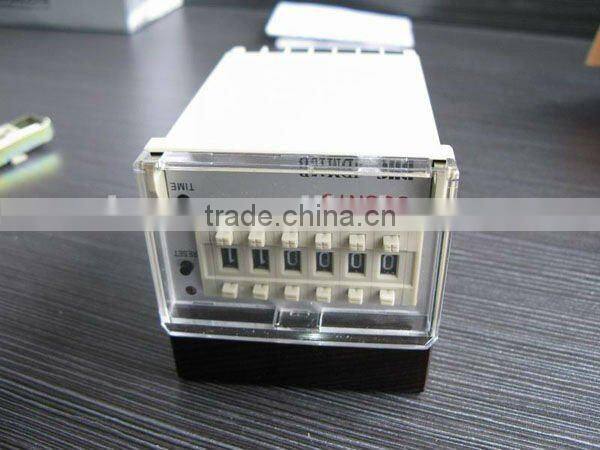

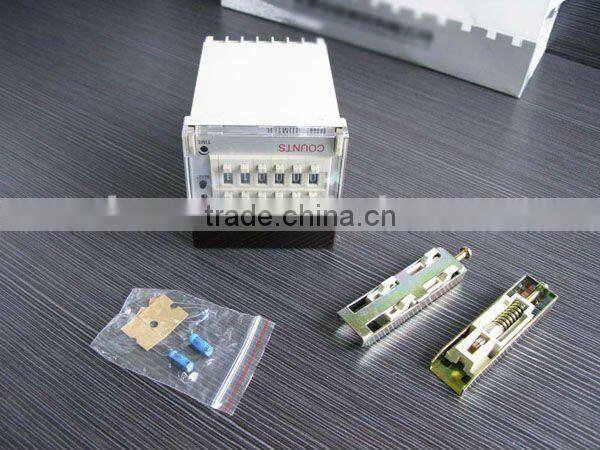

Detail

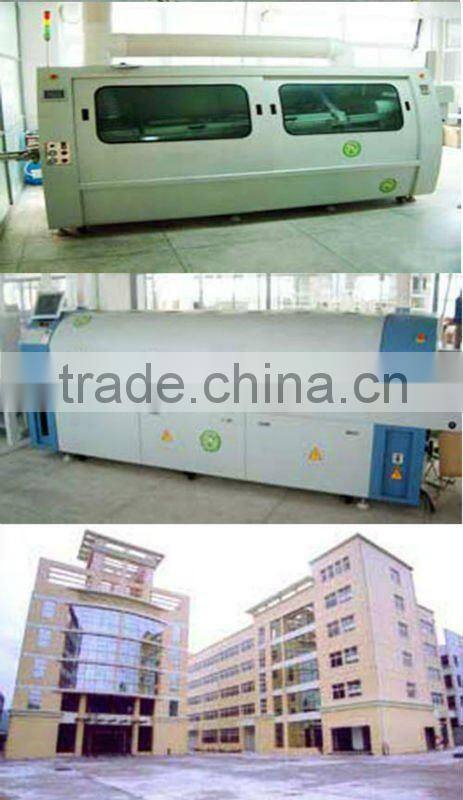

About Us
