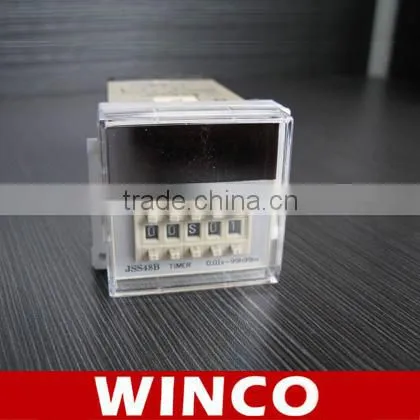

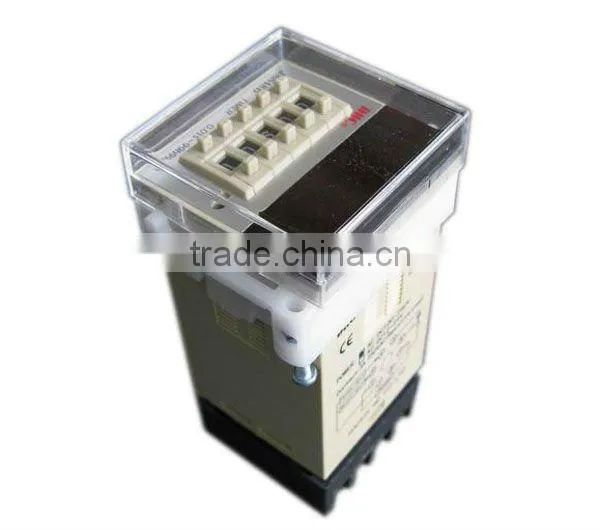

JSS48B Preset digital time relay
US$ 15 - 25
/ Piece
10 Pieces(Min. Order)
- Ningbo / Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DHC | |
| Model Number | JSS48B | Theory | Digital | |
| Usage | Timer Switch | Type | Mini |
Product Description
Specifications
1.DIN-size 48*48mm2.Power supply voltag:AC OR DC100V~240V 12-24V
3.Time ranges(0.01s~99h99min)
JSS48B digital display timer relay
Specification
·DIN-sized48×48mm
·Time ranges(0.01s~99h99min)
Characteristics
| Select switch | H | M | S |
| Time ranges | 1m-99h99m | 1s-99m99s | 0.01s-99.99s |
·Supply voltage: AC220V (50/60Hz)
·Operating voltage range: Ue85%-110%
·Setting error: 0.01%+0.05s
·Ambient temperature Operating: -10 °C to 55°C
·Power consumption:≤3VA
·Display: Up/Down
·Control output: AC 250V 5A (Resistive)
·Contact: 1c
·Panel cutout: 45×45 mm
·Weight: 0.3kg

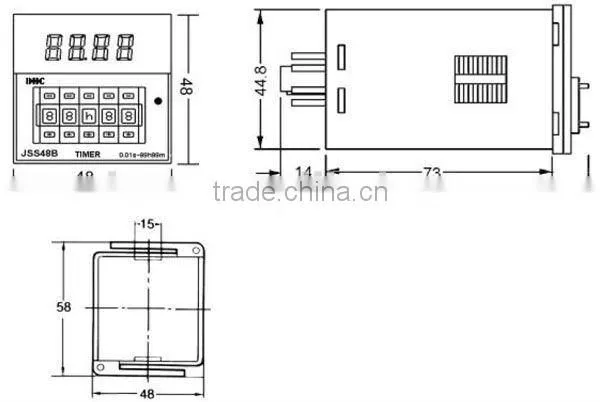

Dimension

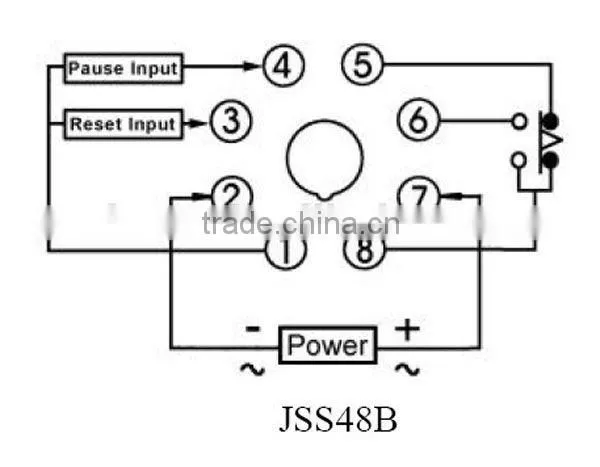

Connections

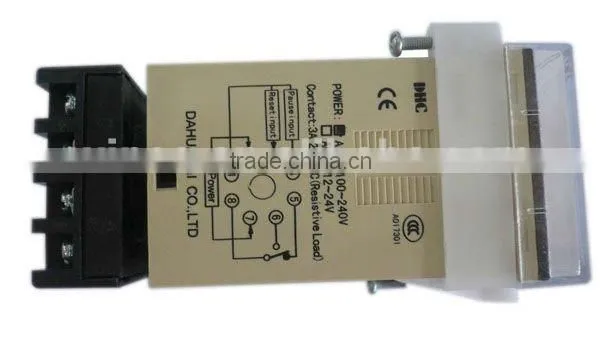

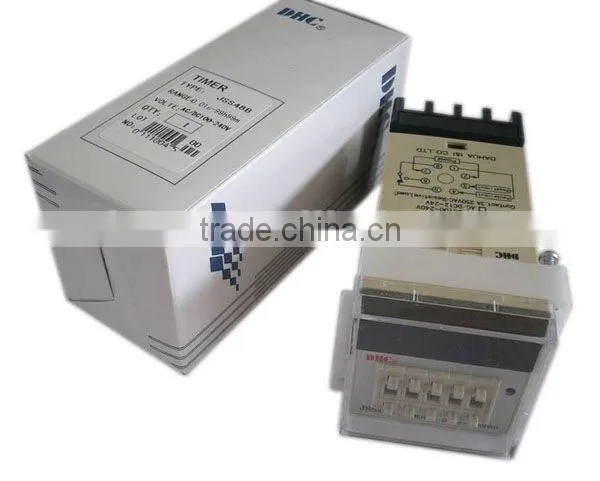

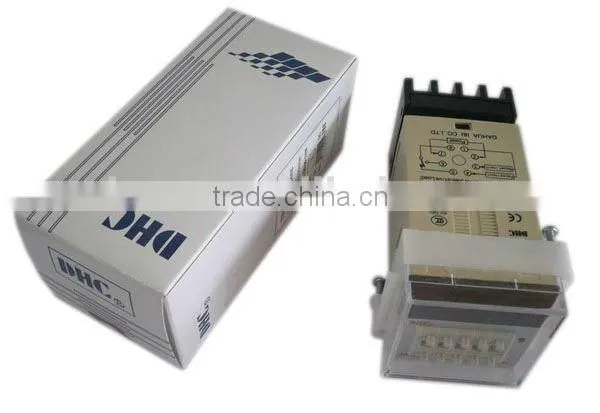

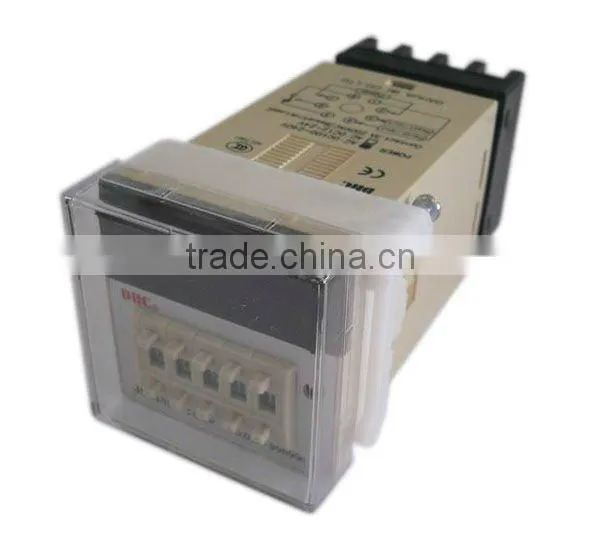

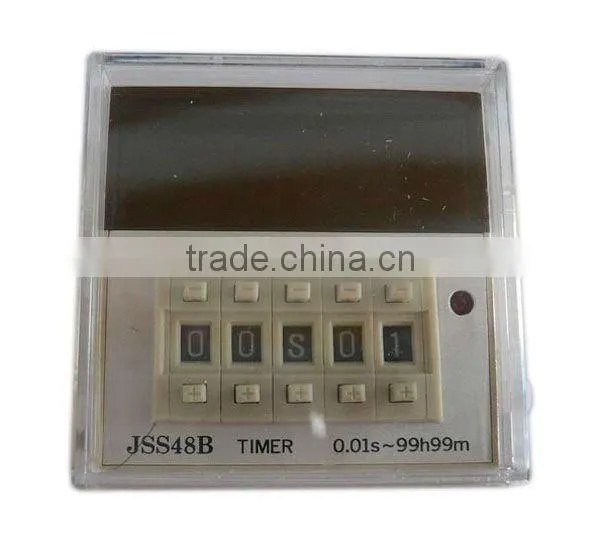

Detail
