Specifications

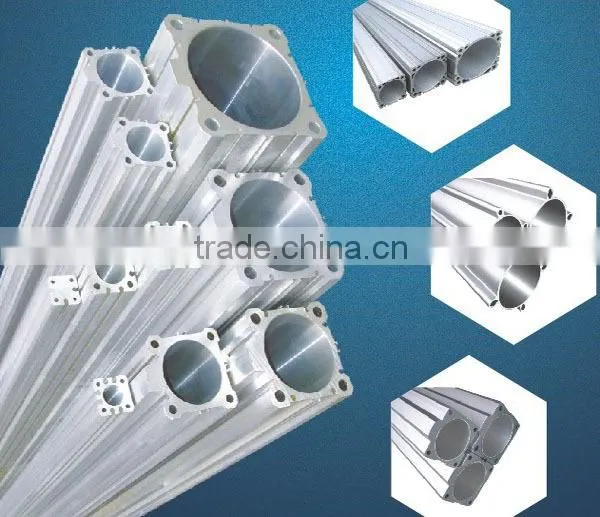

Honed Cylinder Pipe
1.Size: 16 to 125mm
2.Length:2M
3.Festo DNC
4.Material:Aluminum 6063

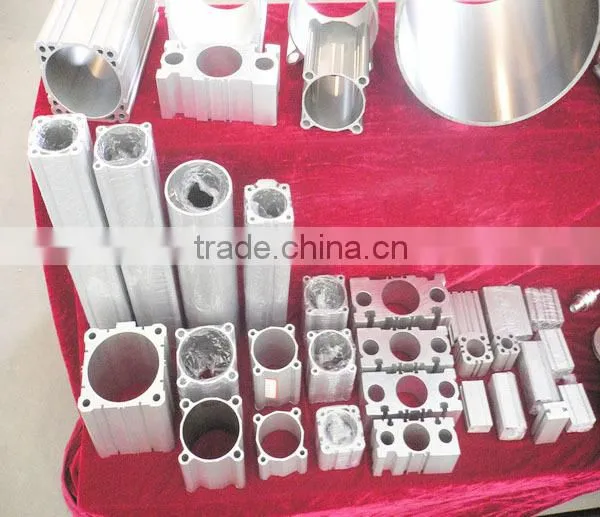

Factory Work Aluminum Cylinder Tube Customer-Made Available Tube
1.Introduce
We’re professional manufacturer of pneumatic components, such as Solenoid Valve, Cylinder, FRL unit, fittings and other hydraulic valve.
Our company also can provide other pneumatic cylinders as below,
1. ISO Standard cylinder: DNC(ISO 6431&VDMA24562),DNG(ISO 15552),SI(ISO 6431),MA(ISO 6432)
2.Standard cylinder:SC/SU,MB,CA1
3.Mini cylinder:MA,MAL,CJ2,CM2,CJP Needle cylinder
4.Double-shaft cylinder:TN,CXS
5.Free installation cylinder:CU
6.Slide bearing cylinder:STM
7.Three-shaft cylinder:MGP
8.Stopper cylinder:RSQ
9.ADVU, SDA,CQ2B compact cylinder
10.Rotary cylinder:MSQ
11.Rodless cylinder:CY1
12.Air gripper:MHC Series Pneumatic Parrallel Gripper, MHC point type Gripper
Parallel Style Wide Opening Air Gripper

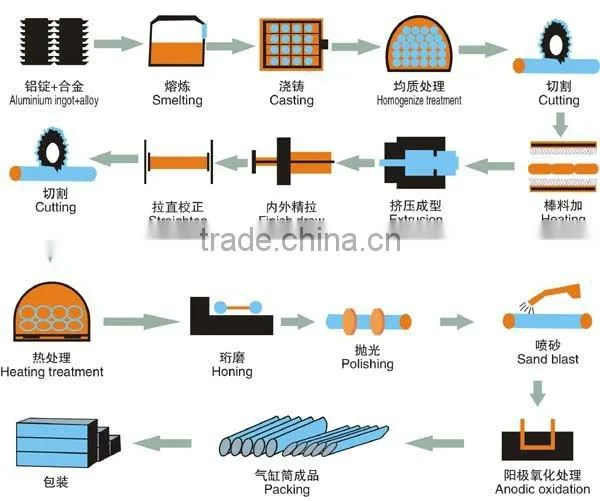

2.Processing
The manufacturing process include : die-casting, aluminum profile precision draw, machining, castings shot blasting, air tightness assurance through the impregnation by vacuum pressure process and passivation treatment, aluminum profile surface oxidation treatment, assembling and testing, for better quality control.
The cylinder covers, piston and piston rods are CNC machined, use high quality seals, to ensure the cylinders work stably and safely.

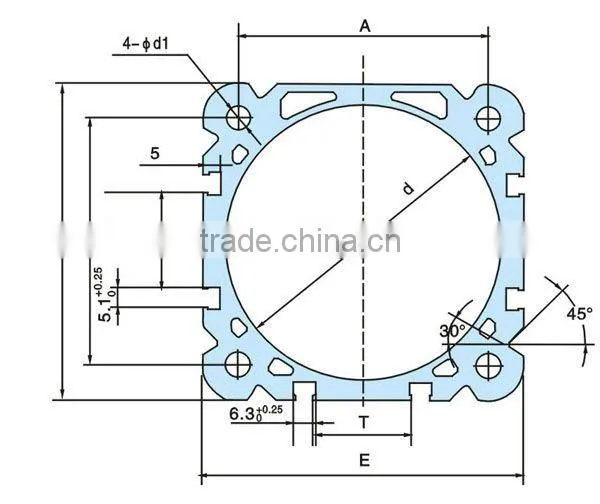

3.Dimension
| No. | d | E | A | T | 4-Φd1 |
| 1 | Φ32 | 44x44 | 32.5x32.5 | 8.2 | Φ5.1 |
| 2 | Φ40 | 51x51 | 38x38 | 11 | Φ5.1 |
| 3 | Φ50 | 64x64 | 46.5x46.5 | 17 | Φ6.7 |
| 4 | Φ63 | 75x75 | 56.5x56.5 | 26 | Φ6.7 |
| 5 | Φ80 | 93x93 | 72x72 | 28 | Φ8.7 |
| 6 | Φ100 | 111x111 | 89x89 | 35 | Φ8.7 |
| 7 | Φ125 | 134x134 | 110x110 | 55 | Φ10.3 |
4.Specification
The anodized surface makes it the real aluminum alloy tubes for Pneumatic cylinder.
Useful : Pneumatic cylinder Precise machine tube
Chemical Composition |
Mg |
Si |
Fe |
Cu |
Mn |
Cr |
Zn |
Ti |
0.81 |
0.41 |
0.23 |
<0.08 |
<0.08 |
<0.04 |
<0.02 |
<0.05 |
Specification |
Tension Intensity (N/mm2) |
Yield Strength (N/mm2) |
Ductility (%) |
Surface Hardness |
Internal Diameter Accuracy |
Internal Roughness |
Straightness |
Thickness Error |
Sb 157 |
S 0.2 108 |
S8 |
HV 400 |
H9-H11 |
Ra 0.2-0.4 |
1/1000 |
± 1% |
5.Production

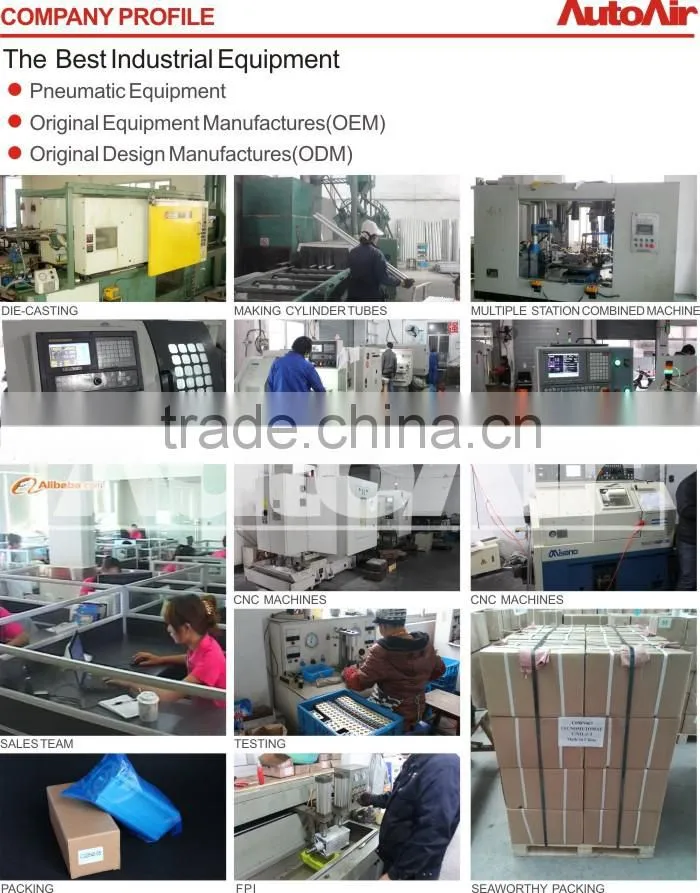

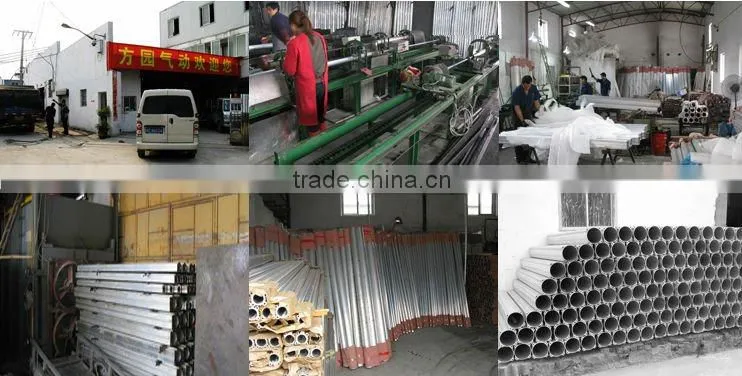

6.Workshop

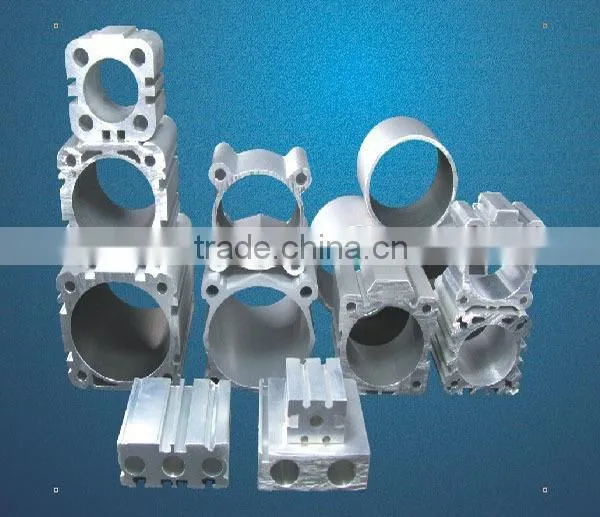

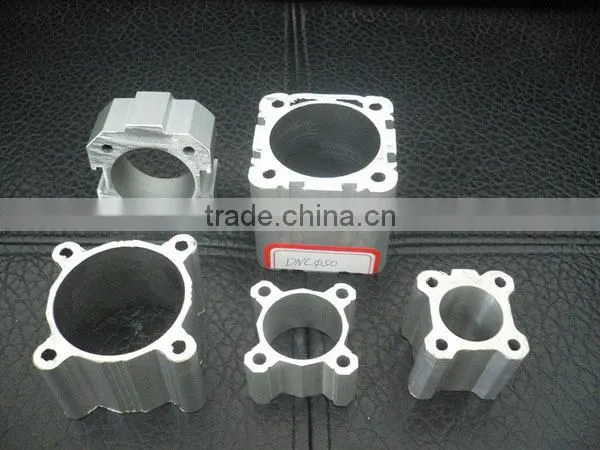

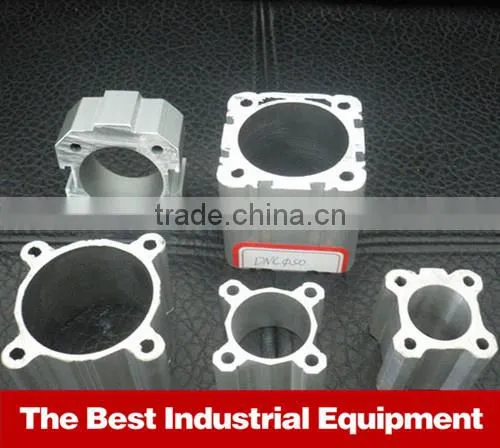

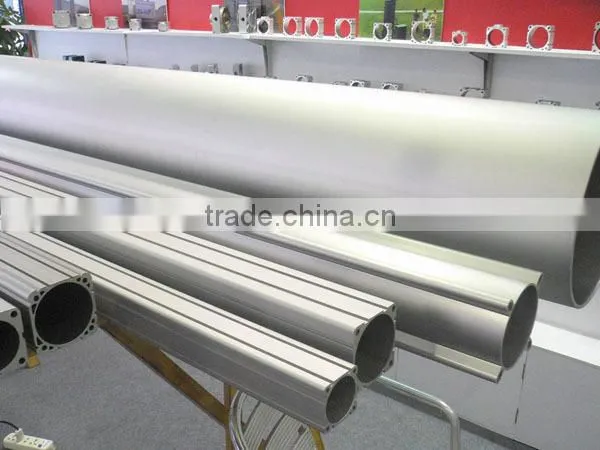

7.Photos
8.Why choose us
1: Various style for completely series pneumatic products for you to choose
2: High quality with competitive price
3: Sample order & small quantity order is ok
4: Provide free products information.
5. Reliable quality assured and active after-sell service
9.Payment and Shipment
Payment: T/T, Western Union, 30% deposit and 70% balance before shipping, LC, ;
Shipment: Usually we send the goods by DHL, FedEx, UPS, TNT, or EMS or as you require;
After we shipped your goods, we will send you the tracking number by E-mail.
If you do not receive it within 7 business days after shipping, please contact us.
Note:2: We do our best to ship your order in 2 week after receive your payment,and please allow 4-7 working days for the arrival of your shipment. Thank you !
