Features

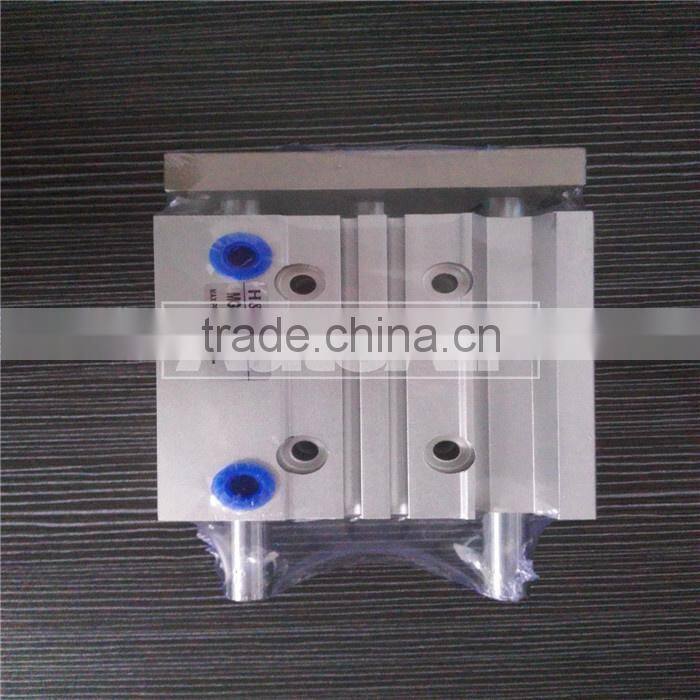

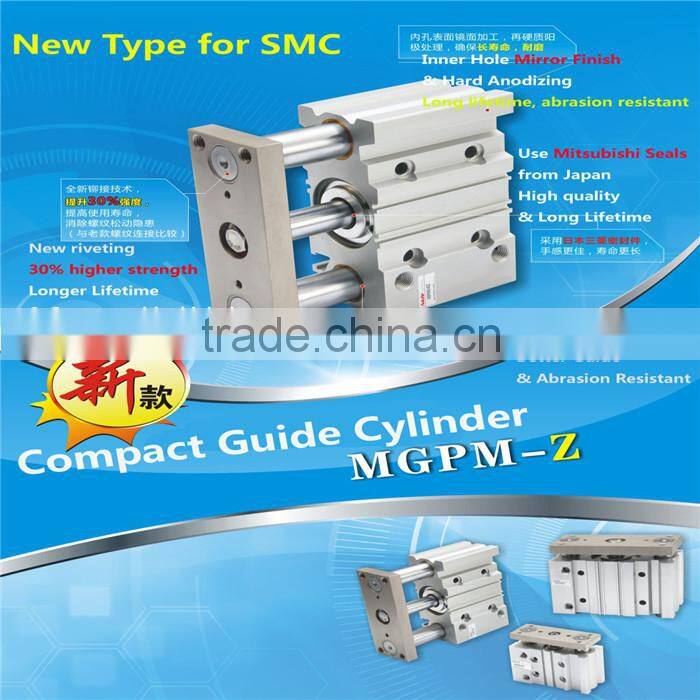

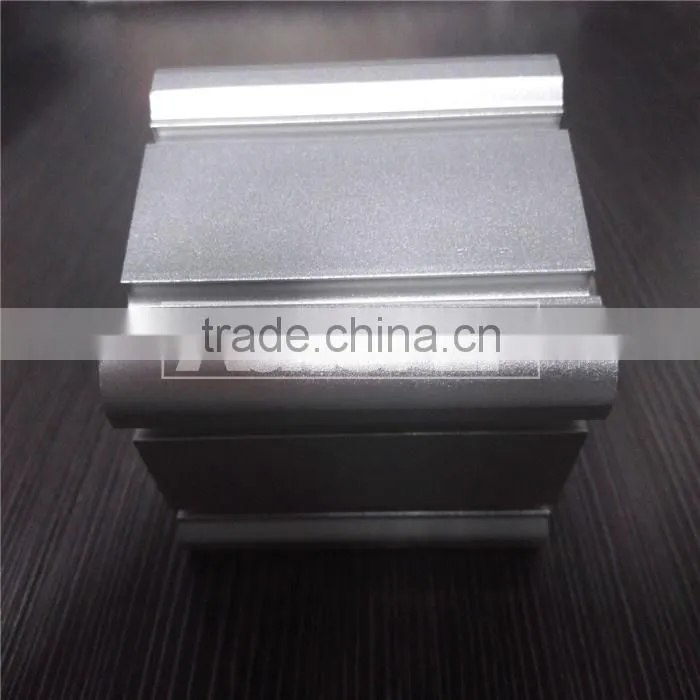

MGPM-Z Series SMC style Pneumatic Cylinder gripper
ISO OEM ODM
Equivalent to SMC MGP Series Pneumatic Cylinder, with the same appearance.
With guide rod..
Bore size(mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100.
Double acting, Single rod
Built-in magnet is standard.
Specifications
Bore Size(mm) |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
160 |
200 |
|
Acting Type |
Double acting |
|||||||||
Working Medium |
Clean Air(40um Filteration) |
|||||||||
Mounting Type |
SI Series |
Basic Type FA FB CA CB LB TC TC-M1 TC-M2 |
||||||||
SID Series |
Basic Type FA LB TC TC-M1 TC-M2 |
|||||||||
SIJ Series |
Basic Type FA LB TC TC-M1 TC-M2 |
|||||||||
Working Pressure Range |
0.1~1.0Mpa |
|||||||||
Guaranteed Pressure |
1.5Mpa |
|||||||||
Working Temperature |
5~70°C |
|||||||||
Speed Range |
SI Series:50~800mm/s Other-Series:30~800mm/s |
|||||||||
Cushion Type |
Adjustable Cushion |
|||||||||
Cushion Stroke |
27mm |
30mm |
36mm |
40mm |
50mm |
|||||
Port Size |
G1/8 |
G1/4 |
G3/8 |
G1/2 |
G3/4 |
|||||

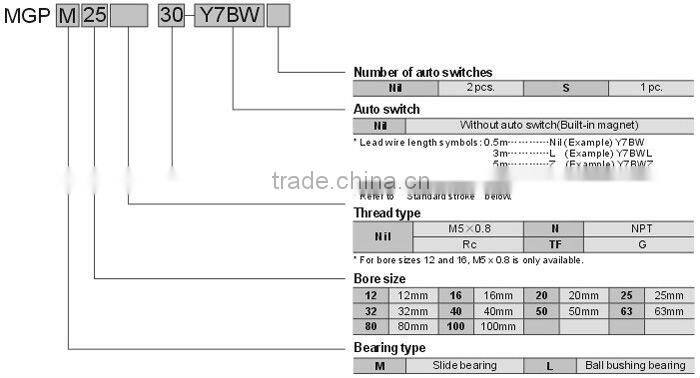

Ordering Code

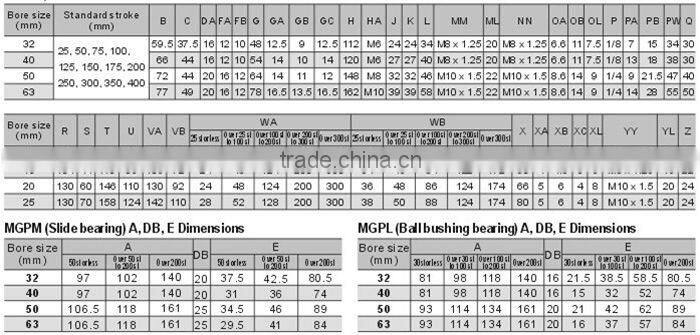

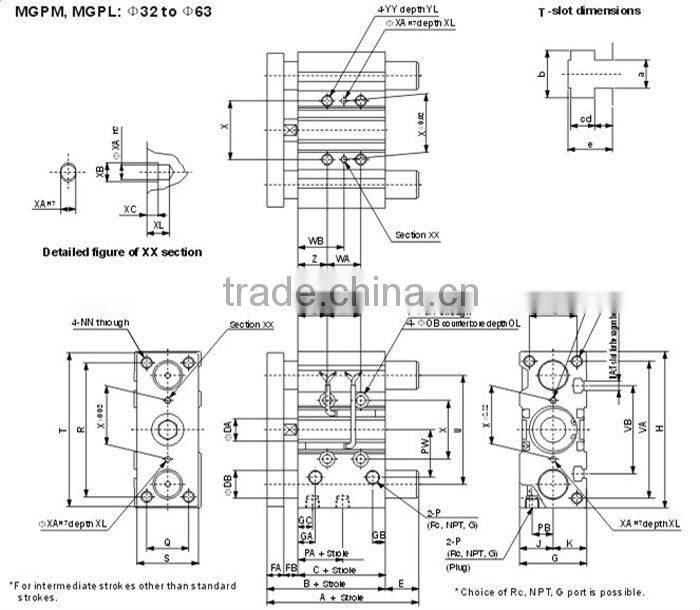

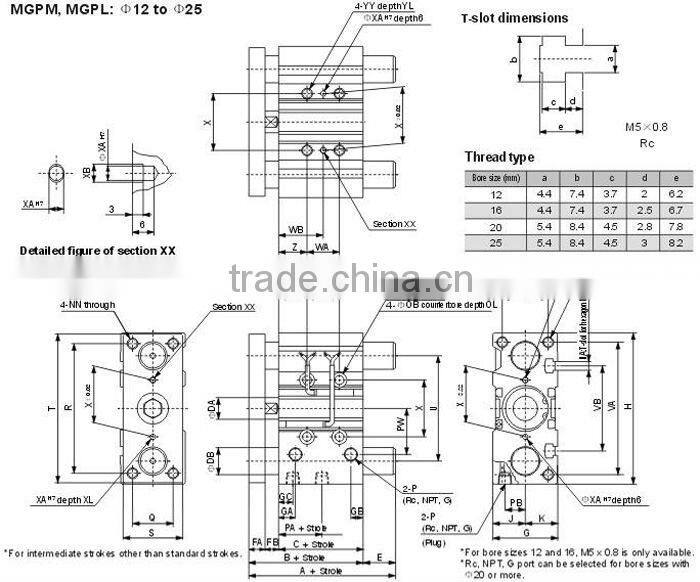

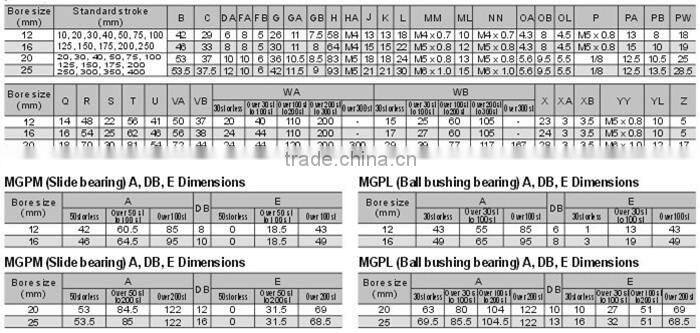

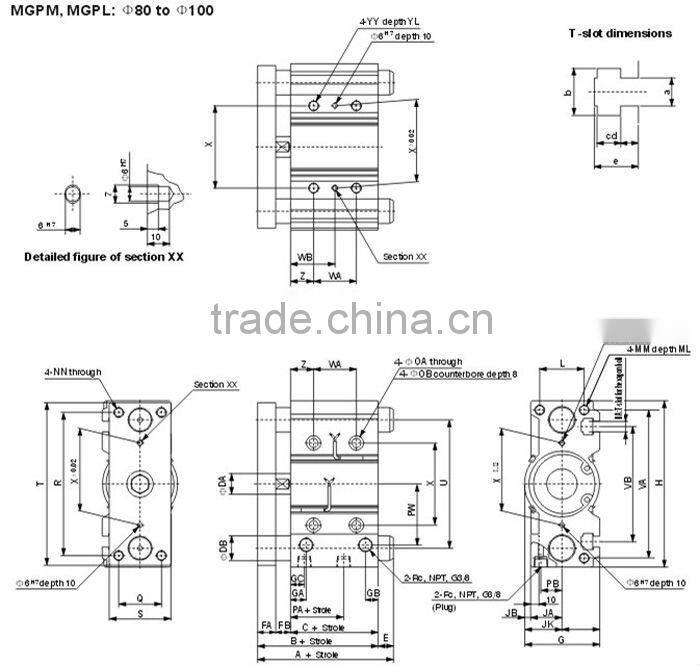

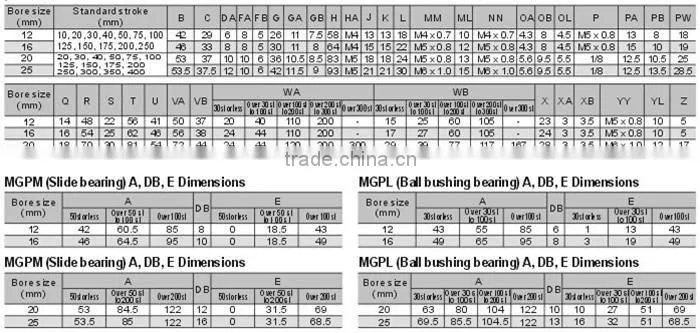

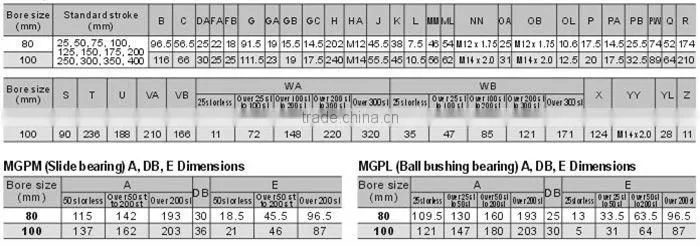

Dimensions

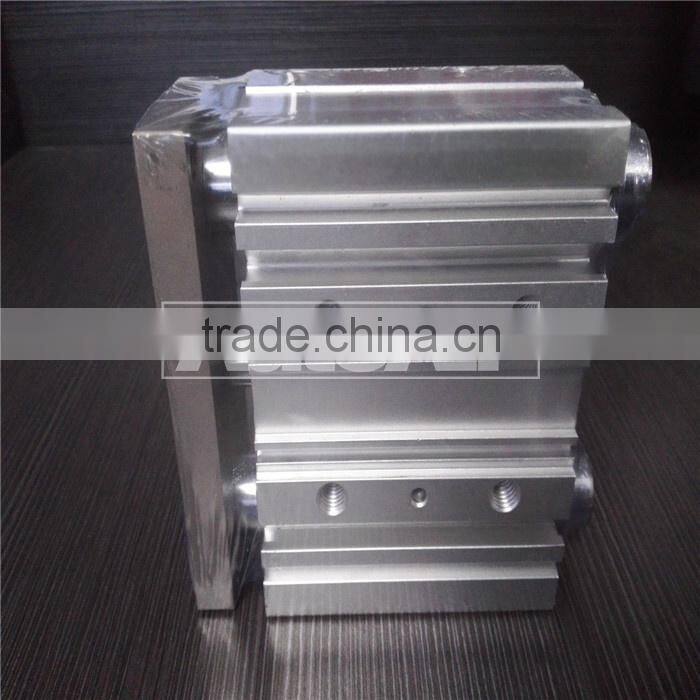

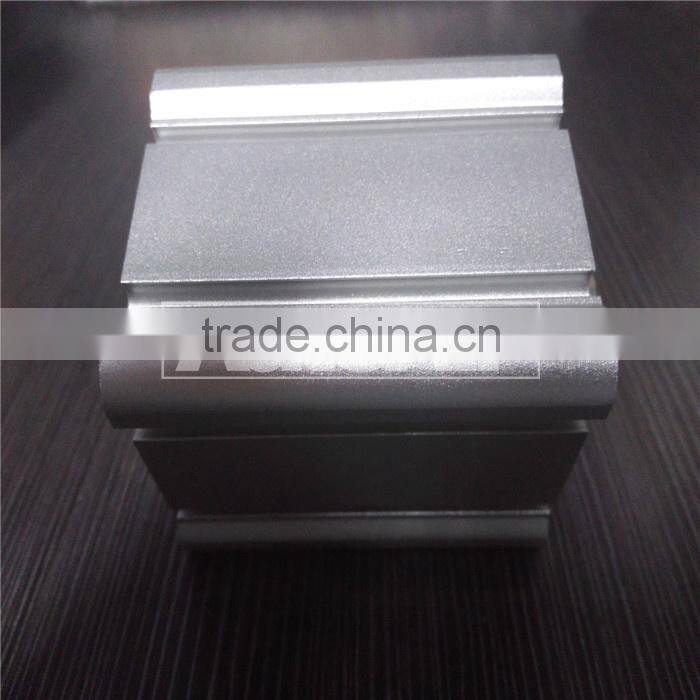

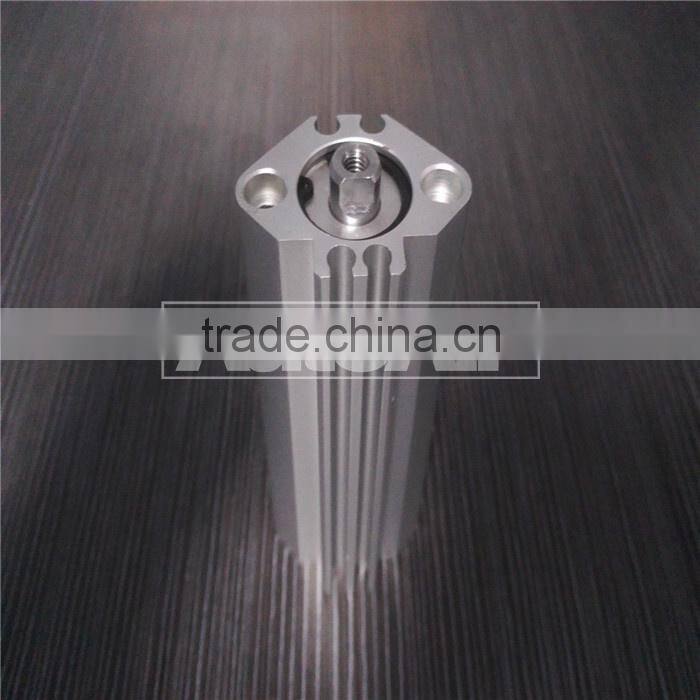

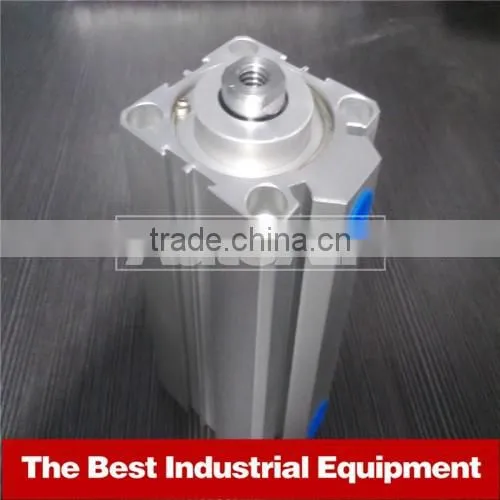

Detail Show

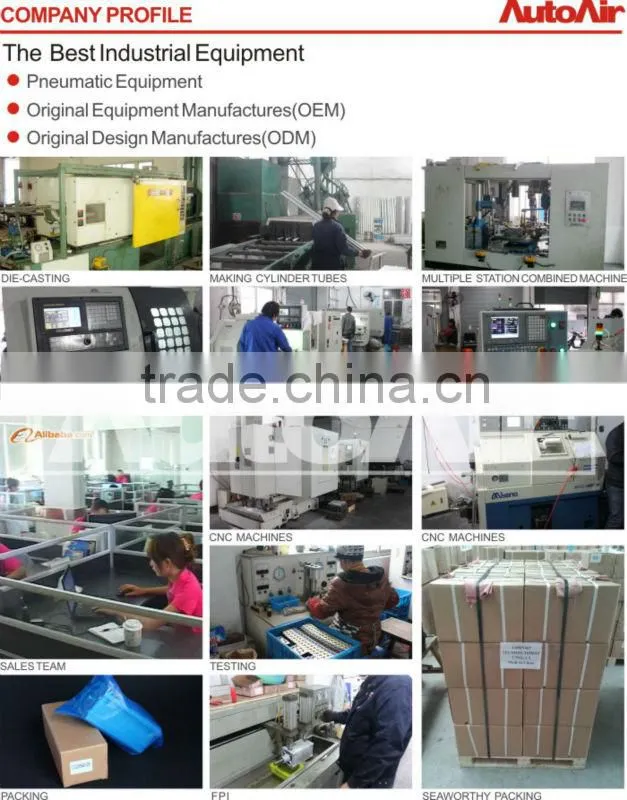

Processing
The manufacturing process include : die-casting, aluminum profile precision draw, machining, castings shot blasting, air tightness assurance through the impregnation by vacuum pressure process and passivation treatment, aluminum profile surface oxidation treatment, assembling and testing, for better quality control.
The cylinder covers, piston and piston rods are CNC machined, use high quality seals, to ensure the cylinders work stably and safely.
Why choose us

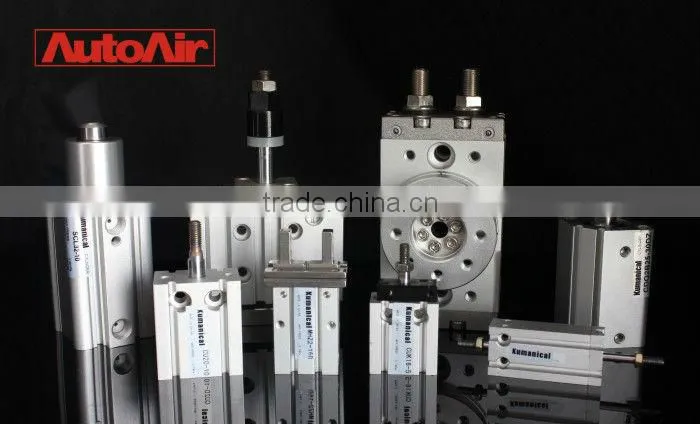

1: Various style for completely series pneumatic products for you to choose
2: High quality with competitive price
3: Sample order & small quantity order is ok
4: Provide free products information.
5. Reliable quality assured and active after-sell service
Payment and Shipment
Payment: T/T, Western Union, 30% deposit and 70% balance before shipping, LC, ;
Shipment: Usually we send the goods by DHL, FedEx, UPS, TNT, or EMS or as you require;
After we shipped your goods, we will send you the tracking number by E-mail.
If you do not receive it within 7 business days after shipping, please contact us.
Note:2: We do our best to ship your order in 2 week after receive your payment,and please allow 4-7 working days for the arrival of your shipment. Thank you !
