Features

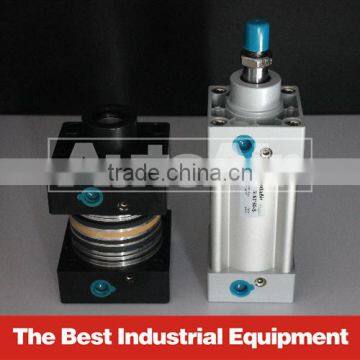

All Type Hydraulic Cylinder Kit Alumnium Cylinder Kit
Equivalent to FESTO ADVU Series compact cylinder, with the same appearance.
Compact design.
Bore size(mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100.
Double acting, Single/Double rod
Single acting, Single rod, Spring return/extend.
Rubber bumper is standard.
Built-in magnet is optional.
Cylinder kits, barrel, piston is available
Specifications
Bore size (mm) |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
|
Fluid |
Air |
||||||||||
Action |
ADVU |
Double acting, Single/Double rod |
|||||||||
AEVU/AEVUZ |
Single acting, Single rod, Spring return/extend |
||||||||||
Minimum operating pressure |
Double Acting |
0.12 MPa |
0.1 MPa |
0.08 MPa |
0.06 MPa |
||||||
Single Acting |
0.15 MPa |
0.13 MPa |
0.1 MPa |
0.08 MPa |
0.06 MPa |
||||||
Maximum operating pressure |
1.0 MPa |
||||||||||
Proof pressure |
1.5 MPa |
||||||||||
Ambient and fluid temperature |
-20 to 80°C (No freezing) |
||||||||||
Cushion |
Rubber bumper |
||||||||||
Lubrication |
Non-lube |
||||||||||
Piston rod dia. |
6 mm |
8 mm |
10 mm |
12 mm |
16 mm |
20 mm |
25 mm |
||||
Rod end thread |
Female thread |
M3x0.5 |
M4x0.7 |
M5x0.8 |
M6x1.0 |
M8x1.25 |
M10x1.25 |
M12x1.25 |
|||
Ordering Code
Overall Dimensions
Dimension Sheet
Detail Show
Processing
The manufacturing process include : die-casting, aluminum profile precision draw, machining, castings shot blasting, air tightness assurance through the impregnation by vacuum pressure process and passivation treatment, aluminum profile surface oxidation treatment, assembling and testing, for better quality control.
The cylinder covers, piston and piston rods are CNC machined, use high quality seals, to ensure the cylinders work stably and safely.
Why choose us
1: Various style for completely series pneumatic products for you to choose
2: High quality with competitive price
3: Sample order & small quantity order is ok
4: Provide free products information.
5. Reliable quality assured and active after-sell service
Payment and Shipment
Payment: T/T, Western Union, 30% deposit and 70% balance before shipping, LC, ;
Shipment: Usually we send the goods by DHL, FedEx, UPS, TNT, or EMS or as you require;
After we shipped your goods, we will send you the tracking number by E-mail.
If you do not receive it within 7 business days after shipping, please contact us.
Note:2: We do our best to ship your order in 2 week after receive your payment,and please allow 4-7 working days for the arrival of your shipment. Thank you !
