CJ12 CJ24 AC Contactor

CJ12 CJ24 AC Contactor thumbnail-1
CJ12 CJ24 AC Contactor photo-1
US$ 35 - 100 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BIGM
Model Number:
CJ12
Contact Supplier Request Quote Chat Now
Wenzhou Winco Imp&Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BIGM
Model Number CJ12
Electricity Type AC
Number of Pole Other, 2 3 4 5 POLE
Phase Other
Main Circuit Rating Voltage 380v
Main Circuit Rating Current Other, 100A 150A 250A 400A 600A

Specifications

It is suitable for the circuit of
1.AC 50Hz or 60Hz
2.voltage up to 380V
3.current to 600A
4.Pole:2,3,4,5

1.specification

Application:CJ12 series AC contactor is mainly used for electric equipment of metallurgy,electric power and hoister.It is suitable for the circuit of AC 50Hz or 60Hz,the voltage up to 380V,current to 600A for remove making and breaking circuit,and freguently starting,stopping and inverse AC motor.
Rated insulating and operation voltage:AC 380
Conventional thermal current:100,150,250,400,600
Rated operation current le A:AC-2:100,150,250,400,600
AC-4:100,150,250,400,480
Pole:2,3,4,5
Auxiliary contact-Control capacity:AV380V 1000VA,DC220V 90W,Part electronic upper and lower
-Log:Can be assembled:5NO 1NC
4NO 2NC
3NO 2NC
2NO 4NC
1NO 5NC

CJ12 CJ24 AC Contactor



LC1-D AC contactors, LC1-F AC contactors, LC1-DN AC contactors, LP1-D DC Contactors, CJ16(19) AC contactors, 3TB AC contactor, 3TH AC contactors, DSF(3TF) AC Contactors, ACK Air Conditioning AC Contactors, LA1-D, LA2-D Contact Blocks

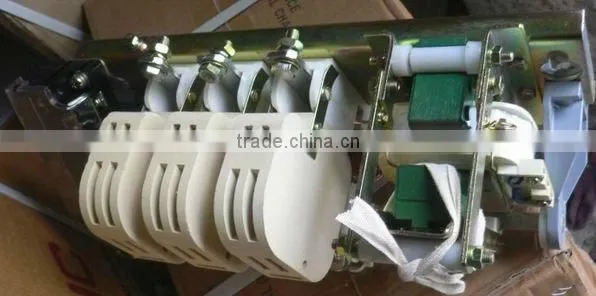

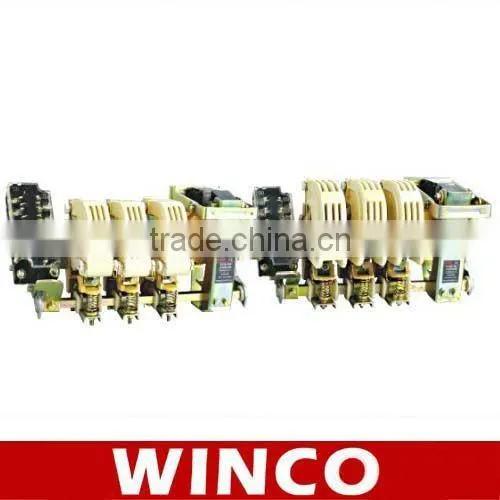

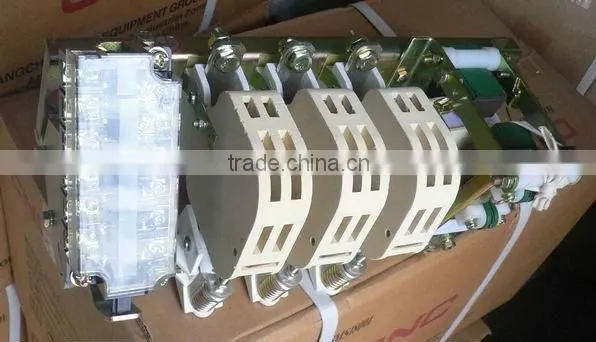

2.Product photo



CJ12 CJ24 AC ContactorCJ12 CJ24 AC Contactor
