Air Condition Contactor for Air Conditioner and Heating Equipment

Air Condition Contactor for Air Conditioner and Heating Equipment thumbnail-1
Air Condition Contactor for Air Conditioner and Heating Equipment photo-1
US$ 5 - 15 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BIGM
Model Number:
CKYC2 AMC2
Contact Supplier Request Quote Chat Now
Wenzhou Winco Imp&Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BIGM
Model Number CKYC2 AMC2
Electricity Type AC
Number of Pole Other, 1P 2P
Phase 1
Main Circuit Rating Voltage Other, up to 277V
Main Circuit Rating Current Other, up to 40A

Specifications

1.rated current:20A, 25A, 32A, 40A
2.rated voltage:up to 277V
3.Pole:1P 2P
pper or silver or iron contact

1.Specification

Air Condition Contactor (for Air Conditioner and Heating Equipment)

Features

1. Designed for air conditioning and heating equipment.
2. Low VA coil for cooler operation and increased life.
3. Quiet operation
4. Universal style mounting bracket fits existing mounting holes.
5. Double break contacts ensure positive make and break.
6. Screw terminals or pressure connectors and double 1/4 quick connects provided
on all models for easy installation

Specifications

1. Temperature range: -40oCF to 150oCF
2. Mechanical life (no load): Conforms to UL and ARI specifications
3. Electrical life: Conforms to UL and ARI specifications
4. Weight (approximate): 9.25 oz
5. Coils Frequency: 50/60Hz
6. Coil insulation: Class B(130oC )
7. Operate: 85% of nominal coil voltage, 110% maximum safe operate
8. Duty cycle: Continuous

Packing: Standard export carton

Temperature range -40°F to 150°F
Mechanical life (no load) Conforms to UL and ARI specifications
Electricl life Conforms to UL and ARI specifications 94-388 thru 94-390 achieve 200,000 cycles, make LRA at . 5 pf, break 125% of FLA at . 75 pf at rated voltage ,10 , 000 cycles make and break LRA at . 5 pf rated voltage 94-394 thru 94-396 achieve 100,000 cycles, make LAR at. 5 pf at rated voltage 6,000 cycles make and break LRA at . 5 pf rated voltage
Weight (approximate) 9.25 oz
Coils Frequency 50/60Hz
Coil insulation Class B(130oC )
Termination Screw and double 1/4 Q.C.
Operate 85%of nominal coil coltage; 110% maximum safe operate
Duty cycle Continuous
Coil data
Steveco Number
30 Amp 40Amp
Voltage AC
Ress DC OHMS
Current MA
Nominal VA
Max. inrush
AMC2-388 AMC2-394
24
16.5
208
5
20
AMC2-389 AMC2-395
120
420
42
5
20
AMC2-390 AMC2-396
208/240
1825
21
5
20
Contact ratings
Type
Voltage
FLA
LRA
RES
AMC2-388 thru AMC2-390
277
30
150
40
480
0
75
40
600
30
50
40
AMC2-394 thru AMC2-396
277
40
200
50
480
40
100
50
600
40
80
50

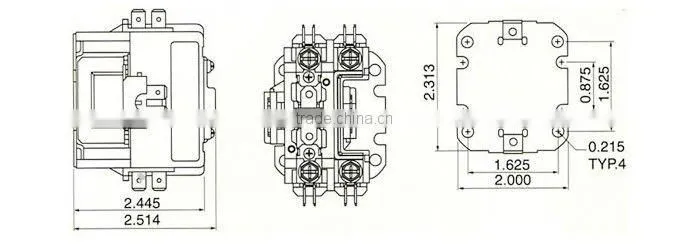

Air Condition Contactor for Air Conditioner and Heating Equipment

2.Product photo

Air Condition Contactor for Air Conditioner and Heating Equipment
