Bigm Brand CJX2-F LC1-F AC Contactor

Bigm Brand CJX2-F LC1-F AC Contactor thumbnail-1
Bigm Brand CJX2-F LC1-F AC Contactor photo-1
US$ 20 - 100 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BIGM
Model Number:
LC1-F CJX2-F
Contact Supplier Request Quote Chat Now
Wenzhou Winco Imp&Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BIGM
Model Number LC1-F CJX2-F
Electricity Type AC
Number of Pole Other, 3P 4P
Phase 3
Main Circuit Rating Voltage Other, 380V 660V 1000V
Main Circuit Rating Current Other, 115A to 780A

Specifications

1.OEM, Laser printing
2.Telemecanique standard
3.Rated current up to 780A

1.Specification

CJX2(LC1-F) AC Contactor is applicable in the circuit rated voltage up to 1000V AC. 50Hz or 60Hz, rated current up to 780A, for long distance breaking circuit and frequently starting or controlling the motor. It also can be used for the control of distributing circuits of rated current from 200A to 1600A.



Model CJX2-F115 CJX2-F150 CJX2-F185 CJX2-F265 CJX2-F400 CJX2-F500 CJX2-F630 CJX2-F780
Number of poles 3 or 4 3 or 4 3 or 4 3 or 4 2,3 or 4 2,3 or 4 2,3 or 4 3 or 4
Rated operational current in AC-3(1)
up to		 A 115 150 185 265 400 500 630 780
Maximum operational current in AC-3(2) A 200 250 275 350 500 700 1000 1600
Rated operational voltage   V 1000 1000 1000 1000 1000 1000 1000 1000

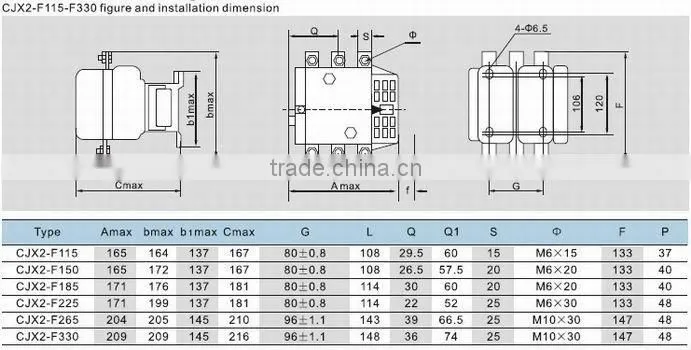

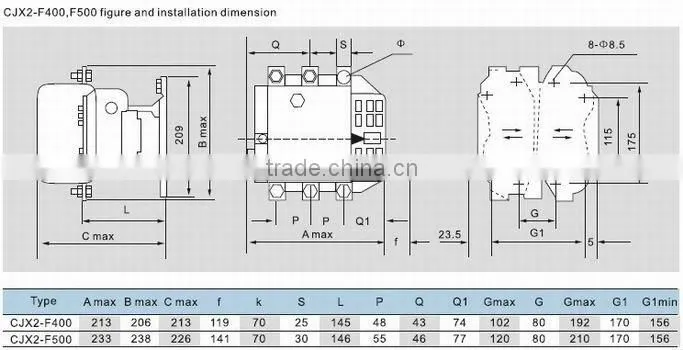

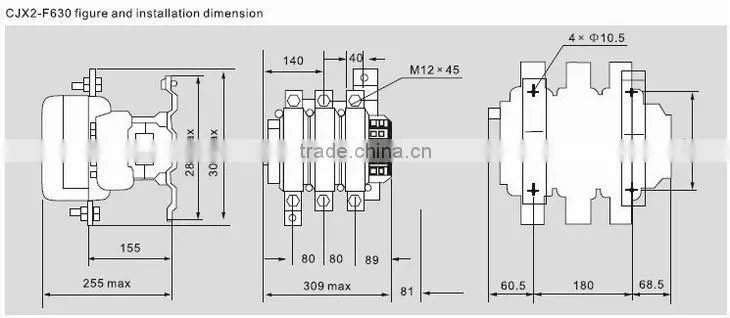

Bigm brand CJX2-F LC1-F AC ContactorBigm brand CJX2-F LC1-F AC ContactorBigm brand CJX2-F LC1-F AC Contactor

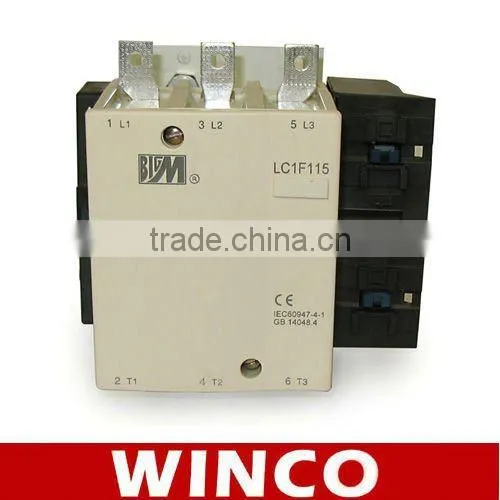

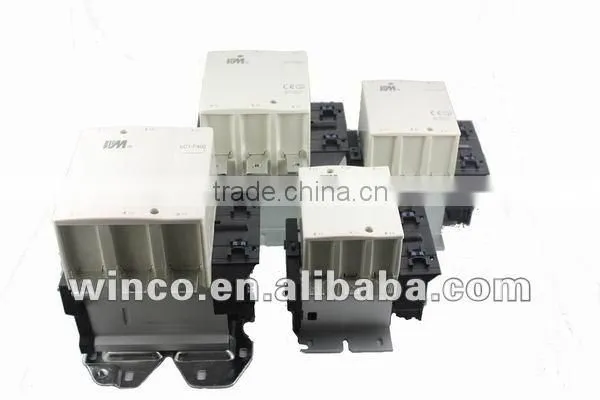

2.Product Photo

Bigm brand CJX2-F LC1-F AC ContactorBigm brand CJX2-F LC1-F AC Contactor

Bigm brand CJX2-F LC1-F AC Contactor

Bigm brand CJX2-F LC1-F AC ContactorBigm brand CJX2-F LC1-F AC Contactor
