Specifications
1.More than 10 years exporting experience2.CE
3.220V 380V 400V 415V 550V 590V
4.Self-healing type
5.with discharge resistor

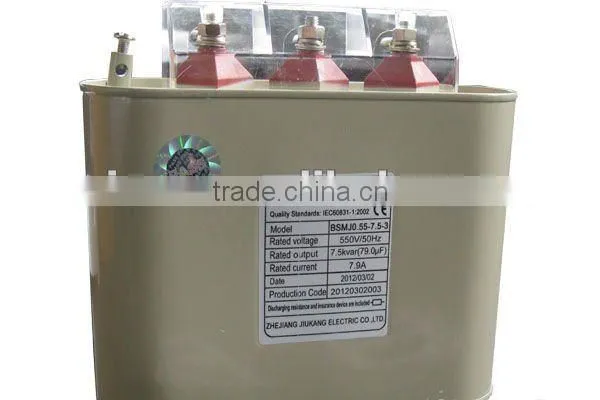

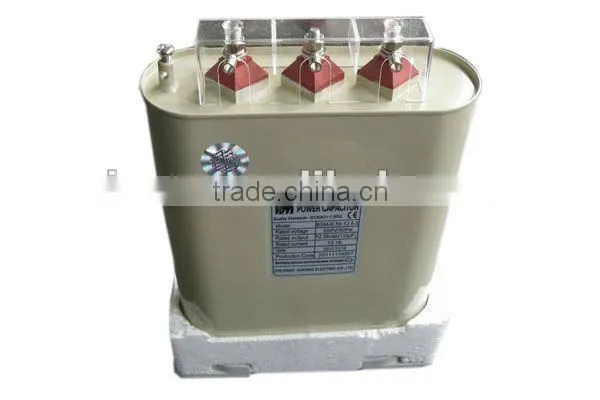

Self-healing type low voltage shunt capacitor is produced by means of imported foreign modern technology and equipment, in strict accordance with national standards and IEC standard using advanced Metallized film as material. This kind of capacitor is applied mainly to low voltage AC power systems with frequency ranging from 15 to 60 Hz to raise power factors, reduce line losses and improve the quality of power source. As a kind of new energy-saving product, the capacitor is a recommendation by the state.
Model Description:
Voltage: 380V, 415V, 450V, 500V, 600V, 690V etc.
Model List with Dimension:
BSMJ0.4-1-3 160*56*110mm
BSMJ0.4-2-3 160*56*110mm
BSMJ0.4-3-3 160*56*110mm
BSMJ0.4-4-3 160*56*110mm
BSMJ0.4-5-3 160*56*110mm
BSMJ0.4-6-3 160*56*110mm
BSMJ0.4-7.5-3 160*56*140mm
BSMJ0.4-8-3 160*56*140mm
BSMJ0.4-10-3 160*56*190mm
BSMJ0.4-12-3 160*56*190mm
BSMJ0.4-14-3 160*56*220mm
BSMJ0.4-15-3 160*56*220mm
BSMJ0.4-16-3 160*56*220mm
BSMJ0.4-18-3 180*70*220mm
BSMJ0.4-20-3 180*70*220mm
BSMJ0.4-25-3 180*70*220mm
BSMJ0.4-30-3 180*70*250mm
BSMJ0.4-40-3 180*70*320mm
BSMJ0.4-50-3 180*70*380mm
BGMJ0.4-2.5-3 76*210mm
BGMJ0.4-5-3 76*210mm
BGMJ0.4-7.5-3 76*210
BGMJ0.4-10-3 76*210mm
BGMJ0.4-12.5-3 76*210
BGMJ0.4-15-3 86*210mm
BGMJ0.4-20-3 110*240mm
