BIGM Self-healing Type Low Voltage Shunt Capacitor BSMJ

Specifications

1.Rated voltage: 250VAC, 400VAC, 525VAC, 690VAC, 750VAC, 1050VAC
2.Rated output:1~100kvar

1.Specification

Self-healing type low voltage shunt capacitor made of the advanced metallized film, is produced strictly in accordance with the National Standard and IEC Standard by the introduced advanced fore ign techniques and equipments. The device is mainly suitable for low voltage power netwo rk to improve power factor, reduce reactive
loss and better the voltage quality.

The company depends on the superiority of science and technology and manages strictly in compliance with ISO9001, so the quality of the products are excellent but their prices are competitive and our services are all-round.

Main Features

1 Compacted and light: Its volume and weig ht are only 1 / 4 and 1 / 5 of the old product because of the using of a new dielectricmetallized poly prop ylene film.
2 Low loss: The real figure is lower than 0.10%, so the los s of the ca pacitor it self is extremely low, the heat it gives out is little and the rise of t emperature is low, so its service life is very long a nd it can save energy at the same time.
3 Excellent self-healing ability: D amage of part of the dielectric caused by over-voltage can be self-healed quickly and return tonormal state. So the reliability is much higher.
4 Safety:In wardly equipped self-discharge resistor and safety equipment. The self-discharge resistor can automatically discharge the electric energy the capacitor carries. If there is anything fault with the capacitor, the safety equipment will cut off power in time,thus prevent further troubles from happening. So it s much safer to use this kind of capacitor.
5 No oil leakage: The capacitor uses advanced semi-soild impregnant whose drip melting point it above 70 . There will be no loss of o il du ring the course of using it. And thus protect the surroundings from being polluted. The capacitor itself dose not have to run the risk of invalidation caused by oil leakage.

Model Meanings

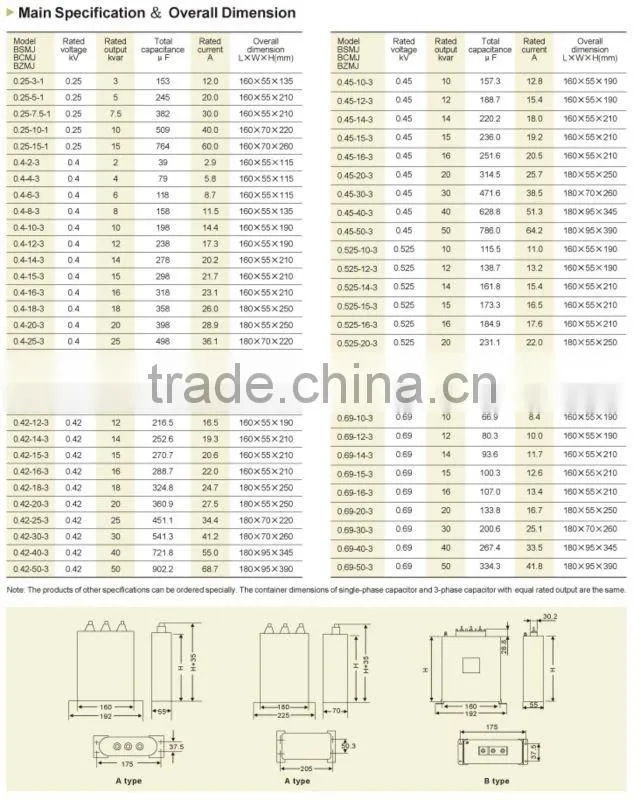

Main Technical characteristics



• Sevice conditions: ambient temperature -25 ~+50 , humidity 85% RH, and altitude lower than 2000m.
• Rated voltage: 250VAC, 400VAC, 525VAC, 690VAC, 750VAC, 1050VAC.
• Rated output:1~100kvar.
• Capacitance tolerance:-5~+10%
• Tangent of the loss angel: With the power frequency rated voltage,tg 0.1% at 20 .
• Withstand voltage: Between te rminals 2.15 times rated voltage for 10 seconds, between terminals and container 3kVAC for 10seconds.
• Max permissible over-voltage:110% rated voltage.
• Max permissible over-current:130% rated current.
• Self sustained discharge ability: Give 2Un DC voltage to capacitor, the residual voltage reduced to 75V or lower within 3 minutes after power off.
• Applicable standard: GB 12747-2004 / IEC60831-1996.

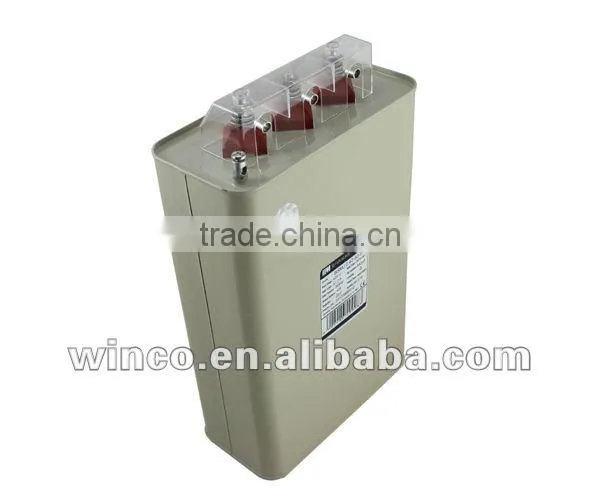

2.Product photo
