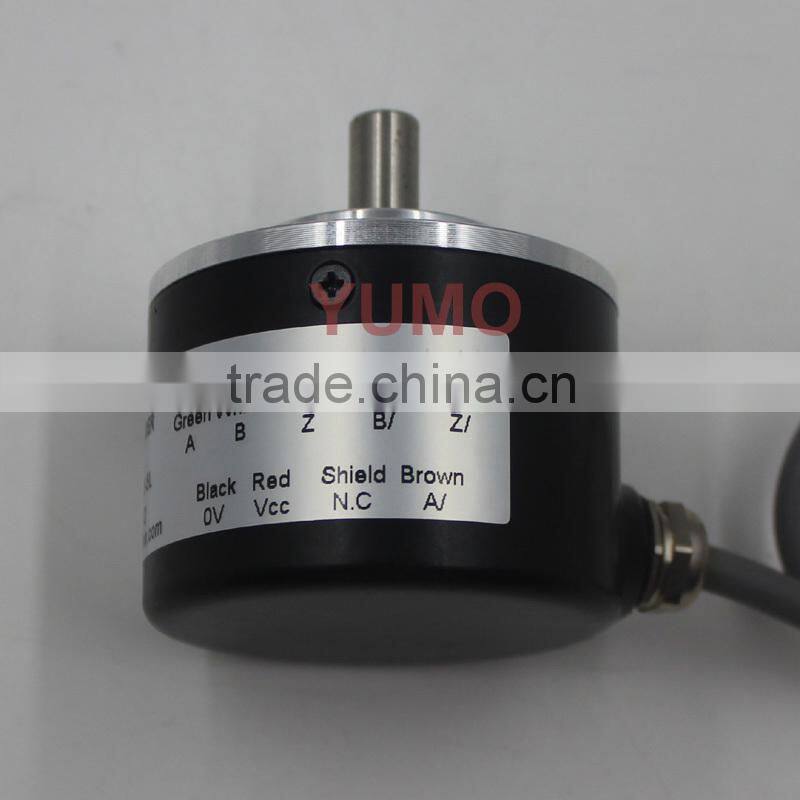

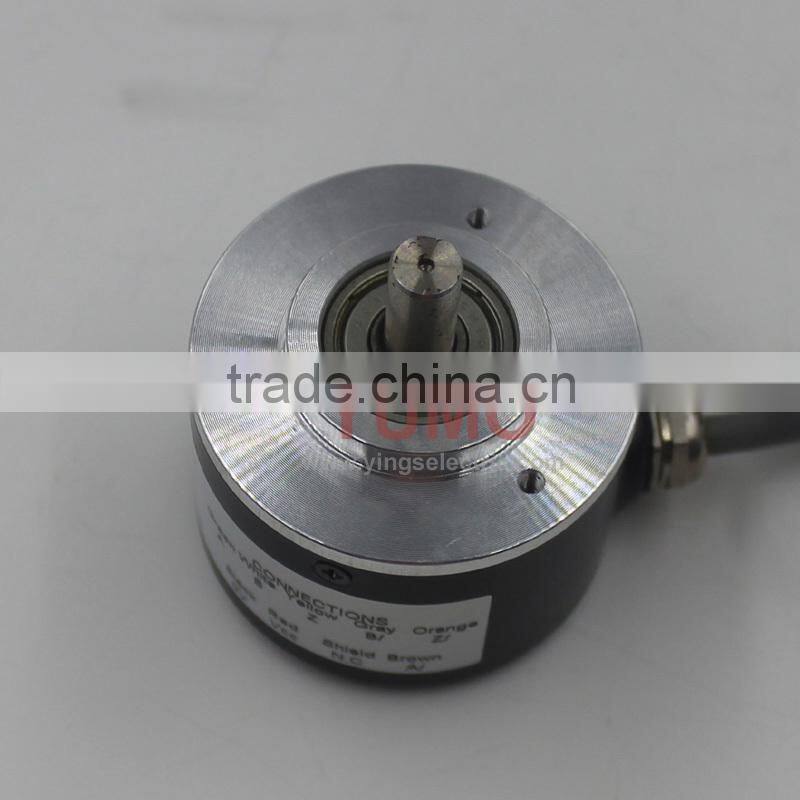

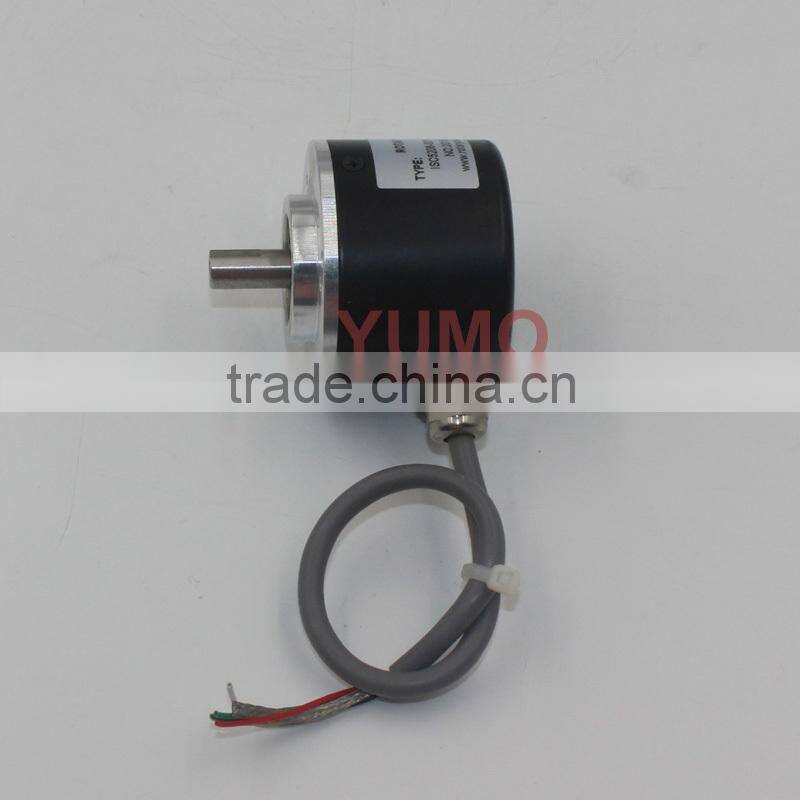

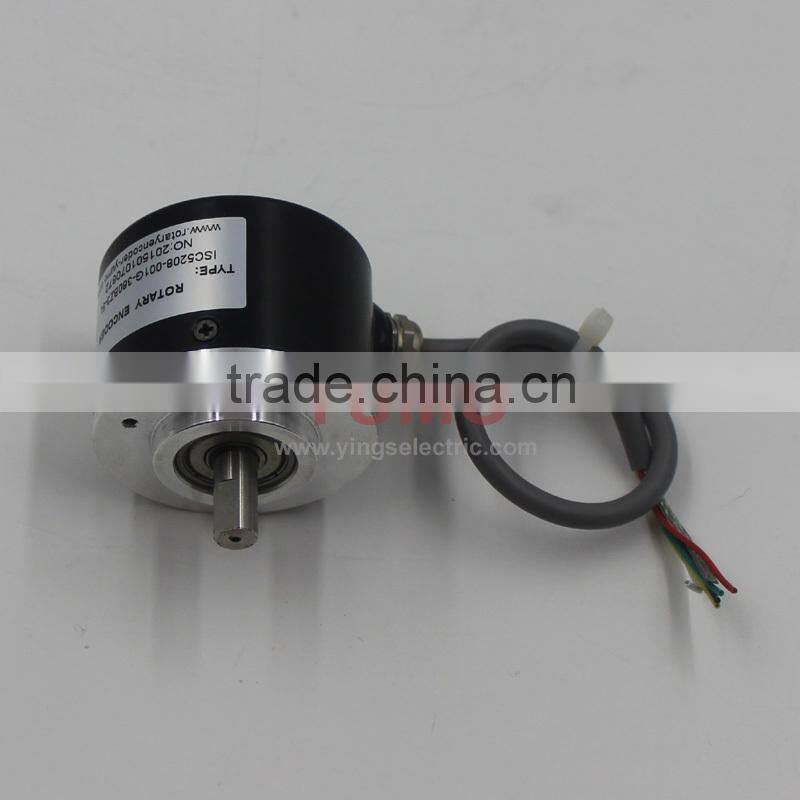

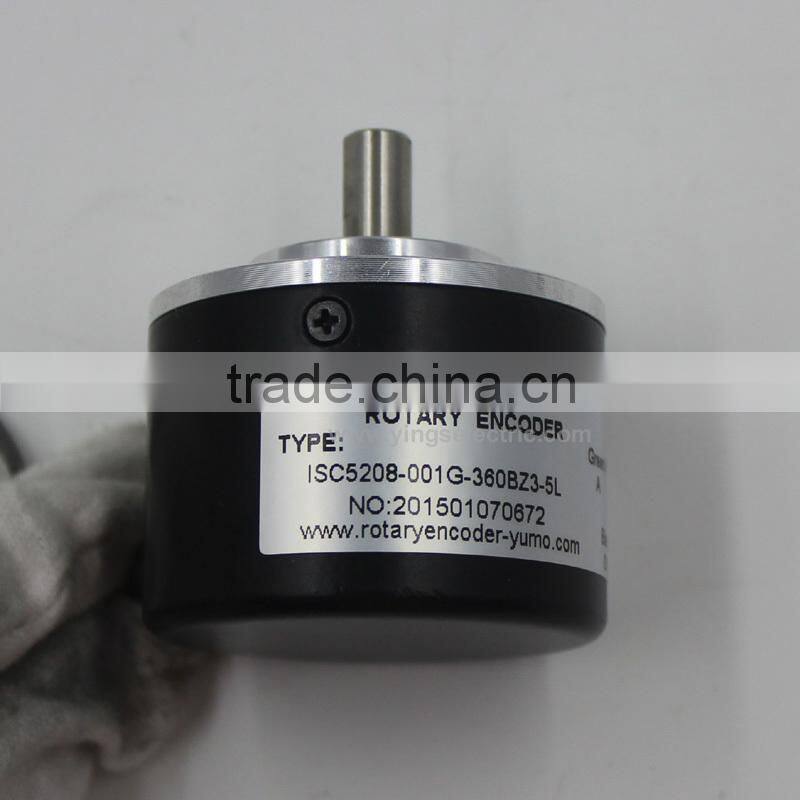

ISC5208-001G-360BZ3-5L shaft encoder
ISC5208 360 phase CNC system Machine Solid shaft encoder optical price incremental rotary encoder ISC5208 360 phase CNC system Machine Solid shaft encoder optical price incremental rotary encoder ISC5208 360 phase CNC system Machine Solid shaft encoder optical price incremental rotary encoder
Shaft encoder, optical encoder
1.Shaft diameter 8mm
2.Housing diameter 52mm
3.clamping flange
Encoder D=52mm,Shaft 8mm,100~2500 P/R, DC 5~24V
1. Features of Shaft Incremental rotary encoder (ISC5208) :
- Have small volume, weight is light, install it conveniently, the interchangeability is good, the work life is long.
- External diameter φ 52, the hole of the axle 30mm, the fixture mouth 8mm, side cable entry.
-Adapt to the roboticized field.
- No. Of pulse: 100, 120, 125, 150, 180, 200, 250, 256, 300, 260, 400, 500, 512, 600, 720, 800, 900, 1000, 1024, 1200, 1800, 2048, 2500 (other PR can be indicated when order)
- Shaft Incremental Rotary encoder DC 5~24V
- Output: NPN, PNP open collector, voltage, push pull and linedreiver.
2.Technical Specification
Property project |
Specific parameter |
Out wave & duty ratio |
square wave & 0.5T±0.1T |
Current Consumption |
≤150mA |
Response frequency |
0-100KHz |
Max.permissible revolution |
6000rpm |
Moment of inertia |
3.5*10-6Kg.m2 |
Starting torque |
1.5*10-3Nm |
Shaft loading |
Radical:35N / Thrust :25N |
IP rating |
IP54 |
Operate & Stock temperature |
-30C-80C / -40C-100C |
Ambient humidity |
30-85%(with no condensation) |
Power supply |
DC+5V / +5-12V / +12-24V |
Shock resistance |
980m/s2,6ms,2 times each in X,Y,Z directions |
Vibration resistance |
50m/s2,10-200Hz,2 times each in X,Y,Z directions |
Operating life |
MTBF≥25000h (+25C,2000rpm) |
Output voltage |
Vh≥85% Vcc,Vi≤0.3V |
Weight |
0.21kg |
