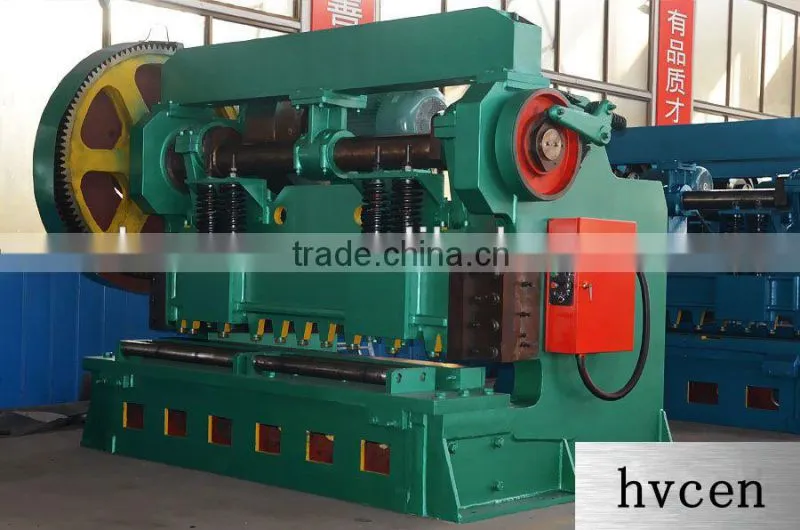

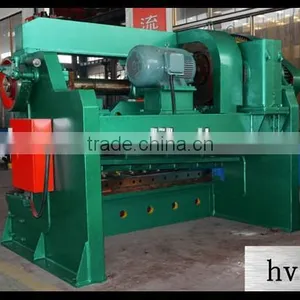

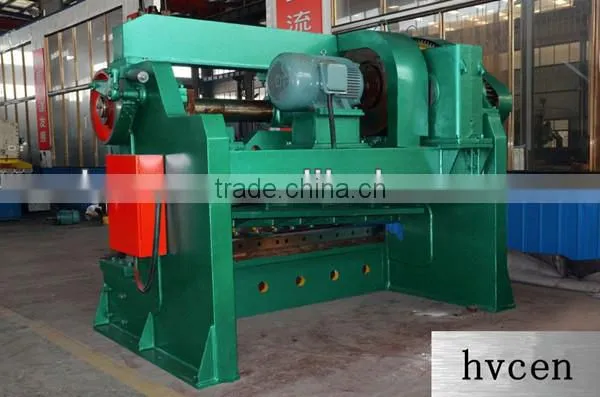

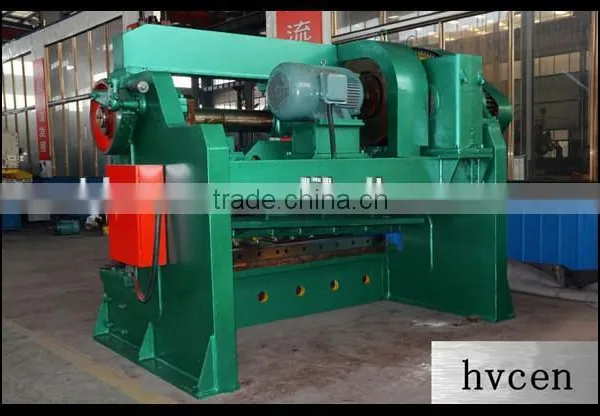

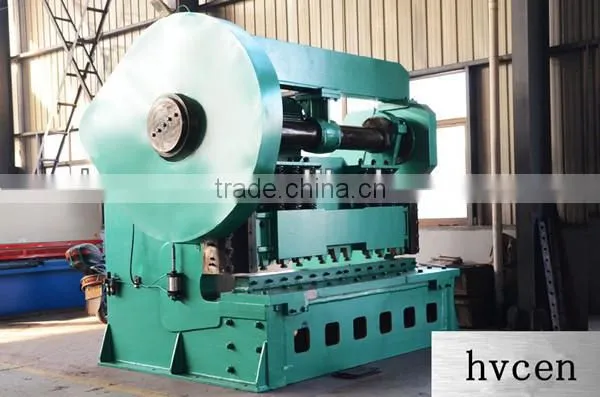

manual sheet metal cutting machine/portable laser cutting machine
Ⅰ FEATURE OF Q11 Mechanical shearing machine
1.Tungsten Steel Edged Guillotine Shear Blades which give a long cutting life
2.Extra long guides for the cutting beam
3.Extra long side gauges or squaring cuts, these can be fitted in a number of positions on the table and thus save
undue wear at any one point of the shear blades.
4.Front gauge with extension brackets and back gauge, which is fitted with movable gauging points of hardened
steel
5.Guards enclose the Flywheel, the Vee belts, the gears and the primary drive shaft
6.It is especially suitable for metal construction work,shipyards,boiler,plants as well as metallurgy and mine factories to cut steel plates or to finish crude edges of the plate materials.
7.This machine is of simple construction, nice design, sensitive and reliable control and easy maintenance, low
energy consumption.
We offer various models and specifications for your choice. OEM service is available.
Ⅱ Q11 Mechanical shearing machine Technical data
No. |
Specification |
Value |
Unit |
|
1 |
Model |
Q11-13×2500 |
set |
|
2 |
Cutting thickness |
20 |
mm |
|
3 |
Cutting width |
2500 |
mm |
|
4 |
Travel Times |
25 |
n/min |
|
5 |
Cutting angle |
3° |
° |
|
6 |
Distance of back gauge |
750 |
mm |
|
7 |
Motor |
22 |
kw |
|
|
8
|
Dimension
|
L |
3950 |
mm |
W |
2800 |
mm |
||
H |
2900 |
mm |
||
9 |
Weight |
20000 |
kg |
|
We can supply various specifications of Press Brake, Plate Shearing Machine & Rolling Machine, with or without CNC according to customers' requirements .
We are also professional manufacturer of Punching Machine, Hydraulic Press, Iron Worker, Ventilation Equipment, Machine Tool Fittings, Bending Machine Dies, Punch Dies & Cutting tools.
Our products can be widely used in automobiles, ships, railway, aviation, metal works, electrical appliances, construction project, light industry and many other industries and fields.
All of our products have passed the ISO 9001 Quality System Certificate and CE Certificate.
If u want to know more information about our products, plz feel free to contact us! Welcome to visit our company!
