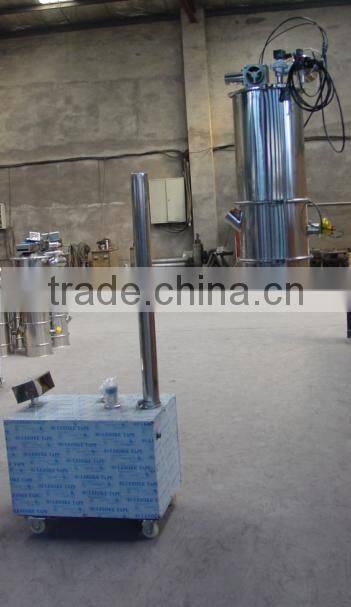

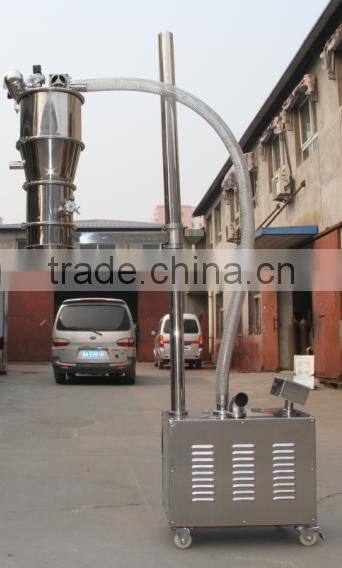

ZKS-3 Electrical vacuum conveyor for wheat flour
Ⅰ, Working Principle
ZKS vacuum feeder unit is using whirlpool air pump extracting air. The inlet of absorption material tap and whole system is made to be in vacuum state. The powder grains of material are absorbed into the material tap with ambient air and formed to be the air flowing with material. Passing the absorption material tube, they arrive to the hopper. The air and materials are separated in it. The separated materials are sent to the receiving material device. The control center controls the “on/off” state of pneumatic triple valve for feeding or discharging the materials.
In the vacuum feeder unit the compressed air opposite blowing device is fitted. When discharging the materials every time, the compressed air pulse oppositely blows the filter. The powder attached on the surface of filter is blown off for ensuring normal absorbing material.
Ⅱ,Technical Specification
Model |
Feeding Volume(kg/h) |
power of fan (kw) |
Pressure of Supplied Air(Mpa) |
ZKS-1 |
400 |
1.5 |
0.5-0.6 |
ZKS-2 |
600 |
2.2 |
0.5-0.6 |
ZKS-3 |
1200 |
3 |
0.5-0.6 |
ZKS-4 |
2500 |
5.5 |
0.5-0.6 |
ZKS-5 |
3200 |
5.5 |
0.5-0.6 |
ZKS-6 |
3200 |
5.5 |
0.5-0.6 |
ZKS-7 |
6000 |
7.5 |
0.5-0.6 |
ZKS-10-6 |
6000 |
7.5 |
0.5-0.6 |
ZKS-20-5 |
5000 |
11 |
0.5-0.6 |
Filter:
control panel:
- Standard export wooden case packaging
- Delivery time:10 working days after receiving 30% deposit
Punctual delivery time:
-We put your order into our tight production schedule, ensure your punctual delivery time.
-Production / inspection report before your order packed.
-Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
-We respect your feed back after receive the goods.
-We provide 12-24 months warranty after goods arrive.
-We promise all spare parts available in lifetime use.
-We large your complain within 48 hours.
Professional sales:
-We value every inquiry sent to us, ensure quick competitive offer.
-We cooperate with customer to bid tenders. Provide all necessary document.
-We are a sales team, with all techinical support from engineer team.
1.Our company’s engineers have long been engaged in pharmaceutical machine designed and developed,more experienced.
2.Over 30 years of rich experience in design and manufacture, can not only ensure best Chinese pharma machine performance,and reliability is optimal in China.
3.Our company can provide 100% custom made service,according to your actual production process ,we can design and transformthe special machines for your use.
4.Our company can provide free sample testing service ,to make sure the machine you buy from us is 100% suitable for your product,
you can send us some samples of your products and we will offer you the free testing of our machines.
