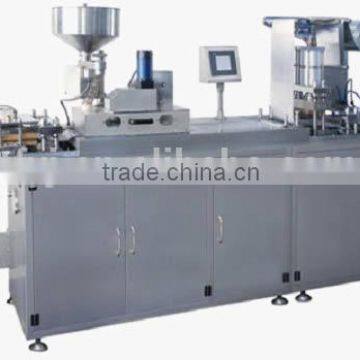

DPB-250 Flat Plate Automatic Blister Packing Machine
I.Product Specify

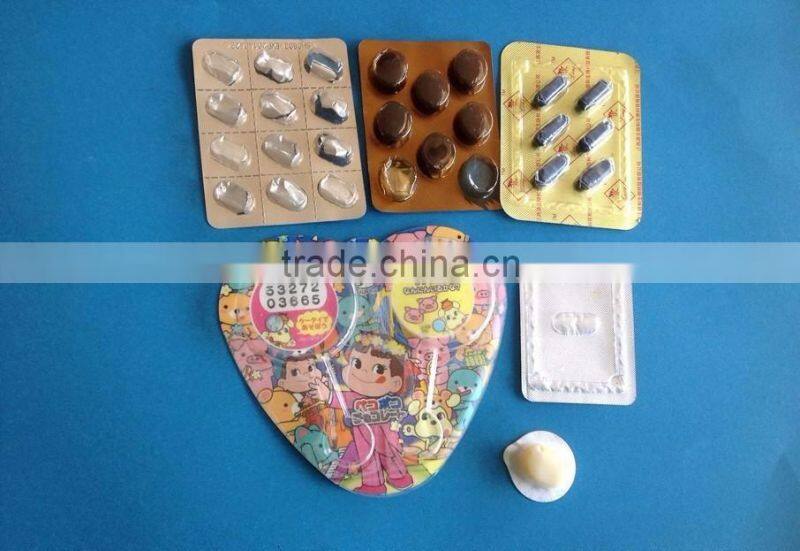

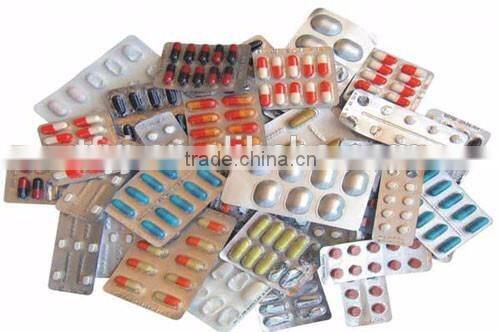

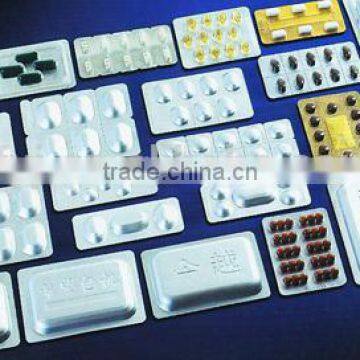

This product is a new packing machine designed by our company; it has reached domestic leading level. It is suitable for capsule, tablet, big honey pill, candy, liquid, paste, syringe as well as irregular shape Al-plastic, paper-plastic composite and Al-Al sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. This machine adopts micro-computer PLC, frequency converter, touch panel operation, high automation; it is an ideal blister packing equipment. The product passed the provincial science and technology appraisal.
II.Feature
1. Blister forming, hot-sealing, lot number printing, avulsion line impressing and cutting etc all adopt gear mandrel orientation, each can move freely in the mandrel when rotate the hand wheel, and it equipped with a staff gauge, easy to adjust and can be performed quickly and accurately.
2. Manipulator towing adopted culms double pendulum device and increased traction adjustable range (it can get to as long as 180mm), which can fit for blister packing of different sizes. All the movement of heating, forming, upper and lower net veins pressing, air cylinder pressing, feeding, lot number printing and cutting can be done very simple, automatically and accurately.
3. Positive pressure forming matched with mechanical punch ensures well blister forming, and can be collocate with special automatic feeder to fit for certain packing such as ampoule, vial, syringe, big honey pill, medical appliance or other special shapes. 4. Main transmission part adopts parallel axis and bevel wheel speed reducer. Forming, heat-sealing and impressing moulds adopt bolt orientating which leads to precise orientation, easy to change moulds and material saving. 5. Detachable design makes the machine easy to be carried and installed according to user’s requirement.
III.Main Technical Parameters
| Cutting Frequency (Times/min) | 6-50 |
| Production Capacity(pcs/h) | 35000-230000 |
| Max. Forming Areas And Depth (mm) | 240×150×26 (standard 240×150×14) |
| Travel Range (mm) | 40-160 (Can be lengthened to 180mm as user's requirements) |
| Standard Plate (mm) | 80×57 (Can be manufactured as user's requirements) |
| Air Pressure (Mpa) | 0.4-0.6 |
| Air Supply | ≥0.3m3 /min |
| Total Power | 380V/220V 50Hz 6.2kw |
| Main Motor Power (kw) | 1.5 |
| PVC Sheet (mm) | 0.15-0.5×250 |
| PTP Aluminum Foil (mm) | 0.02-0.035×250 |
| Dialysis Paper (mm) | 50-100g×250 |
| Mould Cooling | Tap Water Or Circulating Water |
| Overall Dimensions (mm) | 3000×730×1600 (L×W×H) |
| Weight (kg) | 1600 |
- Standard export wooden case packaging
- Delivery time:10 working days after receiving 30% deposit
Punctual delivery time:
-We put your order into our tight production schedule, ensure your punctual delivery time.
-Production / inspection report before your order packed.
-Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
-We respect your feed back after receive the goods.
-We provide 12-24 months warranty after goods arrive.
-We promise all spare parts available in lifetime use.
-We large your complain within 48 hours.
Professional sales:
-We value every inquiry sent to us, ensure quick competitive offer.
-We cooperate with customer to bid tenders. Provide all necessary document.
-We are a sales team, with all techinical support from engineer team.
1.Our company’s engineers have long been engaged in pharmaceutical machine designed and developed,more experienced.
2.Over 30 years of rich experience in design and manufacture, can not only ensure best Chinese pharma machine performance,and reliability is optimal in China.
3.Our company can provide 100% custom made service,according to your actual production process ,we can design and transformthe special machines for your use.
4.Our company can provide free sample testing service ,to make sure the machine you buy from us is 100% suitable for your product,
you can send us some samples of your products and we will offer you the free testing of our machines.
