Brief introduction
The product is made of alloy aluminum.
Hermetically sealed with glue to IP65, colorless anodized; suitable for electronic counting scales, platform scales and other small size electronic weighing devices.
It uses 4-core shielded cable (250mm)
Technical parameters
Comprehensive error | 0.02%FS |
Rated load | 0.3,1.5, 3, 12kg |
Rated output | 1.9±0.1mv/v |
Non-linearity | 0.02%FS |
Hysteresis | 0.02%FS |
Repeatability | 0.02%FS |
Creep | 0.02%FS/10min |
Zero balance | ±1%FS |
Input resistance | 405±10Ω |
Output resistance | 350±3Ω |
Insulation resistance | ≥5000MΩ(100VDC) |
Excitation voltage | 9 ~ 12VDC |
Compensated temp. range | -10 ~ +40℃ |
Use temp. range | -20 ~ +60℃ |
Tem. Effect on zero | 0.03%FS/10℃ |
Tem. Effect on span | 0.02%FS/10℃ |
Defend grade | IP65 |

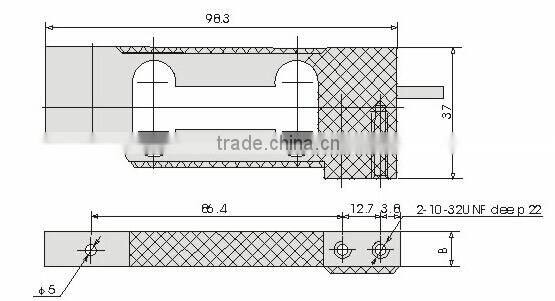

Recommended platform size: 200*200mm
Rated load | 0.3 | 1.5 | 3 | 12 |
B | 10 | 18 | 18 | 18 |
