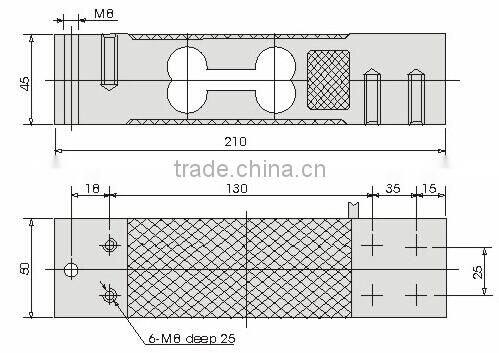

Help CenterSingle Point Type Load Cell
Related Products
Brief introduction
The product is made of alloy aluminum.
Hermetically sealed with glue to IP65, colorless anodized; suitable for electronic counting scales, platform scales and other small size electronic weighing devices.
It uses 4-core shielded cable (φ5*3000mm)
Technical parameters
Comprehensive error |
0.02%FS |
Rated load |
200,300kg |
Rated output |
2±0.1mv/v |
Non-linearity |
0.02%FS |
Hysteresis |
0.02%FS |
Repeatability |
0.1%FS |
Creep |
0.02%FS/10min |
Zero balance |
±2%FS |
Input resistance |
405±10Ω |
Output resistance |
350±3Ω |
Insulation resistance |
≥5000MΩ(100VDC) |
Excitation voltage |
9 ~ 12VDC |
Compensated temp. range |
-10 ~ +40℃ |
Use temp. range |
-20 ~ +60℃ |
Tem. Effect on zero |
0.02 & 0.03%FS/10℃ |
Tem. Effect on span |
0.02%FS/10℃ |
Defend grade |
IP65 |
Recommended platform size: 600*600mm
