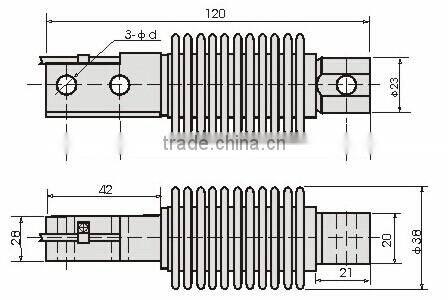

Shear Beam Type Load Cell

Name: Shear Beam Type Load Cell
Brand: GTEE
SKU: 133418895
Availability: InStock

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

GTEE

Model Number:

GTLC-1011

Contact Supplier Request Quote Chat Now

Guangzhou Guangtong Educational Equipment Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name GTEE

Model Number GTLC-1011

Usage Other, for weighing scales

Theory Resistance Sensor

Output Analog Sensor

Brief introduction

Alloy steel & stainless steel structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion; suitable for multiform environments; suitable for electronic platform scales, hopper scales, and other electronic weighing devices.

It uses 4-core shielded cable, Specifications: φ5*3000mm

Technical parameters

Rated load	10kg /20kg /30kg/50kg /100kg /200kg /300kg /350kg /500kg
Precision	C3
Comprehensive error	±0.02%FS
Rated output	2.0±0.002mv/v
Creep	±0.016%FS/30min
Zero balance	1.0%FS
Input resistance	350±5Ω
Output resistance	350±3Ω
Insulation resistance	≥5000MΩ (100VDC)
Temp. effect on span	±0.011%FS/10°C
Temp. effect on zero	±0.019%FS/10°C
Compensated temp. range	-10 ~ +40°C
Use temp. range	-20 ~ +55°C
Excitation voltage	9 ~ 12VDC
Safe overload	120%
Ultimate overload	150%
IP grade	IP68
