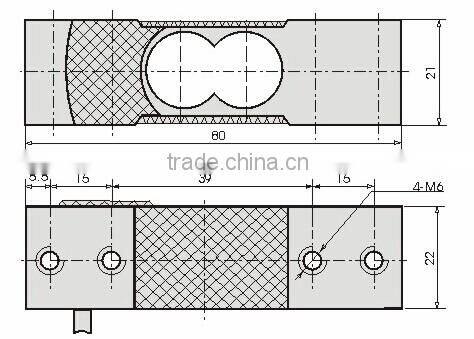

Help CenterSingle Point Type Load Cell
Related Products
Brief introduction
The product is made of alloy aluminum.
Hermetically sealed with glue to IP65, colorless anodized; suitable for electronic counting scales, platform scales and other small size electronic weighing devices.
It uses 4-core shielded cable (φ4*420mm)
Technical parameters
Comprehensive error |
0.02%FS |
Rated load |
5,8,10,15,20,30,35,100kg |
Rated output |
1.5±0.1mv/v |
Non-linearity |
0.02%FS |
Hysteresis |
0.02%FS |
Repeatability |
0.02%FS |
Creep |
0.02%FS/10min |
Zero balance |
±1%FS |
Input resistance |
1090±10Ω |
Output resistance |
1000±5Ω |
Insulation resistance |
≥5000MΩ(100VDC) |
Excitation voltage |
9 ~ 12VDC |
Compensated temp. range |
-10 ~ +40℃ |
Use temp. range |
-35 ~ +65℃ |
Tem. Effect on zero |
0.03%FS/10℃ |
Tem. Effect on span |
0.02%FS/10℃ |
Defend grade |
IP65 |
Recommended platform size: 200*200mm
