Help CenterShear Beam Type Load Cell
Related Products
Brief introduction
Alloy steel & stainless steel structure; glue-sealing, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, truck scale, floor scale and other electronic weighing devices.
It uses 4-core shield cable, Specifications: φ5*3000mm.
Technical parameters
Rated load | 500kg /1000kg/1500kg/2000kg |
Precision | C2 |
Comprehensive error | ±0.03%FS |
Rated output | 2.0±0.003mv/v |
Creep | ±0.024%FS/30min |
Zero balance | 1.0%FS |
Input resistance | 350±5Ω |
Output resistance | 350±3Ω |
Insulation resistance | ≥5000MΩ (100VDC) |
Temp. effect on span | ±0.017%FS/10°C |
Temp. effect on zero | ±0.023%FS/10°C |
Compensated temp. range | -10 ~ +40°C |
Use temp. range | -20 ~ +55°C |
Excitation voltage | 9 ~ 12VDC |
Safe overload | 150% |
Ultimate overload | 200% |
IP grade | IP66 |

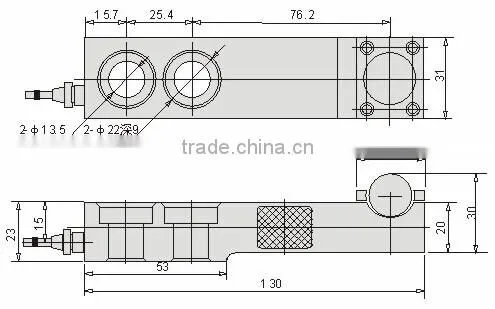

(Dimension unit: mm)
