Shear Beam Type Load Cell

Shear Beam Type Load Cell thumbnail-1
Shear Beam Type Load Cell photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GTEE
Model Number:
GTLC-1008
Contact Supplier Request Quote Chat Now
Guangzhou Guangtong Educational Equipment Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GTEE
Model Number GTLC-1008
Usage Other, for weighing scales
Theory Resistance Sensor
Output Analog Sensor

Specifications

Alloy steel & stainless steel structure; glue-sealing, nickel plated, waterproof and anti-corrosion.





Brief introduction

Alloy steel & stainless steel structure; hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, truck scale, floor scale and other electronic weighing devices.

It uses 4-core shielded cable, Specifications: φ5.8*6000mm.



Technical parameters

Rated load

500kg /1000kg /1500kg / 2000kg /2500kg /3000kg /5000kg

Precision

C2

Comprehensive error

±0.03%FS

Rated output

2.0±0.003mv/v

Creep

±0.024%FS/30min

Zero balance

1.0%FS

Input resistance

350±5Ω

Output resistance

350±3Ω

Insulation resistance

≥5000MΩ (100VDC)

Temp. effect on span

±0.017%FS/10°C

Temp. effect on zero

±0.023%FS/10°C

Compensated temp. range

-10 ~ +40°C

Use temp. range

-20 ~ +55°C

Excitation voltage

9 ~ 12VDC

Safe overload

150%

Ultimate overload

200%

IP grade

IP67 & IP68

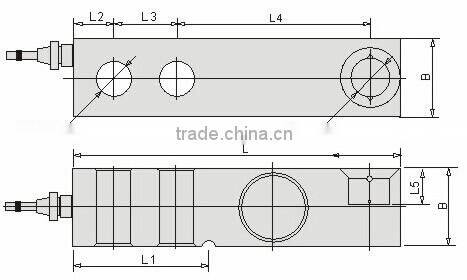

 Shear beam type load cell

                                                          (Dimension unit: mm)

Rated load

L

L1

L2

L3

L4

L5

B

D

d

500-2000

130

54.2

15.8

25.4

76.2

15

31.8

18

13.5

2500-5000

171.5

77.2

19.1

38.1

95.3

19

38.1

25

20
