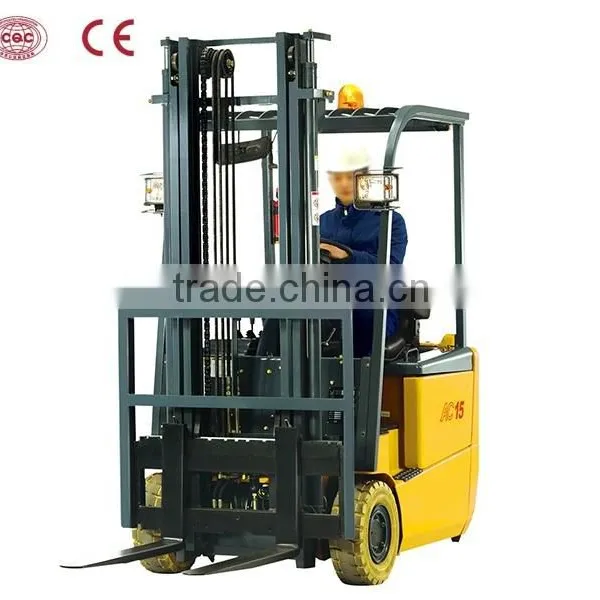

Help CenterManual Mini Forklift CPD15S (3 Wheel )Manual Mini Forklift
Related Products
-
Eectric Forklift Manual CPD18 Eectric Forklift ManualUS$ 7,000 - 8,000MOQ: 1 Unit -
Mini Electric Forklift Truck Of 1.5 Ton CPD15S Mini Electric Forklift TruckUS$ 9,000 - 12,000MOQ: 1 Unit
-
CHL 3 Ton Diesel Cheap ForkliftsUS$ 8,700 - 11,700MOQ: 1 Unit
-
CHL 1.5 Ton Electric Prices For Forklifts (3 Wheel )US$ 8,700 - 11,700MOQ: 1 Unit
-
CHL 1.5 Ton Small Forklift For SaleUS$ 6,700 - 7,800MOQ: 1 Unit
Specifications
manual mini forklift1.With CQC,CE certificate
2.With Euro 3 emission standard;
3.With modern design, r
1. Factory Introduction
2. Products Show
3. Details picture
4. Product testing
5. Product Standard Configuration
| ZF Drive unit includes Gearbos, AC-motor and oil-cooled disc brakes | 3-spool Control valve |
| ZAPI / CURTIS MOSFET electronic travel controllers and lifting controller | DC / DC Converter |
| High-mounted rear combination lights (back up, brake, turn sinal ) | Super-elastic tyre |
Front lights(turn singnal & clearance ) |
Head lights |
| 3300mm STD 2-Stage mast | Side view mirror |
| Tilt cylinder (5fwd / 7back ) | Battery |
| Standard fork | Load backrest |
6. Forklift Optional Devices and Accessories
| AC induction motor/AC controller hydraulic system | Nostandard forks in length | Sideshifter (Hurg up , Integrated ) |
| STD mast with other liftingheight | Colored tyre (white/green ) | Warning lights |
| Full free 2-stage mast | Battery charge | Full free 3-stage mast |
| Full free 3-stage mast | Optional battery |
7. Forklift Specifications
| Manufactur`s Name | ANHUI HELI CO.,LTD. | ||
| Model Designation | CPD15S | ||
| Configuration Number | CQ1/CQ2 | FQ1/FQ2 | |
| Load Capacity | Q(kg) | 1500 | |
| Load center | c(mm) | 500 | |
| Power Type | Battery | ||
| Wheelbase | y(mm) | 1250 | 1350 |
| Tyre Type | superelastic | ||
| Load Distance | x(mm) | 343 | |
| Mast Tilt Angle.F/R | α/β(°) | 5/7 | |
| Height with Mast Lowered | h1(mm) | 2220 | |
| Free lift | h2(mm) | 125 | |
| Standard Lift Height | h3(mm) | 3300 | |
| Height with Mast Extended | h4(mm) | 4330 | |
| Overhead Guard Height | h5(mm) | 2080 | 1980 |
| Seat Height | h6(mm) | 1000 | 910 |
| Fork Size | h7(mm) | 35×100×920 | |
| Fork Carriage to DIN 15173A/B | 2A | ||
| Length to fork face | L2(mm) | 1783 | 1888 |
| Overall Width | b1(mm) | 1070 | |
| Outside Turning Radius | Wa(mm) | 1445 | 1545 |
| Ground Clearance at mast,Loaded | m1(mm) | 90 | |
| Ground Clearance at centre of wheelbase,loaded | m2(mm) | 100 | |
| Travel Speed,with/without load | km/h | 14.2/15.4 | 14.5/15.5 |
| Lifting Speed,with/without load | mm/s | 300/440 | |
| Lifting Speed,with/without load | mm/s | 360/500 | |
| Lowering Speed | mm/s | 450 | |
| Grandient performance with load | % | 24 | |
| Max.draw bar pull with load | N | 11920 | |
| Acceleration time(10metres)W/O load | s | 4.5/4.0 | |
| Tatal Approximate Weight(W/O BATTERY) | kg | 3160/2421 | 3080/2372 |
| Axle Loading*:Unloaded,Front/Rear | kg | 1476/1648 | 1537/1543 |
| Axle Loading*:Loaded,Front/Rear | kg | 4006/654 | 4035/545 |
| Battery Voltage/rated capacity(5h) | V/Ah | 48/420 | 48/440 |
| Battery weight | kg | 739(700-780) | 708(673-743) |
| Battery to DIN 43531/35/36A/B/C | 43531A | 43531A | |
| Drive Motor-60Min.Rating | kW | 2×4.5 | |
| Pump Motor-15Min.Rationg | kW | 7.5(DC) | |
| Pump Motor-15Min.Rationg | 11(AC) | ||
| Drive Motor Controll Method | Mosfet/AC | ||
| Pump Motor Controll Method | Mosfet/DC | ||
| Pump Motor Controll Method | Mosfet/AC | ||
| Service Brake/Parking Brake | Hydrautic/Mechanical | ||
| Relief Pressure | Mpa | 14.5 |
|
8. Forklift Optional attachments
9. Product warranty term
- 15 months or 2000 working hours (which comes first).
- We provide the replacement parts for free within the warranty period.
10. Certificates
11. FAQ
1. Who is HELI ?
HELI is the forklift first brand in China. Racking Top 9 in the global forklift Suppliers in 2012 year. Market share 32% in domestic market
and export to more than 150 countries.
2. What is brand CHL?
CHL is a new brand created by the HELI factory on 2013. It is a new business of HELI.
3. What is the difference between HELI brand forklift and CHL brand forklift ?
| Same | Difference |
| Same Factory | Different Painting Color |
| Same Components | Different Brand Name |
| Same Assembly Line | Different Brand Name |
| Same Support Team | Better Price |
4. Who is Shintool ?
Shintool machinery is the company which been officially authorized by HELI factory to sell brand “CHL” forklift which produced by the
HELI factory.
We are sincerely looking for dealers for CHL forklifts in worldwide market,
and welcome your contact any time!
12. Our Services
At Shintool machinery, we supply ONE-STOP- SHOP solution service for warehouse equipments and Chinese brand forklift
parts
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business
with us and - also any other Chinese suppliers, we can be the position of supplying ONE STOP- SHOP export service. Our nearest
export port is Shanghai, and Ningbo.
We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment, LCL load, one
B/L supply and other export issue service.
13. Business Range
14. Contact Us
