Specifications
electric forklift manual1. With CQC CE certificate
2. With Euro 3 emission standard
3. With modern design,reliable quality
1. Factory Introduction

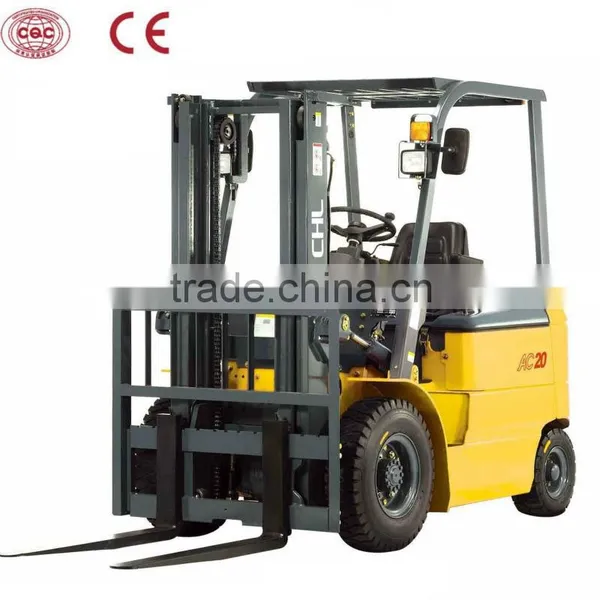

2. Products Show
3. Details picture
4. Product testing
5. Product Standard Configuration
| Wide view mast | Stanard fork | Fork carrige | Backrest |
| Standard seat | Overhead guard raincoat | LED combined display | Pneumatic tyres |
| Traction bar | Attached tools |
6. Forklift Optional Devices and Accessories
| Boom | Cabin | Load hook | String bar |
| Hinged fork | Back view mirror | Side shifter | Papery roll clamp |
| Alarm lamp | Solid tyre | Rear work lights | Protective fences |
| Multi function barrel clamp | Load stabilizer | Widened fork carriage | Lengthened fork |
| Load pusher | Accessory hydraulic component | Roating flat clamp | Dual - tyres protector |
| Fork sleeve | Tilt / Steering cylinder protection sleeve | Colored tyre (white / green ) | |
| User-specified color | Wide view double / triplex full free mast |
7. Forklift Specifications
| Manufacture's name | ANHU HELI CO., LTD. | ||
| Model Designation | CPD18 | ||
| Configuration Number | CJ1 | CJ2 | |
| Load Capacity | Q(kg) | 1750 | |
| Load Center | c(mm) | 500 | |
| Power Type | Battery | ||
| Operator Type | Seated | ||
| Wheelbase | y(mm) | 1370 | |
| Tyre Type | Pneumatic | ||
| Tyres Number(Front/Rear) | 41672 | ||
| Tread(centre of tyre),front | b10(mm) | 920 | |
| Tread(centre of tyre),rear | b11(mm) | 920 | |
| Tyre size,Front | 6.50-10-10PR | ||
| Tyre size,Rear | 5.00-8-10PR | ||
| Load Distance | x(mm) | 425 | |
| Mast Tilt Angle,F/R | α/β(º) | 6/12 | |
| Height with Mast Lowered | h1 | 1995 | |
| Free Lift | h2 | 155 | |
| Standard Lift Height | h3 | 3000 | |
| Height with Mast Extended | h4 | 4005 | |
| Overhead Guard Height | h6 | 2160 | |
| Fork Size | s/e/L | 35×100×920 | |
| Fork Carriage to DIN 15173 A/B | 2A | ||
| Length to fork face | L2 | 2160 | |
| Overall Width | b1 | 1070 | |
| Outside Turning Radius | Wa | 1960 | |
| Ground Clearance at mast ,Loaded | m1 | 110 | |
| Ground Clearance at centre of wheelbase, Loaded | m2 | 125 | |
| Travel Speed,with/without load | km/h | 14/15 | |
| Lifting Speed,with/without load | mm/s | 280/530 | |
| Lifting Speed,with/without load | mm/s | 330/490 | |
| Lowering Speed | mm/s | 450 | |
| Gradient performance with load | % | 15 | |
| Max.draw bar pull with load | N | 9500 | |
| Battery Voltage/rated capacity(5h) | V/Ah | 48/550 | |
| battery weight | kg | 1075 | |
| Compartment for Battery size | mm | 727×980×500 | |
| Drive Motor-60 Min. Rating | kw | 8.0(AC) | |
| Pump Motor-15 Min.Rating | kw | 8.6(DC) | |
| Pump Motor-15 Min.Rating | kw | 10(AC) | |
| Drive Motor Control Method | MOSFET/AC | ||
| Pump Motor Control Method | MOSFET/AC | ||
| Pump Motor Control Method | MOSFET/AC | ||
| Service Brake/Parking Brake | Hydraulic/Mechanical | ||
| Relief Pressure | Mpa | 17.5 |
|
8. Forklift Optional attachments
9. Product warranty term
- 15 months or 2000 working hours (which comes first).
- We provide the replacement parts for free within the warranty period.
10. Certificates
11. FAQ
1. Who is HELI ?
HELI is the forklift first brand in China. Racking Top 9 in the global forklift Suppliers in 2012 year. Market share 32% in domestic market
and export to more than 150 countries.
2. What is brand CHL?
CHL is a new brand created by the HELI factory on 2013. It is a new business of HELI.
3. What is the difference between HELI brand forklift and CHL brand forklift ?
| Same | Difference |
| Same Factory | Different Painting Color |
| Same Components | Different Brand Name |
| Same Assembly Line | Different Brand Name |
| Same Support Team | Better Price |
4. Who is Shintool ?
Shintool machinery is the company which been officially authorized by HELI factory to sell brand “CHL” forklift which produced by the
HELI factory.
We are sincerely looking for dealers for CHL forklifts in worldwide market,
and welcome your contact any time!
12. Our Services
At Shintool machinery, we supply ONE-STOP- SHOP solution service for warehouse equipments and Chinese brand forklift
parts
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business
with us and - also any other Chinese suppliers, we can be the position of supplying ONE STOP- SHOP export service. Our nearest
export port is Shanghai, and Ningbo.
We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment, LCL load, one
B/L supply and other export issue service.
