Zapi Curtis Controller 1.5-3.5ton Battery Forklift
What's the Best Forklift from China?
Let me show you CHL Forklift
CHL is one brand of Anhui HELI Group, which was originally founded in 1958. For the last 22 years, HELI Group has always been the No.1 in China. In 2013, it’s ranking No.8 in the world market.
Based on HELI Group’s rich experience and advanced technology, CHL forklift trucks is with TOP lever quality in China. Last Year, HELI Group sold out more than 85000 units forklifts. Mass production largely help lower our price. And introducing the most advanced SAP-EPR & SAP-PLM system and implementing the "Lean Manufacturing" philosophy ensure CHL forklifts tough, reliable, and competitive.
For every forklift, we ensure longer warranty and complete, prompt after-sale service for you.
CHL forklift trucks, Maximize your value, your best choice.
Zapi Curtis Controller 1.5-3.5ton Battery Forklift
Standard Configuration of CHL 3ton 3.5ton Battery Forklift
- Curtis Controller Or Zapi Controller
- Advanced HELI Hydraulic & Automatic Transmission
- 80V/480Ah Battery
- Battery Charger
- Electric-hydraulic Directional Control Valve
- Duplex Mast Lifting Height 3000mm
- Pneumatic tyres (2 front/2 rear)
- Fork Length 1070mm
- With Beacon
- Comfortable Seat with Armrest and Safe-belt, etc
Wide View Mast |
Standard Fork |
Fork Carriage |
Backrest |
Three-spool Control Valve |
Battery Group |
Standard Seat |
Overhead Guard |
Overhead Guard Raincoat |
LCD Combined Display |
Pneumatic Tyres |
Traction Bar |
Attached Tools |
|
What's the Optional Equipment you can choose?
- Full-free Duplex or Triplex Mast
- Lifting Height 3m-7m
- Side Shift
- Solid Tyres
- Suspension Seat
- Driver’s Cabin
- Customized Color, etc
Cabin |
Boom |
Load Hook |
Back View Mirror |
Side Shifter |
Paper Roll Clamp |
Alarm Lamp |
Solid Tyre |
Rear Work Lights |
Protective Fence |
Multi-function Barrel Clamp |
Load Stabilizer |
Widened Fork Carriage |
Longer Fork |
Load Pusher |
Fork Sleeve |
Rotating Flat Clamp |
Dual-tyres Protector |
Accessory Hydraulic component |
Tilt/Steering Cylinder Protection Sleeve |
Colored Tyre |
Wide-view Double Mast |
Full-free Triplex Mast |
User-specified Color |
Zapi Curtis Controller 1.5-3.5ton Battery Forklift

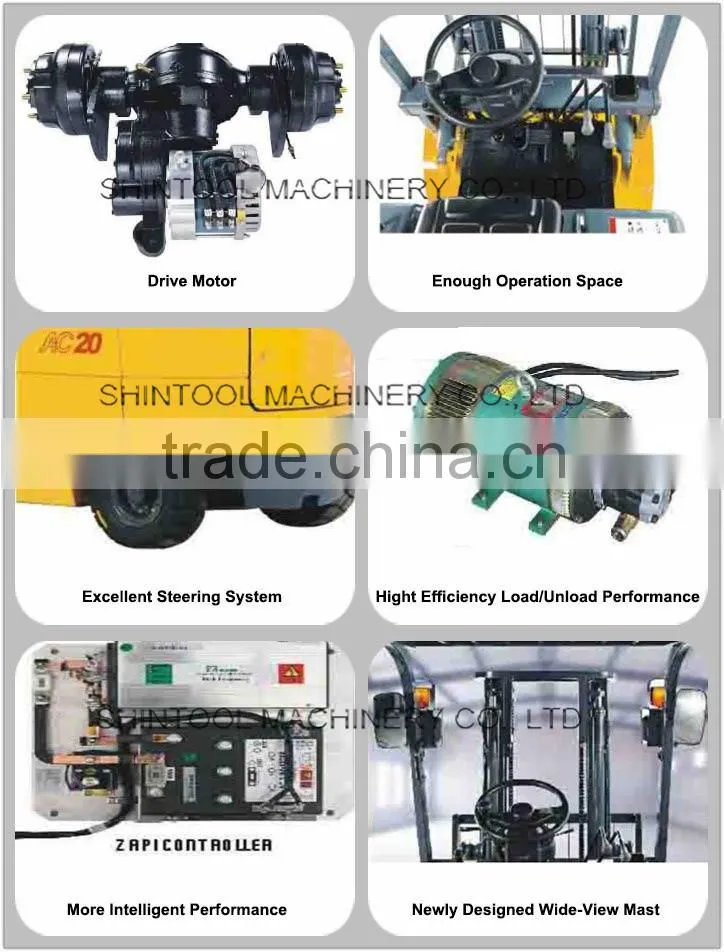

Detailed Pictures of CHL Battery Forklift
Specification of CHL Battery Forklift
| General | Manufacture | ANHU HELI CO., LTD. | ||||||
| Model Designation | CPD25 | CPD30 | CPD35 | |||||
| Load Capacity | kg | 2500 | 3000 | 3500 | ||||
| Load Center | mm | 500 | 500 | 500 | ||||
| Power Type | Battery | Battery | Battery | |||||
| Size | Height with Mast Lowered | mm | 2000 | 2075 | 2180 | |||
| Free Lift | mm | 170 | 145 | 150 | ||||
| Standard Lift Height | mm | 3000 | 3000 | 3000 | ||||
| Height with Mast Extended | mm | 3995 | 4182 | 4177 | ||||
| Overhead Guard Height | mm | 2130 | 2215 | 2215 | ||||
| Fork Size | mm | 45×100×1070 | 45×125×1070 | 50×125×1070 | ||||
| Fork Carriage to DIN 15173 A/B | 2A | 3A | 3A | |||||
| Length to Fork Face | mm | 2398 | 2485 | 2550 | ||||
| Wheelbase | mm | 1515 | 1680 | 1680 | ||||
| Overall Width | mm | 1150 | 1225 | 1225 | ||||
| Total Approximate Weight(W/O battery) | kg | 4200 | 4810/3230 | 5500/3920 | ||||
| Mast Tilt Angle(F/R) | 6/12 | 6/10 | 6/10 | |||||
| Outside Turning Radius | mm | 2065 | 2210 | 2270 | ||||
| Ground Clearance at Mast (Loaded) | mm | 140 | 135 | 135 | ||||
| Ground Clearance at Centre of Wheelbase (Loaded) | mm | 155 | 150 | 150 | ||||
| Performance | Travel Speed (with/without load) | km/h | 14/15 | 15.0/15.5 | 14.5/15.0 | |||
| Lifting Speed (with/without load) | mm/s | 260/490 | 280/450 | 250/440 | ||||
| Lowering Speed | mm/s | 450 | 500 | 500 | ||||
| Gradient Performance (Loaded) | % | 15 | 15 | 12 | ||||
| Max.Draw Bar Pull (Loaded) | N | 12800 | 15600 | 17500 | ||||
| Tyres | Tyre Type | Pneumatic | Pneumatic | Superelastic | ||||
| Tyres Number (Front/Rear) | 2/2 | 2/2 | 2/2 | |||||
| Tread (Front/Rear) | mm | 960/950 | 1000/980 | 1000/980 | ||||
| Tyre Size (Front) | 7.00-12-12PR | 28×9-15-12PR | 28×9-15 | |||||
| Tyre Size (Rear) | 18×7-8-14PR | 18×7-8-14PR | 18×7-8 | |||||
| Battery | Battery Voltage/Rated Capacity(5h) | V/Ah | 48/600 | 80/480 | 80/480 | |||
| Battery Weight | kg | 1125 | 1580 | 1580 | ||||
| Compartment for Battery Size | mm | 525×1050×807 | ||||||
|
Motor & Controller |
Drive Motor-60 Min. Rating | kw | 11.1(AC) | 16.6(AC) | 16.6(AC) | |||
| Pump Motor-15 Min.Rating | kw | 10.5(DC) | 13(DC) | 13(DC) | ||||
| Drive Motor Control Method | MOSFET/AC | MOSFET/AC | MOSFET/AC | |||||
| Pump Motor Control Method | MOSFET/DC | MOSFET/AC | MOSFET/AC | |||||
WHY CHOOSE CHL?
Becaues it's made by Anhui HELI Group No.1 in China.
Because We Treat Quality As Life!
1. All Key Parts From Japan & Germany
All key parts of CHL forklifts are from Japan, Germany, and America, especially engine, tranmission parts, sealing, bearings.
2. The Best Transmission System
In China, HELI Group is the only one who has core technology and complete transmission production line.
All key parts are imported from Japan and Germany. HELI technology has been validated by the world market for over 20 years, it can be working continually for 800 hours on average without any trouble. HELI transmission technology is at least 10 years ahead than China other suppliers, the running stability is twice.
3. Strict Parts Testing
All parts CHL forklifts use must stand two technicla tests, some are three. HELI Group has a set of very strict procedure in choosing parts suppliers. HELI Group only choose long cooperation suppliers, this largely avoid the risk of breakdown in parts supply chain.
4. Strict Forklift Testing
In order to make reliabble forklifts, engineers and workers do whole strict tests on every part of CHL forklifts.
5. Certificates CHL Battery Forklift
What's the Warranty & Service?
Warranty: 15 months or 2000 working hours (which comes first).
- With advanced SAP system, all parts No. and parts information can be tracked immediately.
- No waiting, over 20000 kinds of main spare parts are in-stock.
- All warranty parts will be sent to you by TNT/DHL without any delay and any charge.
All warranty parts will be sent to you by TNT/DHL without any delay and any charge.
In China, only CHL can do this!
FAQ
Q1. What's the transmission CHL forklift use?
CHL is with HELI Hydraulic Automatic Transmission (auto gear, powershift). This transmission is based on real TCM technology, all the key parts are from Janpan or Germany, the quality is the best. It has been tested by market more than 20 years.
Q2. What's the CHL warranty period?
15 months or 2000 working hours (which comes first).
For some parts, 24 months or 4000 hours.
Q3. How CHL do the after-sale service?
HELI Group has the best after-sale service system.
Depending on the advanced SAP system, all parts No. and parts information can be tracked immediately.
Over 20,000 kinds of main spare parts are in-stock.
Welcome your contact any time!
Which One Do You Need?
We supply full range forklift trucks -- Diesel, Gasoline, Lpg, Electric
CHL Diesel: 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton, 7.5 ton, 8 ton, 10 ton
CHL Gasoline/Lpg: 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
CHL Electric: 1 ton, 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
CHL Heavy Duty: 14 ton -- 46 ton
For Best Price, Send Email Now!
CHL forklift is with Top Level Quality and Best Service.
For more information about CHL Zapi Curtis Controller 1.5-3.5ton Battery Forklift, Contact Us Now!
