Specifications
CHL Electric Forklift 1-3.5ton1.Made By China HELI
2.Curtis Or Zapi Controller
3.Modern Design
4.Good CHL Electric Forklift
CHL is one brand of Anhui HELI Group, which was originally founded in 1958. For the last 22 years, HELI Group has always been the No.1 in China. In 2013, it’s ranking No.8 in the world market.
Based on HELI Group’s rich experience and advanced technology, CHL forklift trucks is with TOP lever quality in China. Last Year, HELI Group sold out more than 85000 units forklifts. Mass production largely help lower our price. And introducing the most advanced SAP-EPR & SAP-PLM system and implementing the "Lean Manufacturing" philosophy ensure CHL forklifts tough, reliable, and competitive.
For every forklift, we ensure longer warranty and complete, prompt after-sale service for you.
CHL forklift trucks, Maximize your value, your best choice.

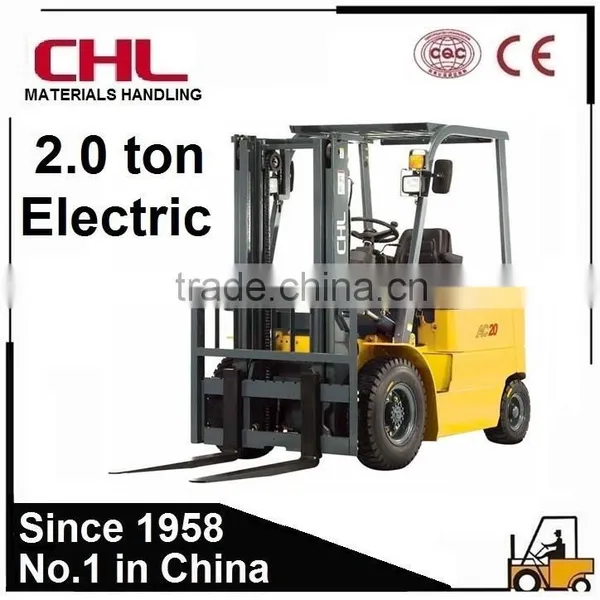

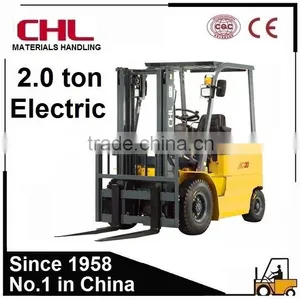

CHL Reliable Electric Forklift
Standard Configuration of CHL 2 Ton Electric Forklift
- Curtis Controller Or Zapi Controller
- 48V/600Ah Battery
- Battery Charger
- Advanced HELI Hydraulic Automatic Transmission
- Electric-hydraulic Directional Control Valve
- Duplex Mast Lifting Height 3000mm
- Pneumatic tyres (2 front/2 rear)
- Fork Length 920mm
- Comfortable Seat with Armrest and Safe-belt, etc
Wide View Mast |
Standard Fork |
Fork Carriage |
Backrest |
Three-spool Control Valve |
Battery Group |
Standard Seat |
Overhead Guard |
Overhead Guard Raincoat |
LCD Combined Display |
Pneumatic Tyres |
Traction Bar |
Attached Tools |
|
Optional Choice of CHL 2 Ton Electric Forklift
- Full-free Duplex or Triplex Mast
- Lifting Height 3m-7m
- Side Shift
- Solid Tyres
- Suspension Seat
- Driver’s Cabin
- Customized Color, etc
Cabin |
Boom |
Load Hook |
Back View Mirror |
Side Shifter |
Paper Roll Clamp |
Alarm Lamp |
Solid Tyre |
Rear Work Lights |
Protective Fence |
Multi-function Barrel Clamp |
Load Stabilizer |
Widened Fork Carriage |
Longer Fork |
Load Pusher |
Fork Sleeve |
Rotating Flat Clamp |
Dual-tyres Protector |
Accessory Hydraulic component |
Tilt/Steering Cylinder Protection Sleeve |
Colored Tyre |
Wide-view Double Mast |
Full-free Triplex Mast |
User-specified Color |

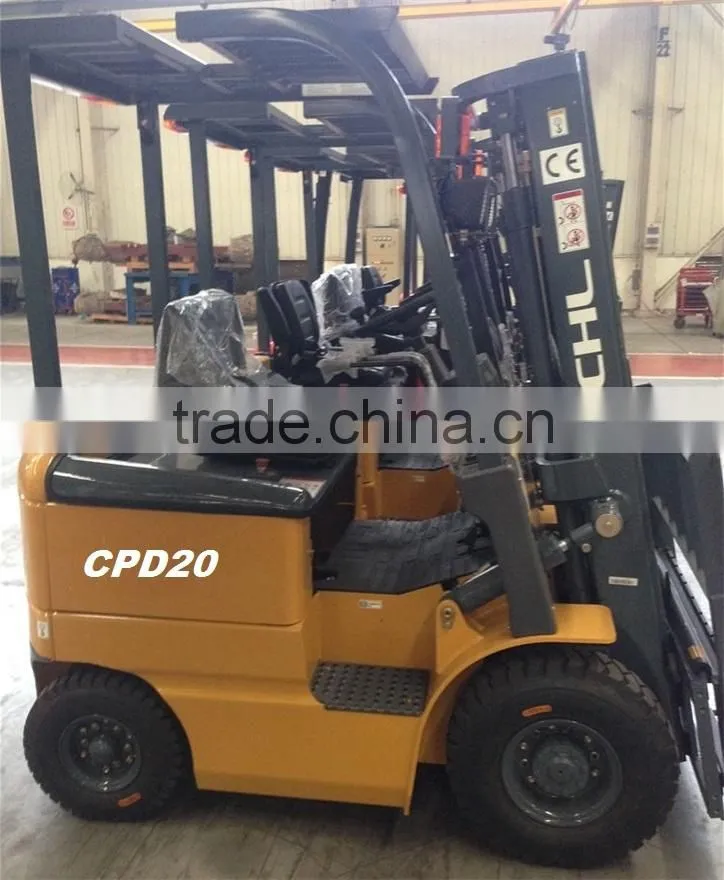

Detailed Pictures of CHL 2 Ton Electric Forklift
Specification of CHL 2 Ton Electric Forklift
| General | Manufacture | ANHU HELI CO., LTD. | ||||||
| Model Designation | CPD15 | CPD20 | CPD25 | |||||
| Load Capacity | kg | 1500 | 2000 | 2500 | ||||
| Load Center | mm | 500 | 500 | 500 | ||||
| Power Type | Battery | Battery | Battery | |||||
| Size | Height with Mast Lowered | mm | 1995 | 2000 | 2000 | |||
| Free Lift | mm | 155 | 170 | 170 | ||||
| Standard Lift Height | mm | 3000 | 3000 | 3000 | ||||
| Height with Mast Extended | mm | 4005 | 3995 | 3995 | ||||
| Overhead Guard Height | mm | 2130 | 2130 | 2130 | ||||
| Fork Size | mm | 35×100×920 | 45×100×920 | 45×100×1070 | ||||
| Fork Carriage to DIN 15173 A/B | 2A | 2A | 2A | |||||
| Length to Fork Face | mm | 2040 | 2398 | 2398 | ||||
| Wheelbase | mm | 1250 | 1515 | 1515 | ||||
| Overall Width | mm | 1070 | 1150 | 1150 | ||||
| Total Approximate Weight(W/O battery) | kg | 2950 | 4050 | 4200 | ||||
| Mast Tilt Angle(F/R) | 6/12 | 6/12 | 6/12 | |||||
| Outside Turning Radius | mm | 1820 | 2065 | 2065 | ||||
| Ground Clearance at Mast (Loaded) | mm | 110 | 140 | 140 | ||||
| Ground Clearance at Centre of Wheelbase (Loaded) | mm | 125 | 155 | 155 | ||||
| Performance | Travel Speed (with/without load) | km/h | 14/15 | 14/15 | 14/15 | |||
| Lifting Speed (with/without load) | mm/s | 270/450 | 280/490 | 260/490 | ||||
| Lowering Speed | mm/s | 450 | 450 | 450 | ||||
| Gradient Performance (Loaded) | % | 17 | 16 | 15 | ||||
| Max.Draw Bar Pull (Loaded) | N | 8600 | 12300 | 12800 | ||||
| Tyres | Tyre Type | Pneumatic | Pneumatic | Pneumatic | ||||
| Tyres Number (Front/Rear) | 2/2 | 2/2 | 2/2 | |||||
| Tread (Front/Rear) | mm | 890/920 | 960/950 | 960/950 | ||||
| Tyre Size (Front) | 6.50-10-10PR | 7.00-12-12PR | 7.00-12-12PR | |||||
| Tyre Size (Rear) | 5.00-8-10PR | 18×7-8-14PR | 18×7-8-14PR | |||||
| Battery | Battery Voltage/Rated Capacity(5h) | V/Ah | 48/400 | 48/600 | 48/600 | |||
| Battery Weight | kg | 975 | 1125 | 1125 | ||||
| Compartment for Battery Size | mm | 617×980×465 | 525×1050×807 | 525×1050×807 | ||||
|
Motor & Controller |
Drive Motor-60 Min. Rating | kw | 8.0(AC) | 11.1(AC) | 11.1(AC) | |||
| Pump Motor-15 Min.Rating | kw | 7.5(DC) | 10.5(DC) | 10.5(DC) | ||||
| Drive Motor Control Method | MOSFET/AC | MOSFET/AC | MOSFET/AC | |||||
| Pump Motor Control Method | MOSFET/DC | MOSFET/DC | MOSFET/DC | |||||
CHL Forklift Manufacturer -- Anhui HELI Group
Treat Quality As Life! CHL Electric Forklift, You Can Trust.
1. Foreign Original Parts
All key parts of CHL forklifts are from Japan, Germany, and America, especially engine, tranmission parts, sealing, bearings.
2. Advanced Transmission Technology
In China, HELI Group is the only one who has core technology and complete transmission production line.
All key parts are imported from Japan and Germany. HELI technology has been validated by the world market for over 20 years, it can be working continually for 800 hours on average without any trouble. HELI transmission technology is at least 10 years ahead than China other suppliers, the running stability is twice.
3. Strict Parts Testing
All parts CHL forklifts use must stand two technicla tests, some are three. HELI Group has a set of very strict procedure in choosing parts suppliers. HELI Group only choose long cooperation suppliers, this largely avoid the risk of breakdown in parts supply chain.
4. Strict Forklift Testing
In order to make reliabble forklifts, engineers and workers do whole strict tests on every part of CHL forklifts.
5. Certificates of CHL Electric Forklift
Warranty of CHL Electric Forklift
- Warranty: 15 months or 2000 working hours (which comes first).
- All warranty parts will be sent at first time by TNT/DHL without any delay and any charge.
Over 20000 kinds of main spare parts are in-stock.
- With advanced SAP system, all parts No. and parts information can be tracked immediately.
CHL Forklift Truck Range
We supply full range forklift trucks -- Diesel, Gasoline, Lpg, Electric
Diesel: 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton, 7.5 ton, 8 ton, 10 ton
Gasoline/Lpg: 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
Electric: 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
Heavy Duty: 12 ton -- 46 ton
We only supply forklifts with Top Level Quality and Best Service.
For price of CHL electric forklift or others, Welcome your contact any time.
