3500kg Forklift Truck Diesel Forklift 3.5 Ton
What's the Best Forklift from China?
Let me show you CHL Forklift
CHL is one brand of Anhui HELI Group, which was originally founded in 1958. For the last 22 years, HELI Group has always been the No.1 in China. In 2013, it’s ranking No.8 in the world market.
Based on HELI Group’s rich experience and advanced technology, CHL forklift trucks is with TOP lever quality in China. Last Year, HELI Group sold out more than 85000 units forklifts. Mass production largely help lower our price. And introducing the most advanced SAP-EPR & SAP-PLM system and implementing the "Lean Manufacturing" philosophy ensure CHL forklifts tough, reliable, and competitive.
For every forklift, we ensure longer warranty and complete, prompt after-sale service for you.
CHL forklift trucks, Maximize your value, your best choice.
3500kg Forklift Truck Diesel Forklift 3.5 Ton (2-3.5ton)
Standard Configuration of CHL Diesel Forklift 3.5 Ton
- Japan Genunie 4JG2 Engine (large power)
- Advanced HELI Hydraulic Atutomatic Transmission
- Electric-hydraulic Directional Control Valve
- Duplex Mast Lifting Height 3000mm
- Pneumatic Tyres
- Fork Length 1070mm
- Comfortable Seat with Armrest and Safe-belt, etc.
| Fork | Tool | Transmission Oil Dipstick | Backrest |
| Overhead Guard | Horn | Reversing Light | Hour Meter |
| Oil Lever Gauge | Charging Indicator | Water Temeperature Gauge | Oil Pressure Alarm |
| Steering Indicator | Wide View Mast | Standard Seat | Front Lamp |
| Rear Combined Light | Pedal Pad | Overhead Guard Rain Cover | Transmission Oil Filter Element |
| Backward Buzzer | Traction Pin | Hydraulic Oil Return Circuit Filter Element | Neutral Gear Safety Swith |
| Control Valve | Air Inletting Device | Lifting and Tilting Operation Lever | Cable Type Packing Brake |
| Hydraulic Oil Dipstick | Preheating Indicator | Whoolley Hydraulic Powered Steering | Lifting Oil Circuit Flow Regulator |
| Durable Tread Tyre | Whirlwind Air Cleaner | Tilting Adjustable Steering Column | Engine Automatic Preheating System |
What's the Optional Equipment?
- China Xinchang Engine
- Lifting Height 3m-7m
- Full-free Duplex or Triplex Mast
- Side Shift, Solid Tyres, Suspension Seat
- Driver’s Cabin, Customized Color, etc.
| Cabin | Speedometer | Fire Extinguisher | Solid Tyre |
| Rear Working Lamp | Auxiliary Pipline | Transmission Oil Temperature Gauge | Customer Made Color |
| Suspension Seat | Warm Air Blower | High Air Exhaustiong Device | Tilt Cylinder Jacket |
3500kg Forklift Truck Diesel Forklift 3.5 Ton (2-3.5ton)

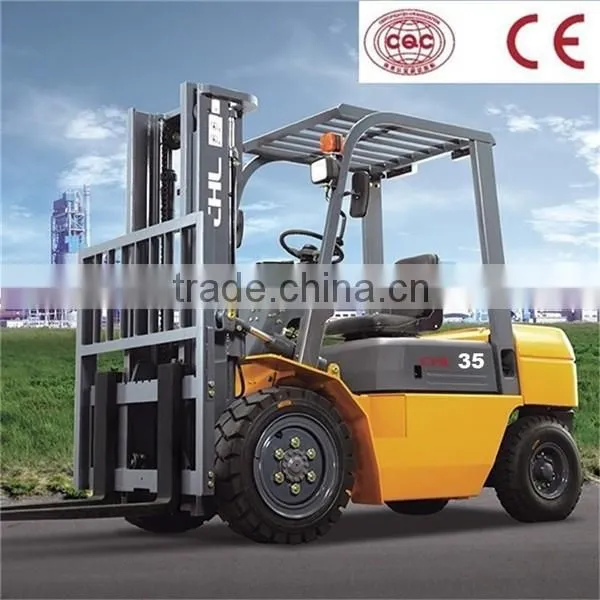

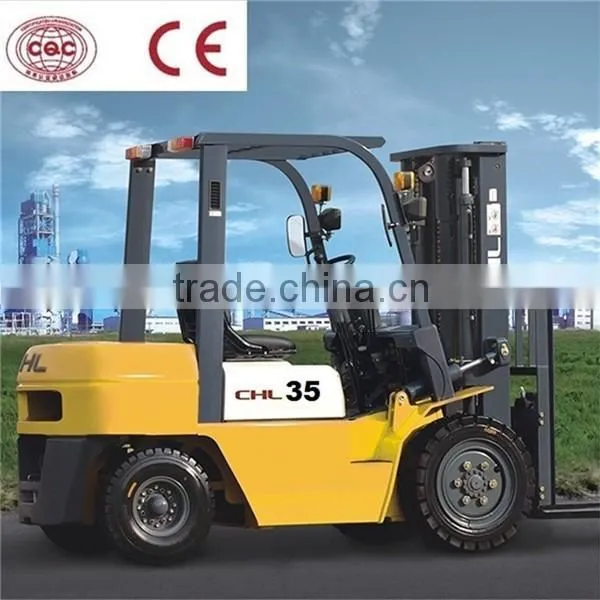

Detailed Pictures For CHL Diesel Forklift 3.5 Ton
Specification of CHL Diesel Forklift 3.5 Ton
| General | Manufacturer | Anhui Heli Co., Ltd | |||
| Model | CPCD25 | CPCD30 | CPCD35 | ||
| Power Type | Diesel | ||||
| Rated Capacity | kg | 2500 | 3000 | 3500 | |
| Load Center | mm | 500 | 500 | 500 | |
| Size | Overall max.lifting height(with backrest) | mm | 4030 | 4262 | 4262 |
| Max.Lifting height | mm | 3000 | 3000 | 3000 | |
| Height mast retracted(upright) | mm | 2000 | 2065 | 2180 | |
| Free lift height | mm | 170 | 160 | 170 | |
| Backrest height(from upper face of forks) | mm | 995 | 1227 | 1222 | |
| Overall height(overhead guard) | mm | 2170 | 2190 | 2190 | |
| Overall length(without forks) | mm | 3646/2576 | 3752/2682 | 3763/2693 | |
| Wheel base | mm | 1600 | 1700 | 1700 | |
| Min.groud clearance under mast | mm | 110 | 135 | 135 | |
| Overall width | mm | 1170 | 1225 | 1225 | |
| Lateral fork adjustment(Outside of fork) | mm | 1024/200 | 1060/250 | 1060/250 | |
| Tread(front) | mm | 970/970 | 1000/970 | 1000/970 | |
| Inside turning radius | mm | 2240 | 2400 | 2420 | |
| Outside turning radius | mm | 160 | 200 | 200 | |
| Min.intersecting aisle | mm | 2280 | 2380 | 2400 | |
| Tilting angles(forward/backward) | 6°/12° | 6°/12° | 6°/12° | ||
| Fork Size | mm | 1070*122*40 | 1070*125*45 | 1070*125*50 | |
| Service Mass | kg | 3680 | 4270 | 4700 | |
| Performance | Max.Traveling speeds(laden/unladen) | km/h | 18/19 | 19/20 | 19/19 |
| Lifting Speeds(laden/unladen) | mm/s | 506/545 | 465/490 | 370/400 | |
| Lowering Speeds(laden/unladen) | mm/s | 450/550 | 450/550 | 350/370 | |
| Max.Draw-bar pull(laden/unladen) | kN | 18.3/13.3 | 20/15.8 | 20/16 | |
| Max.Negotiable Gradient(laden/unladen) | % | 20/20 | 15/20 | 20/20 | |
| Tyre | Wheel (Front/Rear) X=Driving Wheel | 2X/2 | 2X/2 | 2X/2 | |
| Tyre(Front/Rear) | Pneumatic type | ||||
| Tyre size(Front) | 7.00-12-12PR | 28x9-15-12PR | 28x9-15-14PR | ||
| Tyre size(Rear) | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | ||
| Engine | Internal Combustion Engine Model | Japan C240PKJ | Japan C240PKJ | Japan 4JG2 | |
| Internal Combustion Engine Rated Output | kw/rpm | 35.4/2500 | 44.9/2450 | 44.9/2450 | |
| Internal Combustion Engine Rated Torque | Nm/rpm | 139/1800 | 186.3/1800 | 186.3/1800 | |
| Fuel Tank Capacity | L | 60 | 60 | 60 | |
WHY CHOOSE CHL?
Becaues it's made by Anhui HELI Group No.1 in China.
Because We Treat Quality As Life!
1. All Key Parts From Japan & Germany
All key parts of CHL forklifts are from Japan, Germany, and America, especially engine, tranmission parts, sealing, bearings.
2. The Best Transmission System
In China, HELI Group is the only one who has core technology and complete transmission production line.
All key parts are imported from Japan and Germany. HELI technology has been validated by the world market for over 20 years, it can be working continually for 800 hours on average without any trouble. HELI transmission technology is at least 10 years ahead than China other suppliers, the running stability is twice.
3. Strict Parts Testing
All parts CHL forklifts use must stand two technicla tests, some are three. HELI Group has a set of very strict procedure in choosing parts suppliers. HELI Group only choose long cooperation suppliers, this largely avoid the risk of breakdown in parts supply chain.
4. Strict Fork Lift Testing
In order to make reliabble forklifts, engineers and workers do whole strict tests on every part of CHL forklifts.
5. Certificates For CHL Diesel Forklift 3.5 Ton
What's the Warranty & Service?
Warranty: 15 months or 2000 working hours (which comes first).
- With advanced SAP system, all parts No. and parts information can be tracked immediately.
- No waiting, over 20000 kinds of main spare parts are in-stock.
- All warranty parts will be sent to you by TNT/DHL without any delay and any charge.
All warranty parts will be sent to you by TNT/DHL without any delay and any charge.
In China, only CHL can do this!
FAQ
Q1. What's the transmission CHL forklift use?
CHL is with HELI Hydraulic Automatic Transmission (auto gear, powershift). This transmission is based on real TCM technology, all the key parts are from Janpan or Germany, the quality is the best. It has been tested by market more than 20 years.
Q2. What's the CHL warranty period?
15 months or 2000 working hours (which comes first).
For some parts, 24 months or 4000 hours.
Q3. How CHL do the after-sale service?
HELI Group has the best after-sale service system.
Depending on the advanced SAP system, all parts No. and parts information can be tracked immediately.
Over 20,000 kinds of main spare parts are in-stock.
Welcome your contact any time!
Which One Do You Need?
We supply full range forklift trucks -- Diesel, Gasoline, Lpg, Electric
CHL Diesel: 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton, 7.5 ton, 8 ton, 10 ton
CHL Gasoline/Lpg: 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
CHL Electric: 1 ton, 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
CHL Heavy Duty: 14 ton -- 46 ton
For Best Price, Send Email Now!
CHL forklift is with Top Level Quality and Best Service.
For more information about 3500kg Forklift Truck Diesel Forklift 3.5 Ton,
Contact Us Now!
Send Inquiry to This Supplier
