Home > Products > Warehouse equipments > Price Of Forklift 3 Ton Diesel Price Of Forklift
Price Of Forklift 3 Ton Diesel Price Of Forklift
- 8000 Unit / Units per Month
- Shanghai/Nanjing
- T/T
You May Like
Product Details
Condition | New | Place of Origin | Anhui, China | |
Brand Name | CHL | Model Number | CPCD30 | |
Type | Other, Diesel Price Of Forklift | Power Souce | Diesel Engine | |
Rated Loading Capacity | 3000kg | Max. Lifting Height | 7000mm | |
Min. Lifting Height | 3000mm | Fork Length | 1070mm | |
Fork Width | 125mm | Overall Dimensions | 3752mm*1225mm*2190mm | |
Certification | CQC CE | After-sales Service Provided | Overseas third-party support available |
Product Description

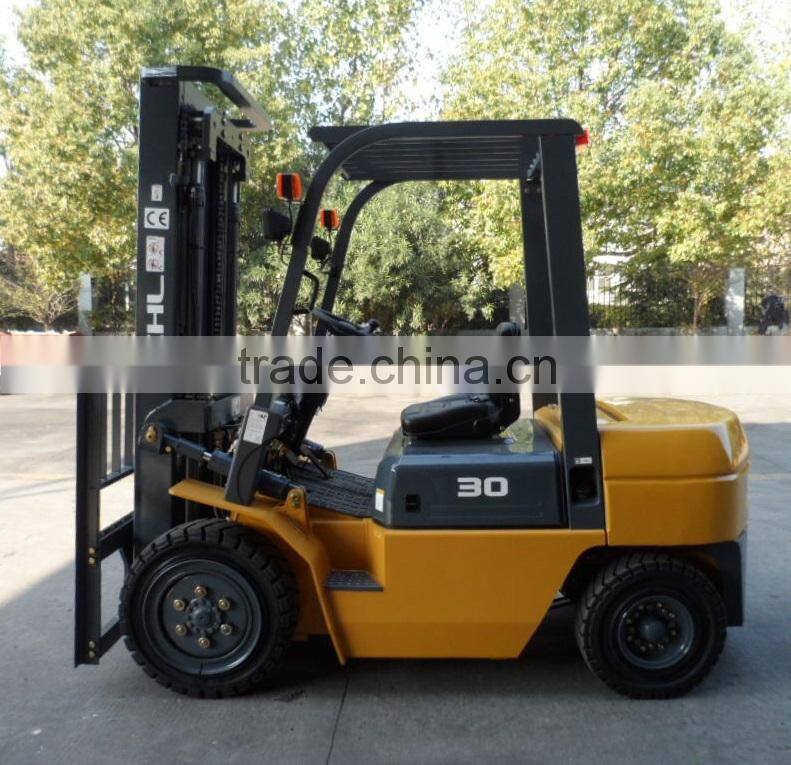

CHL Good Price Of Forklift
CHL is one brand of Anhui HELI Group, which was originally founded in 1958. For the last 22 years, HELI Group has always been the No.1 in China. In 2013, it’s ranking No.8 in the world market.
Based on HELI Group’s rich experience and advanced technology, CHL forklift trucks is with TOP lever quality in China. Last Year, HELI Group sold out more than 85000 units forklifts. Mass production largely help lower our price. And introducing the most advanced SAP-EPR & SAP-PLM system and implementing the "Lean Manufacturing" philosophy ensure CHL forklifts tough, reliable, and competitive.
For every forklift, we ensure longer warranty and complete, prompt after-sale service for you.
CHL forklift trucks, Maximize your value, your best choice.
CHL Reliable Quality Low Price Of Forklift

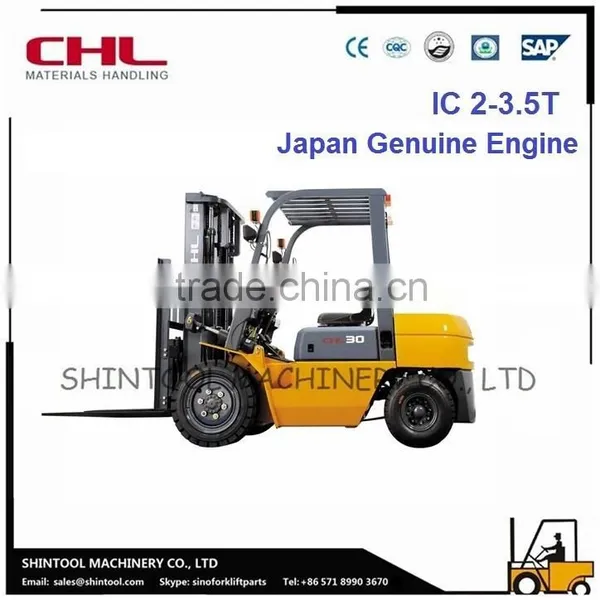

Standard Configuration Of CHL 3 Ton Price of Forklift
- Japan C240 Engine
- Advanced HELI Atutomatic Hydraulic Transmission
- Electric-hydraulic Directional Control Valve
- Duplex Mast Lifting Height 3000mm
- Pneumatic Tyres, Fork Length 1070mm
- Comfortable Seat with Armrest and Safe-belt, etc.
Fork | Tool | Transmission Oil Dipstick | Backrest |
Overhead Guard | Horn | Reversing Light | Hour Meter |
Oil Lever Gauge | Charging Indicator | Water Temperature Gauge | Oil Pressure Alarm |
Steering Indicator | Wide View Mast | Standard Seat | Front Lamp |
Rear Combined Light | Redal Pad | Overhead Guard Rain Cover | Transmission Oil Filter Element |
Backward Buzzer | Traction Pin | Hydraulic Oil Return Circuit Filer Element | Neutral Gear Safety Swith |
Control Valve | Air Inletting Device | Liftingand Tilting Operation Lever | Cable Type Packing Brake |
Hydraulic Oil Dipstick | Preheating Indicator | Whoolley Hydraulic Powered Steering | Lifting Oil Circuit Flow Regulator |
Durable Tread Tyre | Whirlwind Air Cleaner | Tilting Adjustale Steering Column | Engine Automatic Preheating System |
CHL Best Price of Forklift
Optional Choice of CHL 3ton Diesel Price of Forklift
- Japan 4JG2 Engine or China Xinchang Engine
- Lifting Height 3m-7m, Full-free Duplex or Triplex Mast
- Side Shift, Solid Tyres, Suspension Seat
- Driver’s Cabin, Customized Color, etc.
Cabin | Speedometer | Fire Extinguisher | Solid Tyre |
Rear Working Lamp | Auxiliary Pipline | Transmission Oil Temperature Gauge | Customer Made Color |
Suspension Seat | Warm Air Blower | High Air Exhaustiong Device | Tilt Cylinder Jacket |

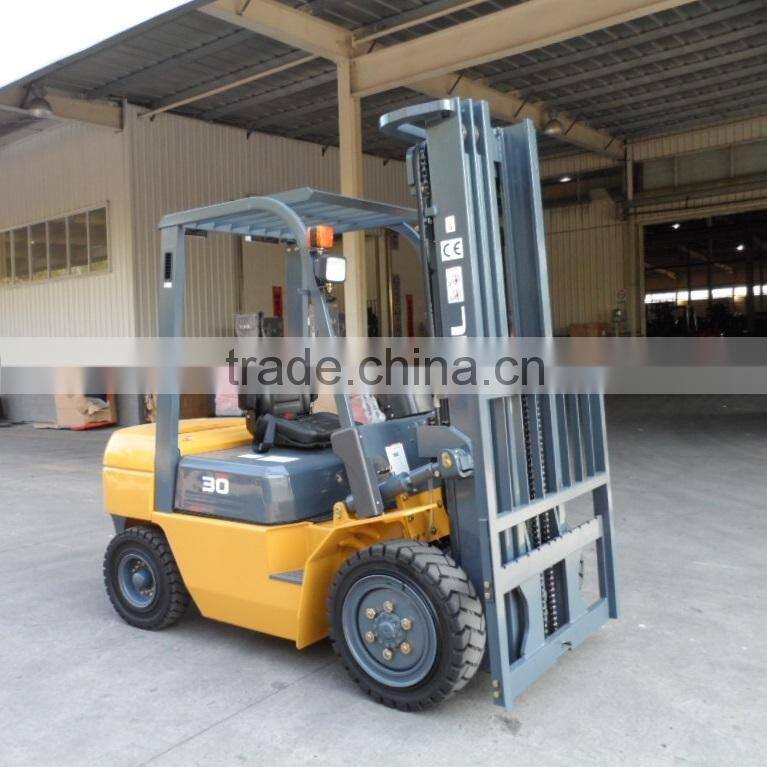

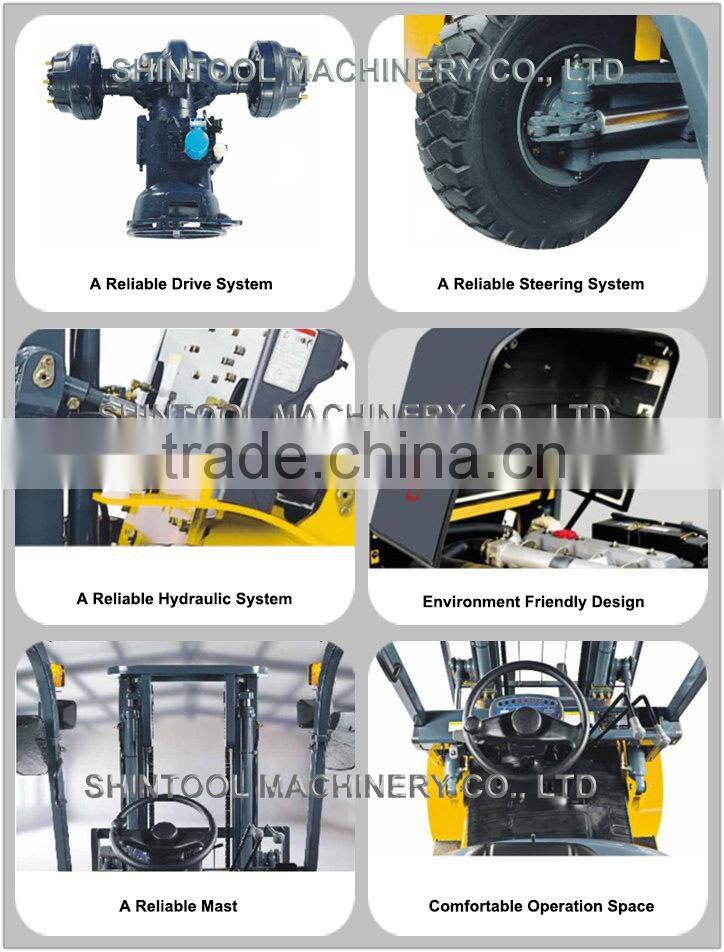

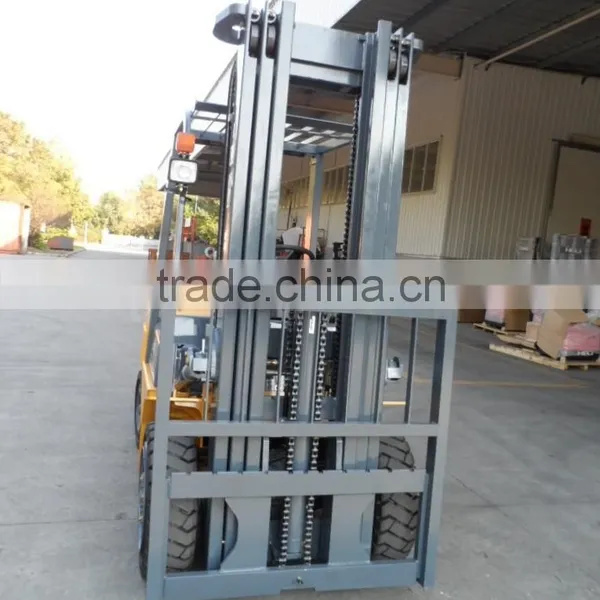

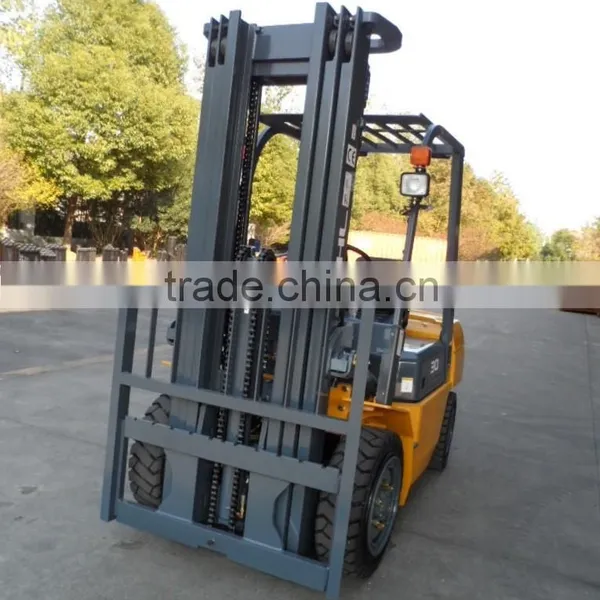

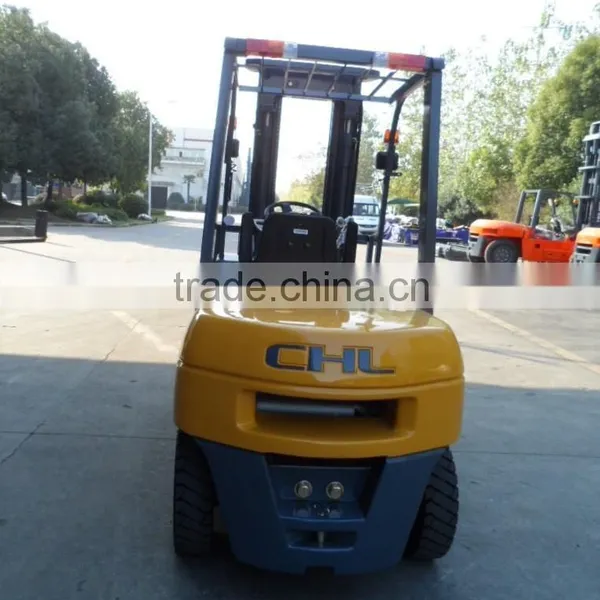

Detailed Pictures of CHL Diesel Price of Forklift
Specification of Diesel CHL Price of Forklift
General | Manufacturer | Anhui Heli Co., Ltd | |||
Model | CPCD25 | CPCD30 | CPCD35 | ||
Power Type | Diesel | ||||
Rated Capacity | kg | 2500 | 3000 | 3500 | |
Load Center | mm | 500 | 500 | 500 | |
Size | Overall max.lifting height(with backrest) | mm | 4030 | 4262 | 4262 |
Max.Lifting height | mm | 3000 | 3000 | 3000 | |
Height mast retracted(upright) | mm | 2000 | 2065 | 2180 | |
Free lift height | mm | 170 | 160 | 170 | |
Backrest height(from upper face of forks) | mm | 995 | 1227 | 1222 | |
Overall height(overhead guard) | mm | 2170 | 2190 | 2190 | |
Overall length(without forks) | mm | 3646/2576 | 3752/2682 | 3763/2693 | |
Wheel base | mm | 1600 | 1700 | 1700 | |
Min.groud clearance under mast | mm | 110 | 135 | 135 | |
Overall width | mm | 1170 | 1225 | 1225 | |
Lateral fork adjustment(Outside of fork) | mm | 1024/200 | 1060/250 | 1060/250 | |
Tread(front) | mm | 970/970 | 1000/970 | 1000/970 | |
Inside turning radius | mm | 2240 | 2400 | 2420 | |
Outside turning radius | mm | 160 | 200 | 200 | |
Min.intersecting aisle | mm | 2280 | 2380 | 2400 | |
Tilting angles(forward/backward) | 6°/12° | 6°/12° | 6°/12° | ||
Fork Size | mm | 1070*122*40 | 1070*125*45 | 1070*125*50 | |
Service Mass | kg | 3680 | 4270 | 4700 | |
Performance | Max.Traveling speeds(laden/unladen) | km/h | 18/19 | 19/20 | 19/19 |
Lifting Speeds(laden/unladen) | mm/s | 506/545 | 465/490 | 370/400 | |
Lowering Speeds(laden/unladen) | mm/s | 450/550 | 450/550 | 350/370 | |
Max.Draw-bar pull(laden/unladen) | kN | 18.3/13.3 | 20/15.8 | 20/16 | |
Max.Negotiable Gradient(laden/unladen) | % | 20/20 | 15/20 | 20/20 | |
Tyre | Wheel (Front/Rear) X=Driving Wheel | 2X/2 | 2X/2 | 2X/2 | |
Tyre(Front/Rear) | Pneumatic type | ||||
Tyre size(Front) | 7.00-12-12PR | 28x9-15-12PR | 28x9-15-14PR | ||
Tyre size(Rear) | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | ||
Engine | Internal Combustion Engine Model | Japan C240PKJ | Japan C240PKJ | Japan 4JG2 | |
Internal Combustion Engine Rated Output | kw/rpm | 35.4/2500 | 44.9/2450 | 44.9/2450 | |
Internal Combustion Engine Rated Torque | Nm/rpm | 139/1800 | 186.3/1800 | 186.3/1800 | |
Fuel Tank Capacity | L | 60 | 60 | 60 |

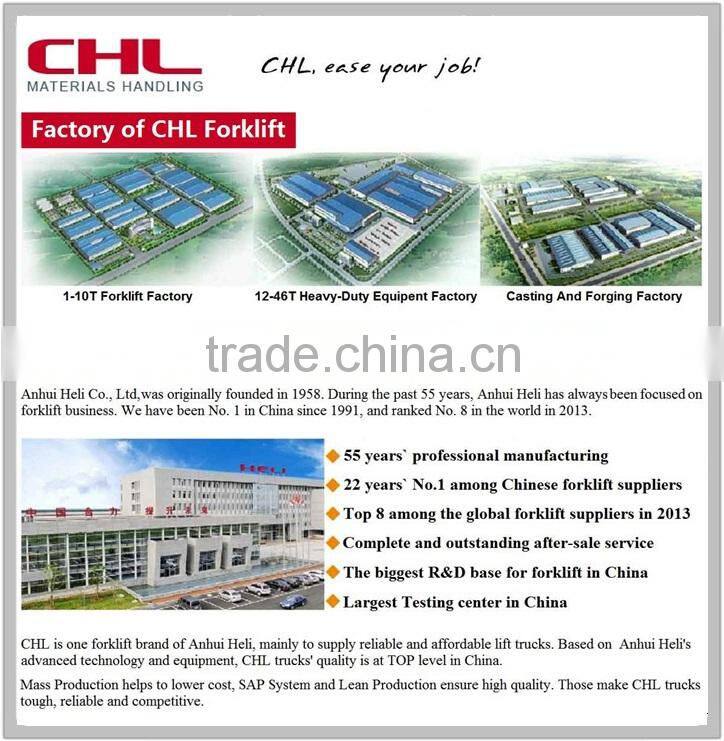

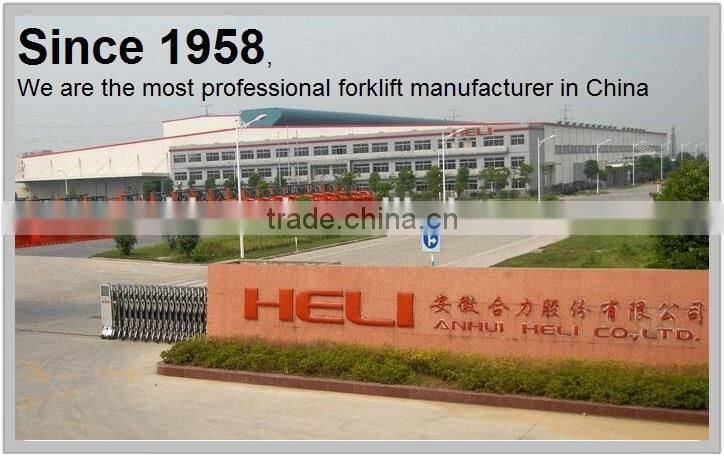

CHL Fork Lift Manufacturer -- Anhui HELI Group
Treat Quality As Life!
CHL Fork Lift Truck, You Can Trust!
1. Foreign Original Parts
All key parts of CHL forklifts are from Japan, Germany, and America, especially engine, tranmission parts, sealing, bearings.
2. Advanced Transmission Technology
In China, HELI Group is the only one who has core technology and complete transmission production line.
All key parts are imported from Japan and Germany. HELI technology has been validated by the world market for over 20 years, it can be working continually for 800 hours on average without any trouble. HELI transmission technology is at least 10 years ahead than China other suppliers, the running stability is twice.
3. Strict Parts Testing
All parts CHL forklifts use must stand two technicla tests, some are three. HELI Group has a set of very strict procedure in choosing parts suppliers. HELI Group only choose long cooperation suppliers, this largely avoid the risk of breakdown in parts supply chain.

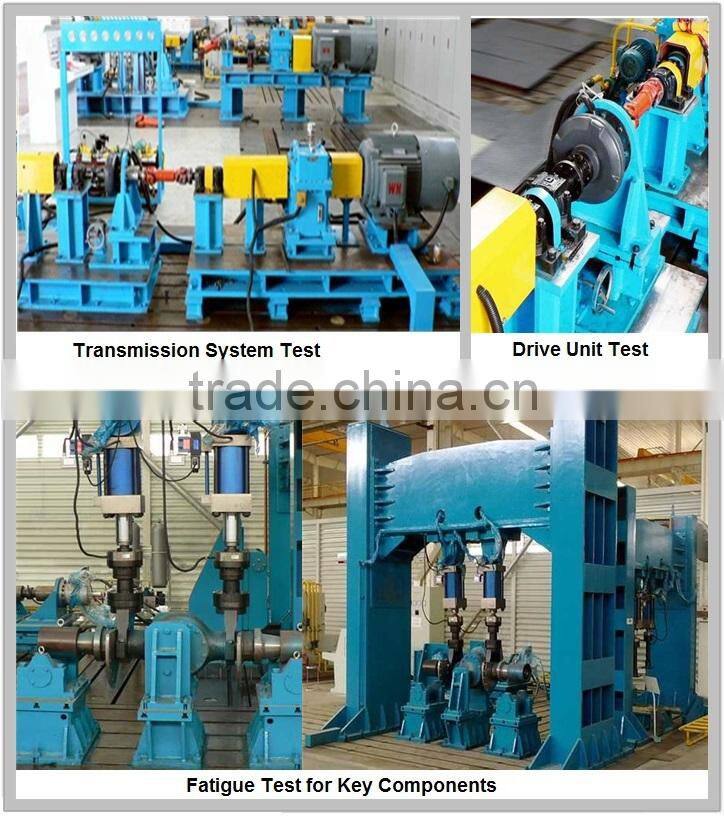

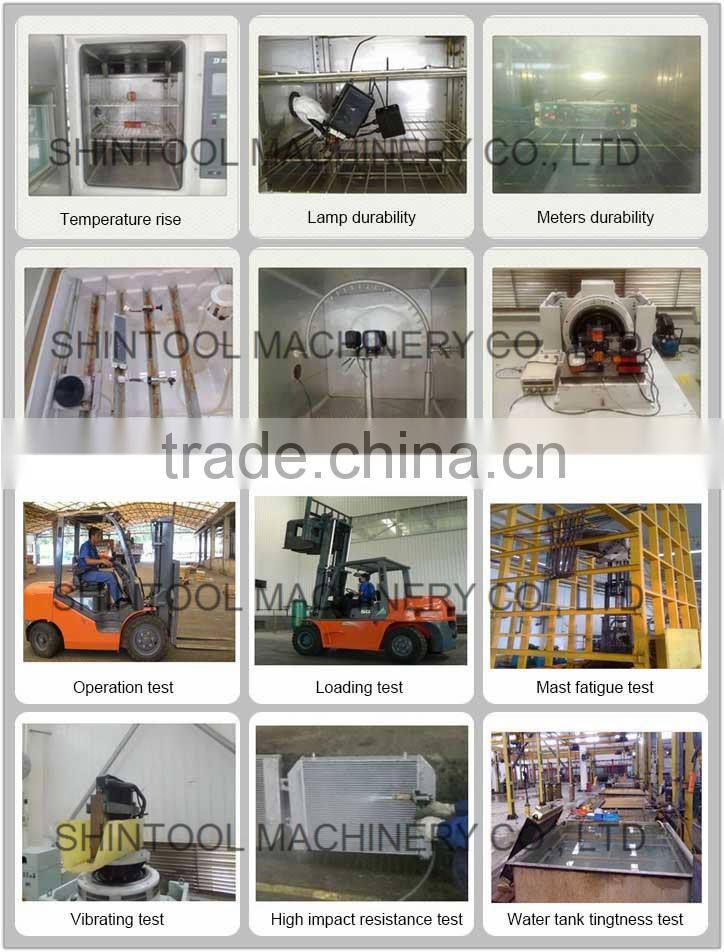

4. Strict Fork Lift Testing
In order to make reliabble forklifts, engineers and workers do whole strict tests on every part of CHL forklifts.

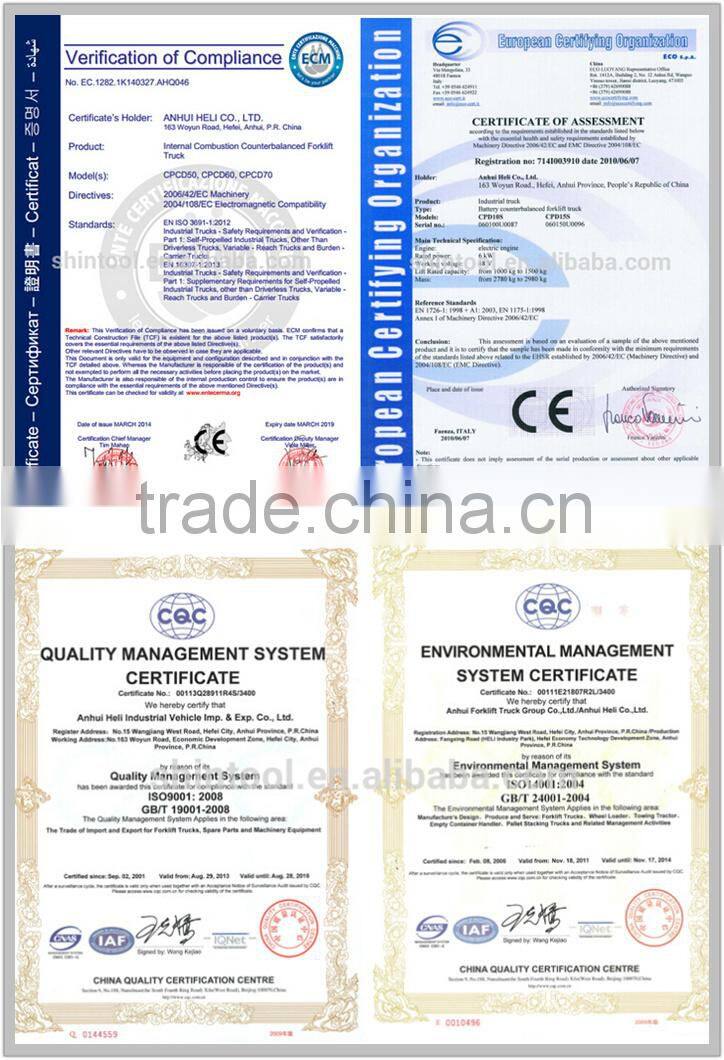

5. Certificates Of CHL
Warranty of CHL Forklift
- Warranty: 15 months or 2000 working hours (which comes first).
- Open and reliable forklift spare parts supply chain.

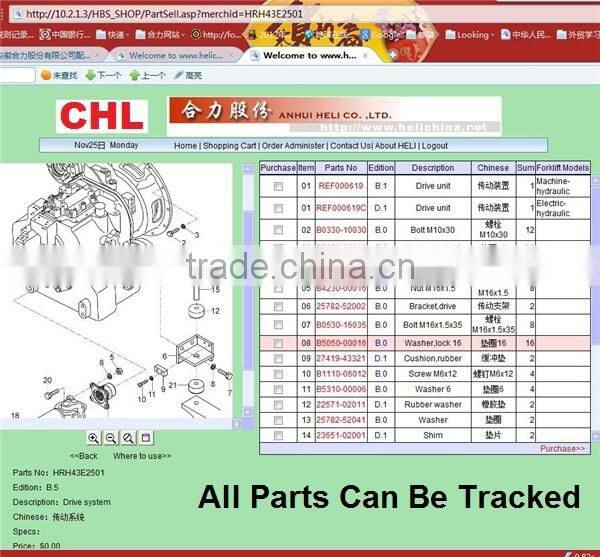

- With advanced SAP system, all parts No. and parts information can be tracked immediately.

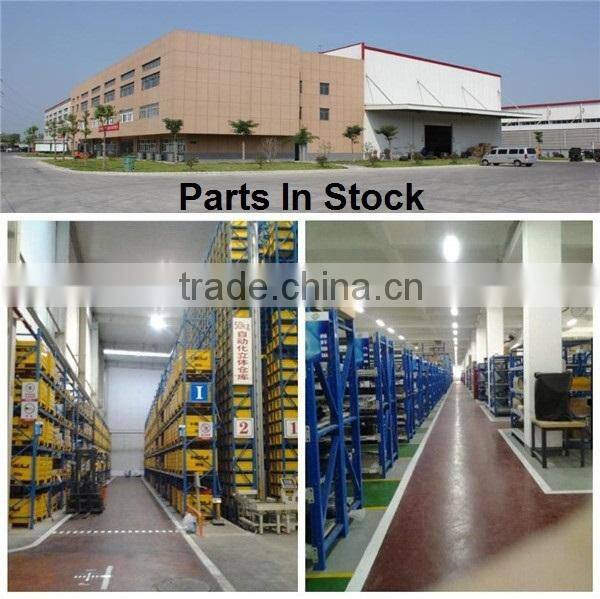

Over 20000 kinds of main spare parts are in-stock.
All warranty parts will be sent immediately by TNT/DHL without charge.
We supply the best after sale service for you among China suppliers.
FAQ
1. What's the transmission CHL forklift use?
CHL is with HELI Hydraulic Automatic Transmission (auto gear, powershift). This transmission is based on real TCM technology, all the key parts are from Janpan or Germany, the quality is the best. It has been tested by market more than 20 years.
2. What's the CHL warranty period?
15 months or 2000 working hours (which comes first).
3. How CHL do the after-sale service?
HELI Group has the best after-sale service system.
Depending on the advanced SAP system, all parts No. and parts information can be tracked immediately.
Over 20,000 kinds of main spare parts are in-stock.
Welcome your contact any time!
CHL Forklift Truck Range
We supply full range fork lift trucks -- Diesel, Gasoline, Lpg, Electric
Diesel: 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton, 7.5 ton, 8 ton, 10 ton
Gasoline/Lpg: 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
Electric: 1.5 ton, 1.8 ton, 2 ton, 2.5 ton, 3 ton, 3.5 ton, 4 ton, 4.5 ton, 5 ton, 6 ton, 7 ton
Heavy Duty: 12 ton -- 46 ton
We only supply fork lifts with Top Level Quality and Best After-sale Service.
For latest Price of Forklift CHL, Welcome your contact any time.
