Help Center2.0 Ton Semi Electric Straddle Stacker
Related Products
-
1.0 Ton Manual StackerUS$ 500 - 600MOQ: 1 Unit -
1.5 Ton Manual StackerUS$ 500 - 600MOQ: 1 Unit
-
1.4T Full Electric Pallet Stackers With 2-stage STDUS$ 4,000 - 5,000MOQ: 1 Unit
-
1.6T Electric Pallet Stacker With Full Free 3-stage MastUS$ 4,000 - 5,000MOQ: 1 Unit
-
1.2 Ton Electric Pallet Stacker With Full Free 2-stage MastUS$ 4,000 - 5,000MOQ: 1 Unit
Specifications
semi electric straddle stacker1. Load capacity:2000kg
2. Max. lift height:3000mm
3. Fork Lowered height:90mm

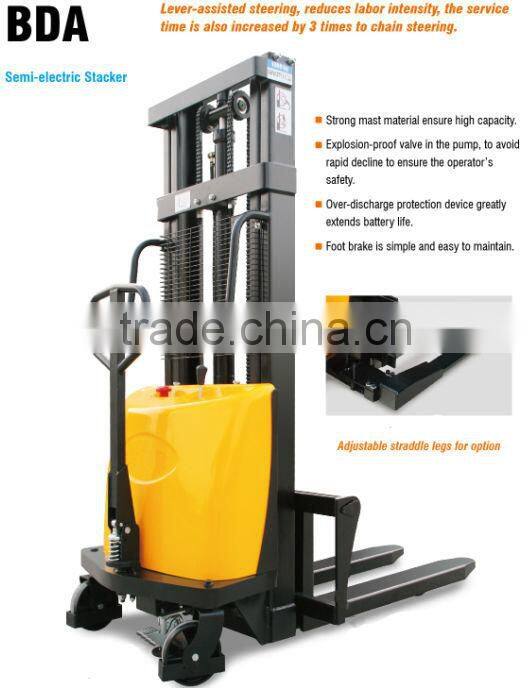

Advantages
1. Strong mast material ensure high capacity.
2. Explosion-proof valve in the pump, to avoid rapid decline to ensure the operator's safety.
3. Over-discharge protection device greatly extends battery life.
4. Foot brake is simple and easy to maintain.Adjustable straddle legs for option

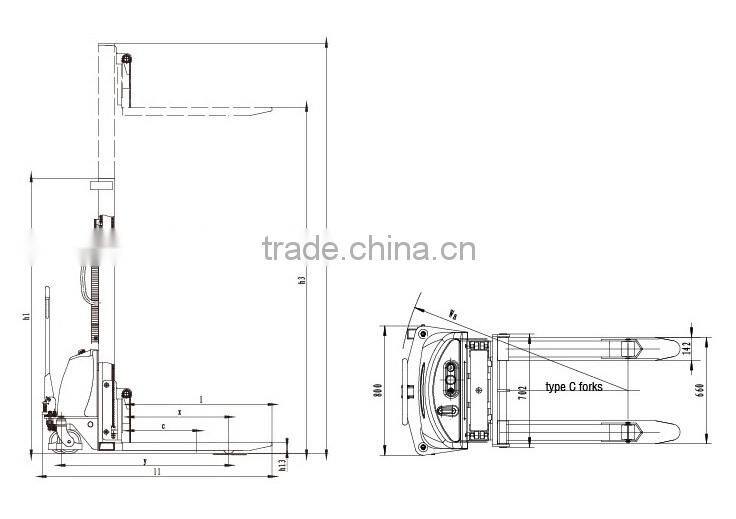

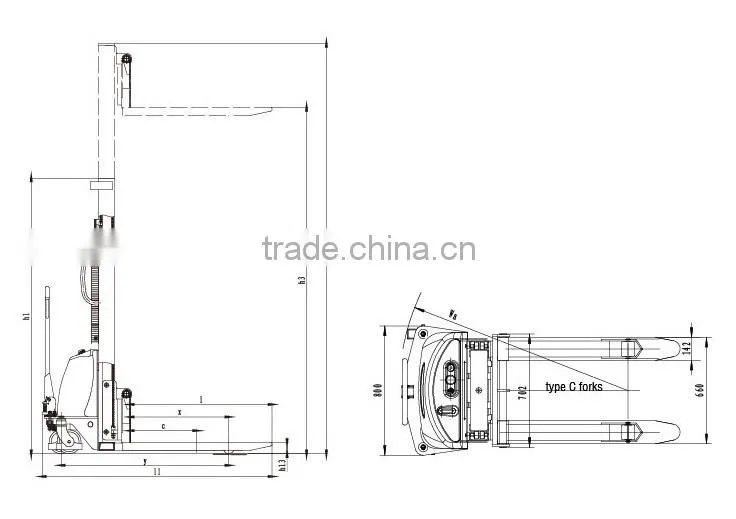

Specifications
| Model | BDA | |
| Driving style | Manual | |
| Load capacity | Q(kg) | 2000 |
| Load center | C(mm) | 500 |
| Net weight | kg | 480 |
| Wheel | nylon | |
| Tyre size, front | mm | Φ180×50 |
| Tyre size, rear | mm | Φ80×93 |
| Wheel, quantity | mm | 2/2 |
| Lowered mast height | h1(mm) | 2085/1585/1835/2085/2235/2335 |
| Lifting height | h3(mm) | 1600/2000/2500/3000/3300/3500 |
| Overall height | h4(mm) | 2085/2410/2910/3410/3710/3910 |
| Fork lowered height | h13(mm) | 90 |
| Overall length | l1(mm) | 1735 |
| Overall width | b1(mm) | 800 |
| Fork length | l(mm) | 1070 |
| Ground clearance | m2(mm) | 30 |
| Min turning radius | Wa(mm) | 1350 |
| Lifting speed with/without load | m/s | 0.08/0.1 |
| Falling speed with/without load | m/s | 0.15/0.12 |
| Battery voltage/rated capacity | V/Ah | 12/135 |
| Battery Size | mm | 505×220×230 |
Packing & Shipping
Each set of product would be packed in standard way. New, clean and protective.
Our Services
At Shintool machinery, we supply ONE-STOP-SHOP solution service for warehouse equipments and Chinese brand forklift
parts.
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business with us and also any other Chinese suppliers, we can be the position of supplying ONE-STOP-SHOP export service. Our nearest export
port is Shanghai, and Ningbo.We can be the main exporter who is in charger of connecting other suppliers, organizing the
shipment, LCL load, one B/L supply and other export issue service.
Warranty details
SHINTOOL provide the warranty period to QDA Electric Stacker, for a period of 1year after the date of Bill of Lading.
During the warranty period SHINTOOL guarantee to supply free replacement parts to any defective of SHINTOOL product
which proved to be defective in material or workmanship under proper operation.
After the period of warranty, the customer can send the required parts no.s which shows on the parts book, SHINTOOL will send
quotation for the new replacement parts. Technical questions are welcome to SHINTOOL, SHINTOOL will reply in 24 hours.
