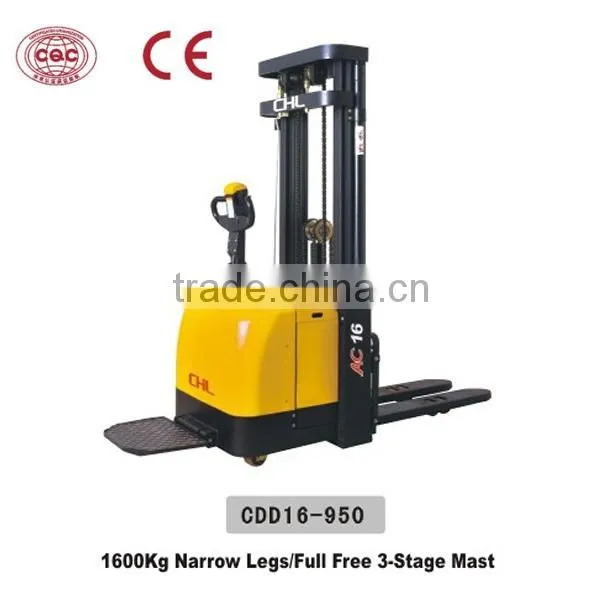

Help Center1.6T Electric Pallet Stacker With Full Free 3-stage Mast
Related Products
-
1.2 Ton Electric Pallet Stacker With Full Free 2-stage MastUS$ 4,000 - 5,000MOQ: 1 Unit -
1.0 Ton Hand Stacker of Straddle LegsUS$ 500 - 600MOQ: 1 Unit
-
2.0 Ton Manual StackerUS$ 500 - 600MOQ: 1 Unit
-
1.2T Electric Pallet Stacker With 2-stage STD.US$ 4,000 - 5,000MOQ: 1 Unit
-
1.2T Electric Pallet Stacker With 2-stage STD.US$ 4,000 - 5,000MOQ: 1 Unit
Specifications
electric pallet stackerAC motor with CURTIS 1230 controller
with CQC,CE certificate
Stacker Advantages
- Powerful
1.Capacity 1.2T, meeting demands in goods transit and lift.
2.AC drive system offers quick response, accurate cotrol and longer service time.
3.Easy-touch emergency plug mounted at up-right side in case of emergency happens.
4.Anti-roll back available as standard to prevent uncontrolled travel speed or roll back on ramps happening in working.
5.The stacker can handling two pallets one time, efficient .
- Delicacy
1.Brief, Elegant design of appearance, with colors optional.

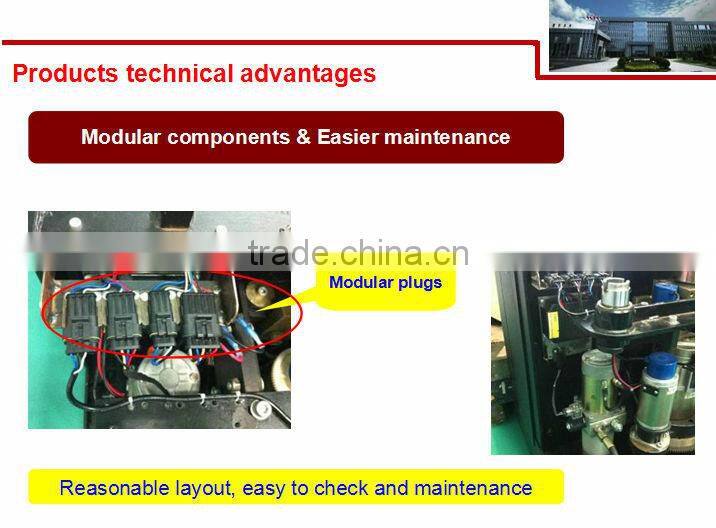

2.Delicacy inner and outer structure design with excellent arrangement.
3.World-class hydraulic power pack,with low noise, few vibration and excellent leak tightness.
4.Special design of fork, with stiffener, be more firm .
5.Sideway battery design for easy battery replacement.

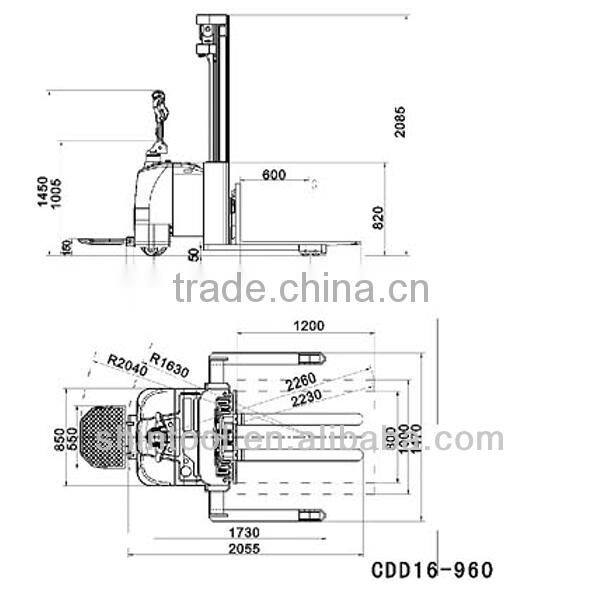

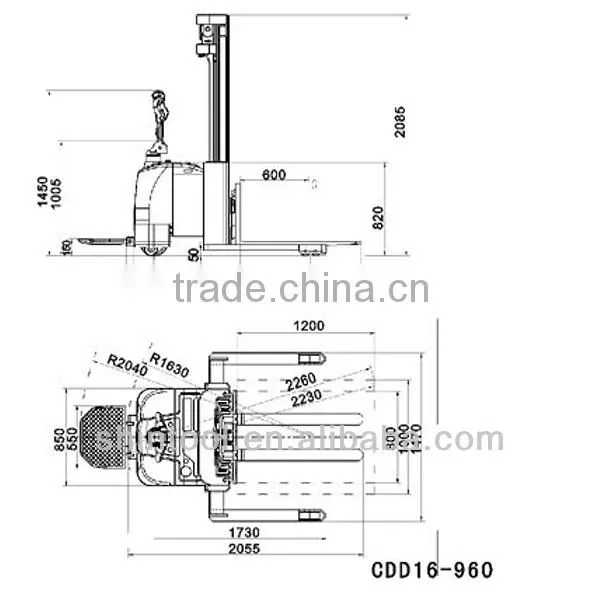

Stacker Specifications
| Feature | ||

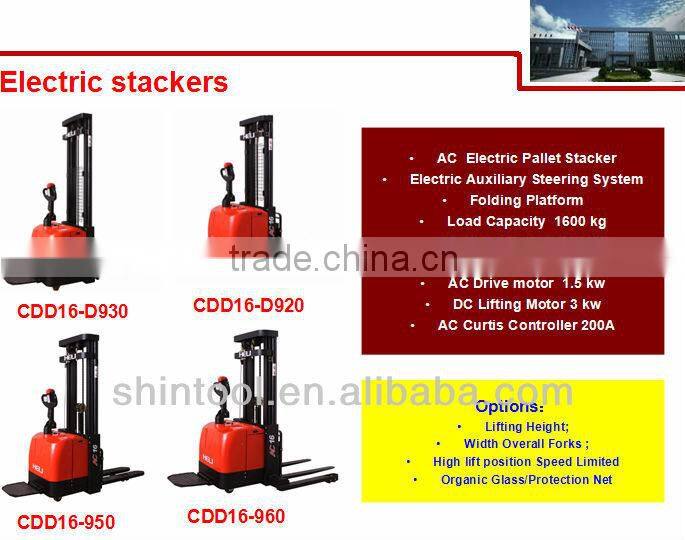

| Model | CDD16 | |
| Configuration No. | 950 | |
| Type | Narrow legs | |
| Mast type | Full free 2-stage | |
| Load capacity | kg | 1600 |
| Load center | mm | 600 |
| Wheel base | mm | 1375 |
| Operating type | Rider / Pedestrian | |
| Wheel type | PU | |
| Wheel quantity | Driving wheel1/Balance wheel2/Load wheel4 | |
| Standard lift height | mm | 4500 |
| Lowered fork height | mm | 85 |
| Fork size(Length/width/thickness) | mm | 1150/185/55 |
| Overall length | mm | 2105/2525 |
| Overall width | mm | 957 |
| Max. extend height | mm | 5000 |
| Mast lowered height | mm | 2085 |
| Min. Turning redius | mm | 1630/2040 |
| Min. Aisle width for pallets 800x1200 | mm | 2230/2625 |
| Min. Asile width for pallets 1000x1200 | mm | 2260/2650 |
| Min. ground clearance | mm | 30 |

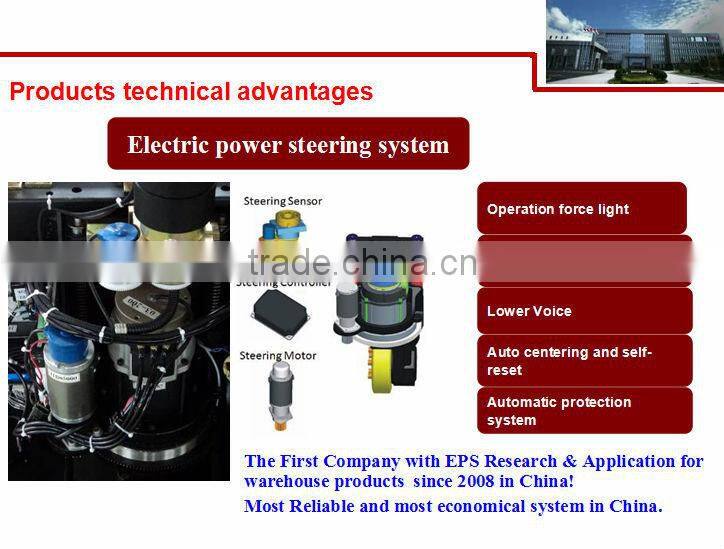

| Motor | KW | Drive motor AC 1.5 / Lift motor DC3 / Steering motor DC 0.15 |
| Battery voltage | V | 24 |
| Battery capacity | Ah | 280 |
| Brake | Electromagnetic / Regenetative | |
| Controller | CURTIS 1230 | |
| Service weight with Battery | Kg | 1578 |
Our Services
At Shintool machinery, we supply ONE-STOP-SHOP solution service for warehouse equipments and Chinese brand forklift
parts.
Depends on 7 years experience and profession on the Chinese export business,any customer who have the business with us and also any other Chinese suppliers.we can be the position of supplying ONE-STOP-SHOP export service.Our nearest export port is Shanghai and Ningbo.
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business with usand also any other Chinese suppliers,We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment,LCL load,one B/L supply and other export issue service.

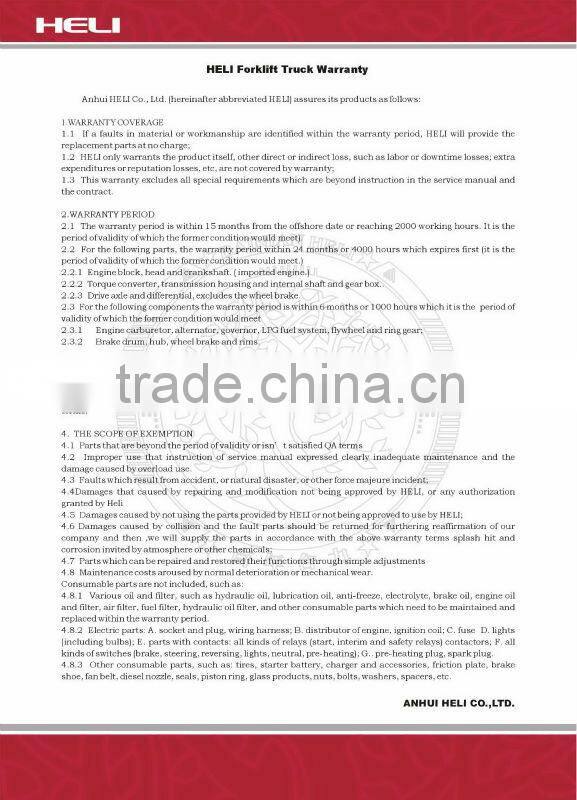

Stacker Warranty details
